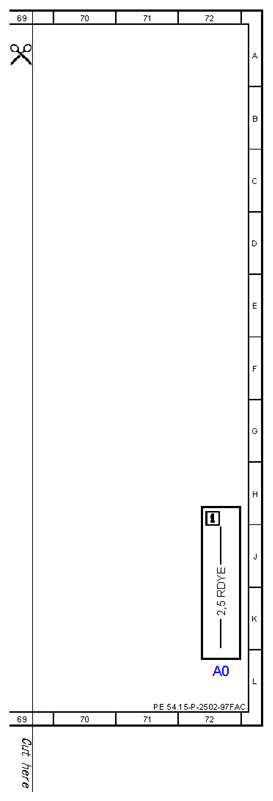

| A0 |
Color code key |
72L |
| A32n1 |
Blower regulator |
27L |
| A91/1 |
Electrohydraulic power steering |
59L |
| Code 580 |
Automatic air conditioning |
24K |
| Code 581 |
Comfort automatic air conditioning |
24L |
| F32 |
Front electrical prefuse box |
4A |
| F32 |
Front electrical prefuse box |
11A |
| F32 |
Front electrical prefuse box |
20A |
| F32 |
Front electrical prefuse box |
28A |
| F32 |
Front electrical prefuse box |
36A |
| F32 |
Front electrical prefuse box |
52A |
| F32 |
Front electrical prefuse box |
44A |
| F32 |
Front electrical prefuse box |
60A |
| F32f150 |
Prefuse 150 |
1C |
| F32f151 |
Prefuse 151 |
29C |
| F32f152 |
Prefuse 152 |
31C |
| F32f153 |
Prefuse 153 |
32C |
| F32f154 |
Prefuse 154 |
62C |
| F32f155 |
Prefuse 155 |
42C |
| F32f156 |
Prefuse 156 |
33C |
| F32f157 |
Prefuse 157 |
59C |
| F32f158 |
Prefuse 158 |
12C |
| F32f159 |
Prefuse 159 |
41C |
| F32f160 |
Prefuse 160 |
26C |
| F32f161 |
Prefuse 161 |
18C |
| F32f162 |
Prefuse 162 |
20C |
| F32k1 |
Decoupling relay |
4D |
| F32k2 |
Quiescent current cutout relay |
14A |
| F34 |
Interior fuse box |
22L |
| F97 |
Rear SAM control unit with fuse and relay module circuit 30 fuse |
50L |
| G1 |
On-board electrical system battery |
2J |
| G2 |
Alternator |
2J |
| K114 |
ECO start/stop function additional battery relay |
46L |
| K57/2 |
Additional battery relay |
37L |
| K57/2 |
Additional battery relay |
41L |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
29L |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N10/1 |
Front SAM control unit with fuse and relay module |
32L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
13L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
55L |
| N26/9 |
Special-purpose vehicle multifunction control unit |
17L |
| N68 |
Electrical power steering control unit |
59L |
| R22/3 |
PTC heater booster |
63L |
| U1018 |
Valid for gasoline engine 276 |
1K |
| U1092 |
Not valid for 204.9 |
20F |
| U1092 |
Not valid for 204.9 |
51H |
| U1092 |
Not valid for 204.9 |
3C |
| U1092 |
Not valid for 204.9 |
34H |
| U1092 |
Not valid for 204.9 |
39H |
| U118 |
Valid for front battery |
32G |
| U12 |
Valid for left-hand drive vehicles |
9F |
| U13 |
Valid for right-hand drive vehicles |
9F |
| U169 |
Valid for gasoline engine 271 DE |
1K |
| U24 |
Valid for manual transmission |
7C |
| U24 |
Valid for manual transmission |
3C |
| U24 |
Valid for manual transmission |
34H |
| U25 |
Valid for automatic transmission |
9C |
| U25 |
Valid for automatic transmission |
39H |
| U250 |
Valid for electric power steering |
57F |
| U362 |
Valid for gasoline engine 274 |
1K |
| U412 |
Valid for electrohydraulic power steering |
57F |
| U520 |
Valid for taxi |
16F |
| U59 |
Valid for model 204.9 |
49H |
| U59 |
Valid for model 204.9 |
7C |
| U59 |
Valid for model 204.9 |
44H |
| U74 |
Valid for diesel engines |
61F |
| U880 |
Valid for diesel engine 642 |
1J |
| U948 |
Valid for diesel engine 651 |
1K |
| V19 |
ECO start/stop function diode |
10D |
| V19 |
ECO start/stop function diode |
8D |
| W16/3 |
Left major assembly compartment ground point |
10L |
| W16/4 |
Right wheelhouse ground point |
10L |
| X18/40 |
Instrument panel harness and vehicle floor electrical connector |
26H |
| X4/37 |
Terminal block (circuit 30) |
41G |
| X85/8 |
PTC heater booster electrical connector |
62H |
| Z7 |
Tml. 30 connector sleeve |
18H |
