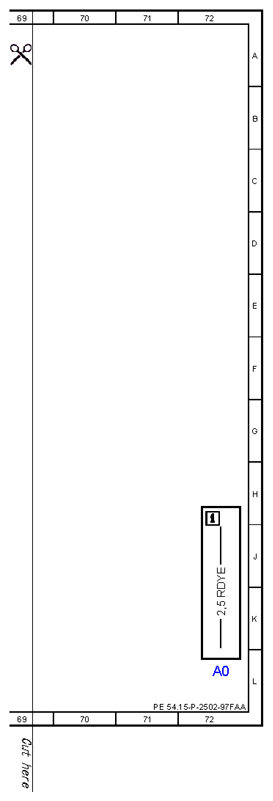

| A0 |
Color code key |
72L |
| A32 |
AC housing |
17L |
| A32x1 |
Air conditioner housing electrical connector |
18H |
| A32z1 |
Air conditioner housing connector sleeve |
18J |
| Code 580 |
Automatic air conditioning |
15E |
| Code 581 |
Comfort automatic air conditioning |
15E |

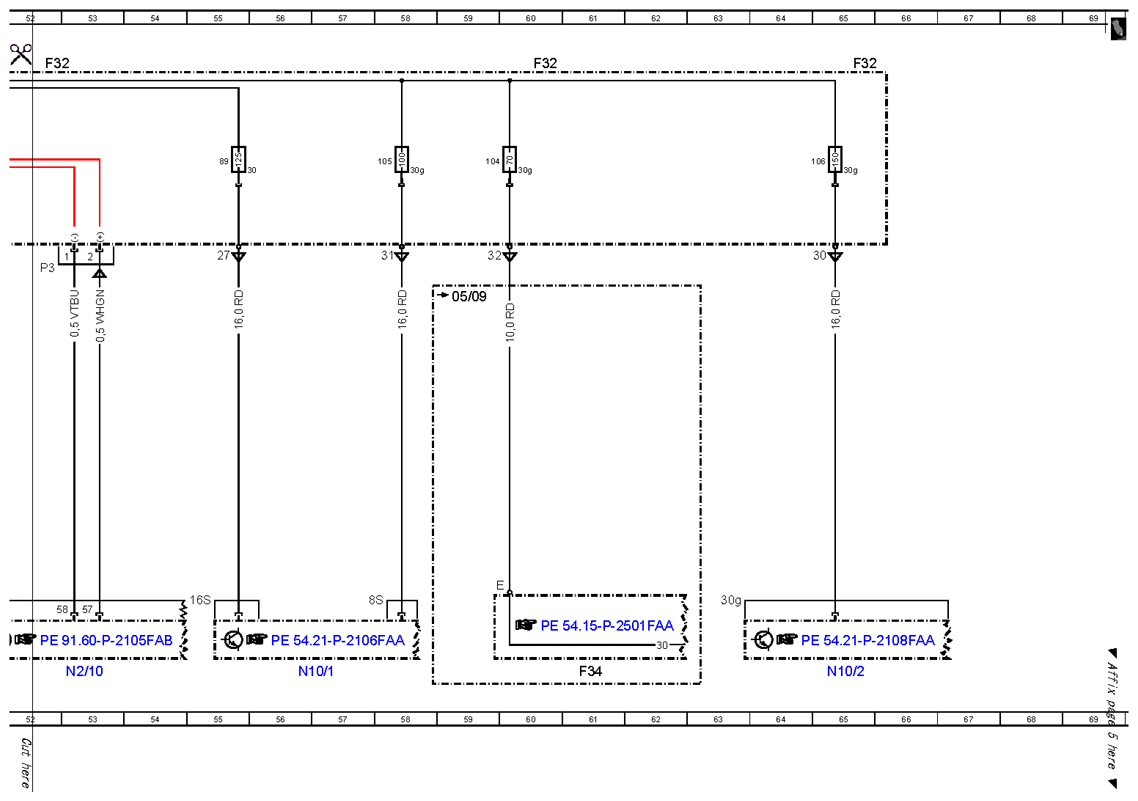

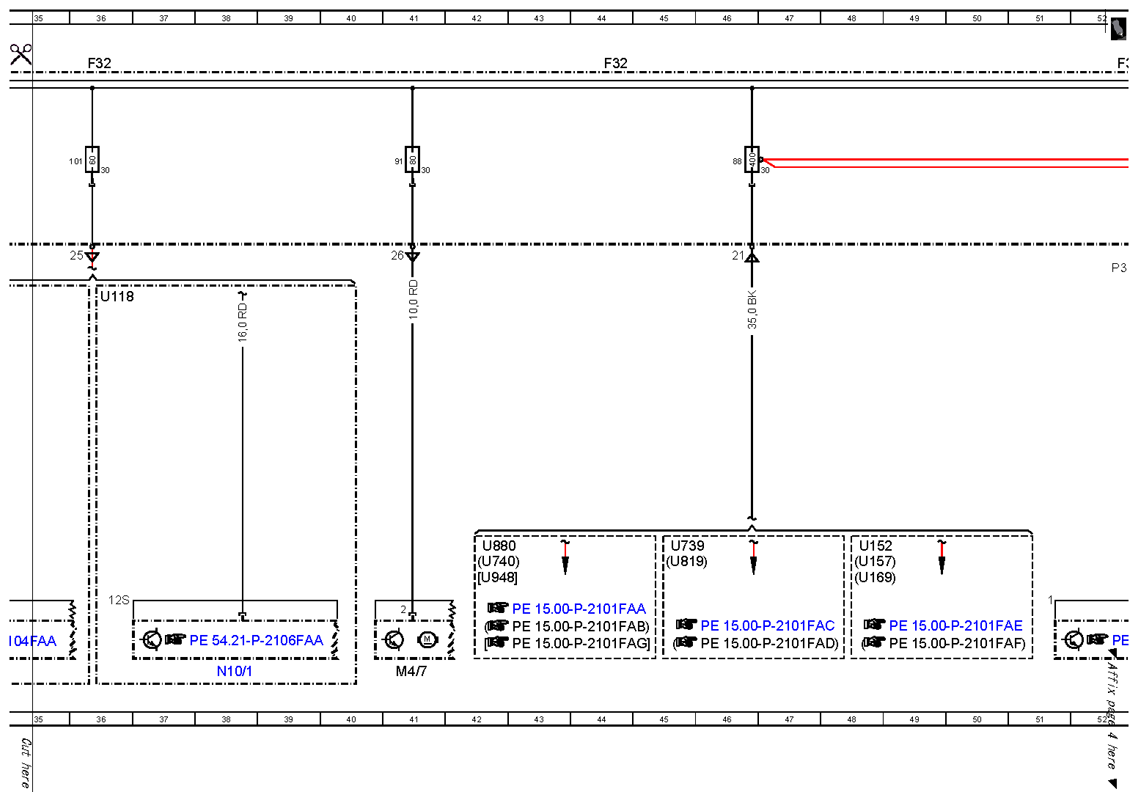

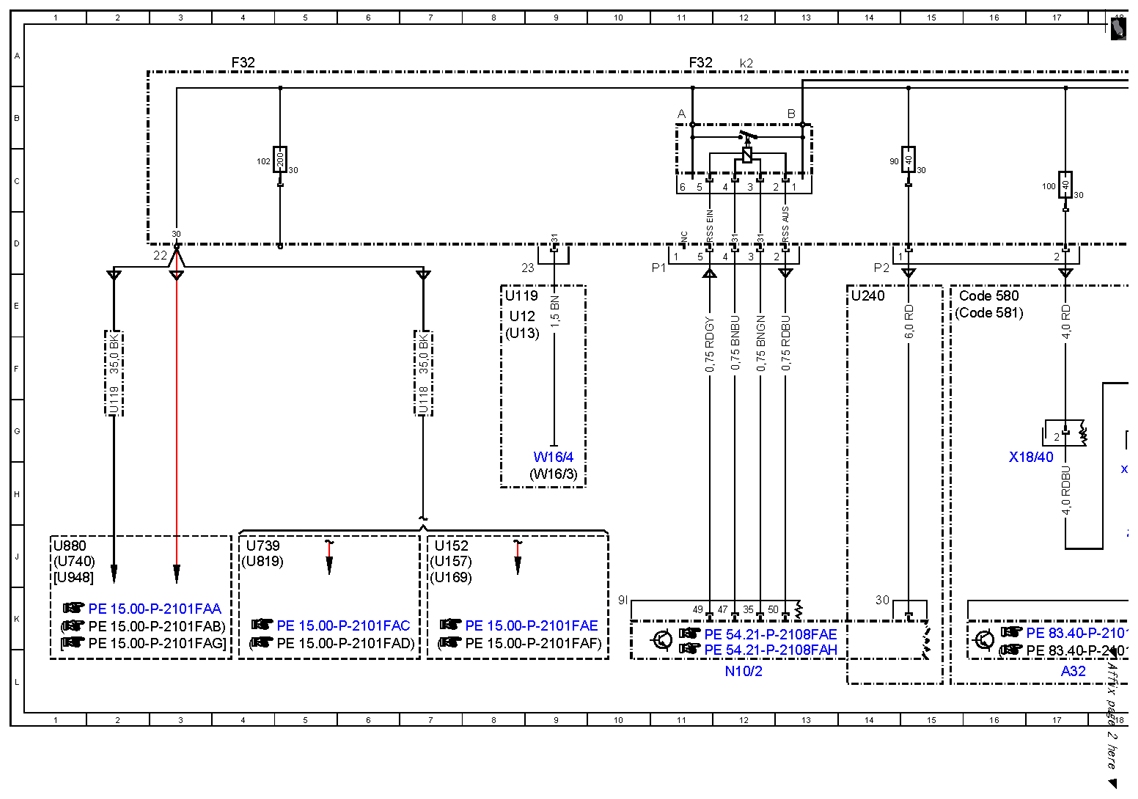

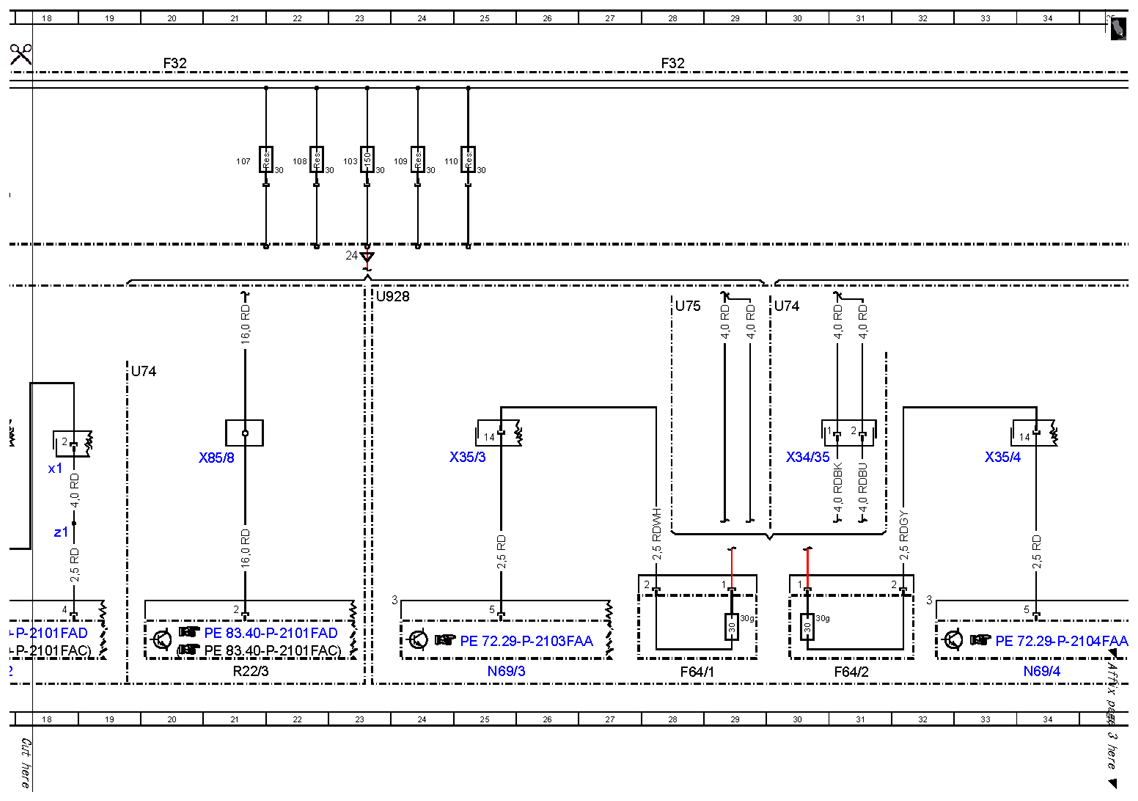

| F32 |
Front electrical prefuse box |
4A |
| F32 |
Front electrical prefuse box |
11A |
| F32 |
Front electrical prefuse box |
20A |
| F32 |
Front electrical prefuse box |
28A |
| F32 |
Front electrical prefuse box |
36A |
| F32 |
Front electrical prefuse box |
44A |
| F32 |
Front electrical prefuse box |
52A |
| F32 |
Front electrical prefuse box |
65A |
| F32 |
Front electrical prefuse box |
60A |
| F32f100 |
Prefuse 100 |
17C |
| F32f101 |
Prefuse 101 |
36C |
| F32f102 |
Prefuse 102 |
4C |
| F32f103 |
Prefuse 103 |
23C |
| F32f104 |
Prefuse 104 |
59C |
| F32f105 |
Prefuse 105 |
58C |
| F32f106 |
Prefuse 106 |
65C |
| F32f107 |
Prefuse 107 |
21C |
| F32f108 |
Prefuse 108 |
22C |
| F32f109 |
Prefuse 109 |
24C |
| F32f110 |
Prefuse 110 |
24C |
| F32f88 |
Pyrofuse 88 |
46C |
| F32f89 |
Prefuse 89 |
55C |
| F32f90 |
Prefuse 90 |
14C |
| F32f91 |
Prefuse 91 |
41C |
| F32k2 |
Quiescent current cutout relay |
12A |
| F34 |
Interior fuse box |
61L |
| F64/1 |
Left rear door control unit fuse carrier |
28L |
| F64/2 |
Right rear door control unit fuse carrier |
31L |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
41L |
| N10/1 |
Front SAM control unit with fuse and relay module |
38L |
| N10/1 |
Front SAM control unit with fuse and relay module |
56L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
65L |
| N2/10 |
Supplemental restraint system control unit |
53L |
| N69/3 |
Left rear door control unit |
25L |
| N69/4 |
Right rear door control unit |
34L |
| R22/3 |
PTC heater booster |
21L |
| U118 |
Valid for front battery |
7G |
| U118 |
Valid for front battery |
36E |
| U119 |
Valid for rear battery |
2G |
| U119 |
Valid for rear battery |
8E |
| U12 |
Valid for left-hand drive vehicles |
8E |
| U13 |
Valid for right-hand drive vehicles |
8F |
| U152 |
Valid for gasoline engine 156 |
7J |
| U152 |
Valid for gasoline engine 156 |
48J |
| U157 |
Valid for combustion engine 272 DE |
7J |
| U157 |
Valid for combustion engine 272 DE |
48J |
| U169 |
Valid for gasoline engine 271 DE |
7J |
| U169 |
Valid for gasoline engine 271 DE |
48J |
| U240 |
Valid for all except ECO start/stop function |
14E |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
4J |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
45J |
| U74 |
Valid for diesel engines |
19F |
| U74 |
Valid for diesel engines |
30E |
| U740 |
Valid for diesel engine 646 |
1J |
| U740 |
Valid for diesel engine 646 |
42J |
| U75 |
Valid for gasoline engines |
28E |
| U819 |
Valid for gasoline engine 272 |
4J |
| U819 |
Valid for gasoline engine 272 |
45J |
| U880 |
Valid for diesel engine 642 |
1J |
| U880 |
Valid for diesel engine 642 |
42J |
| U928 |
Valid for England |
23E |
| U948 |
Valid for diesel engine 651 |
1J |
| U948 |
Valid for diesel engine 651 |
42J |
| W16/3 |
Left major assembly compartment ground point |
9H |
| W16/4 |
Right wheelhouse ground point |
9H |
| X18/40 |
Instrument panel harness and vehicle floor electrical connector |
17H |
| X34/35 |
Rear door control unit feed-in electrical connector |
30H |
| X35/3 |
Left rear door electrical connector |
25H |
| X35/4 |
Right rear door electrical connector |
33H |
| X85/8 |
PTC heater booster electrical connector |
21H |
