Wiring diagram of front SAM control unit with fuse and relay module (N10/1) - PE54.21-P-2106-97FAB

Code: Designation: Position:
A0 Color code key 72A
A1 Instrument cluster 70L
Code 580 Automatic air conditioning 61H
Code 581 Comfort automatic air conditioning 61J
Code 990 Mercedes-Benz AMG vehicles 43H
Code B03 ECO start/stop function 1K
Code P98 Black Series 58G
E1/3 Left daytime running lamps headlamp 50L
E2/3 Right daytime running lamps headlamp 51L
E5/1 Left fog lamp 41L
E5/1 Left fog lamp 44L
E5/1x1 Left front fog lamp electrical connector 45K
E5/2 Right fog lamp 42L
E5/2 Right fog lamp 47L
E5/2x1 Right front fog lamp electrical connector 48K
K36/3 Rear axle gear coolant circuit relay 60L
LIN 1 Instrument panel LIN 31F
N10/1 Front SAM control unit with fuse and relay module 3A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 45A
N10/1 Front SAM control unit with fuse and relay module 54A
N10/1 Front SAM control unit with fuse and relay module 61A
N10/1 Front SAM control unit with fuse and relay module 68A
N10/1f18 Fuse 18 32A
N10/1f19 Fuse 19 35A
N10/1f28 Fuse 28 70A
N10/1f29 Fuse 29 27A
N10/1f30 Fuse 30 21A
N10/1f5 Fuse 5 59A
N10/1f9 Fuse 9 53A
N10/1kJ Circuit 15 relay 23A
N10/2 Rear SAM control unit with fuse and relay module 56L
N26/5 Electric steering lock control unit 38L
N73 Electronic ignition switch control unit 35L
S1 Exterior lights switch 67L
U107 Valid for socket in glove compartment 52G
U12 Valid for left-hand drive vehicles 40G
U12 Valid for left-hand drive vehicles 53G
U13 Valid for right-hand drive vehicles 40G
U13 Valid for right-hand drive vehicles 53H
U152 Valid for gasoline engine 156 58G
U19 Valid for standard equipment 40H
U19 Valid for standard equipment 54G
U240 Valid for all except ECO start/stop function 1J
U255 Valid for front fog lamps 40G
U501 Valid for xenon headlamps 7J
U516 Valid for emissions standard EURO 4 28G
U57 Valid for model 204.2 7K
U57 Valid for model 204.2 14L
U57 Valid for model 204.2 16H
U57 Valid for model 204.2 19H
U58 Valid for model 204.0 7K
U58 Valid for model 204.0 14L
U58 Valid for model 204.0 16H
U58 Valid for model 204.0 19H
U59 Valid for model 204.9 7L
U60 Valid for model 204.3 15L
U60 Valid for model 204.3 16G
U60 Valid for model 204.3 19G
U617 Interior humidity/temperature sensor 61G
U679 Valid for version without xenon headlamps 20J
U880 Valid for diesel engine 642 28G
U910 Valid for Blind Spot Assist 4J
U971 Valid for daytime running lamps 49G
W15/5 Left front footwell ground point 54H
W15/7 Right front footwell ground point 54H
W16/4 Right wheelhouse ground point 46G
W16/4 Right wheelhouse ground point 51H
W9 Left front ground point (at lamp unit) 45G
W9 Left front ground point (at lamp unit) 50H
X18 Vehicle interior and harness for taillamp electrical connector 52H
X190 Instrument panel and electric steering lock electrical connector 38H
X26 Interior and engine wiring harness electrical connector 29J
X58/31 Glove box socket 53L
Z3 Tml. 15 connector sleeve 29L

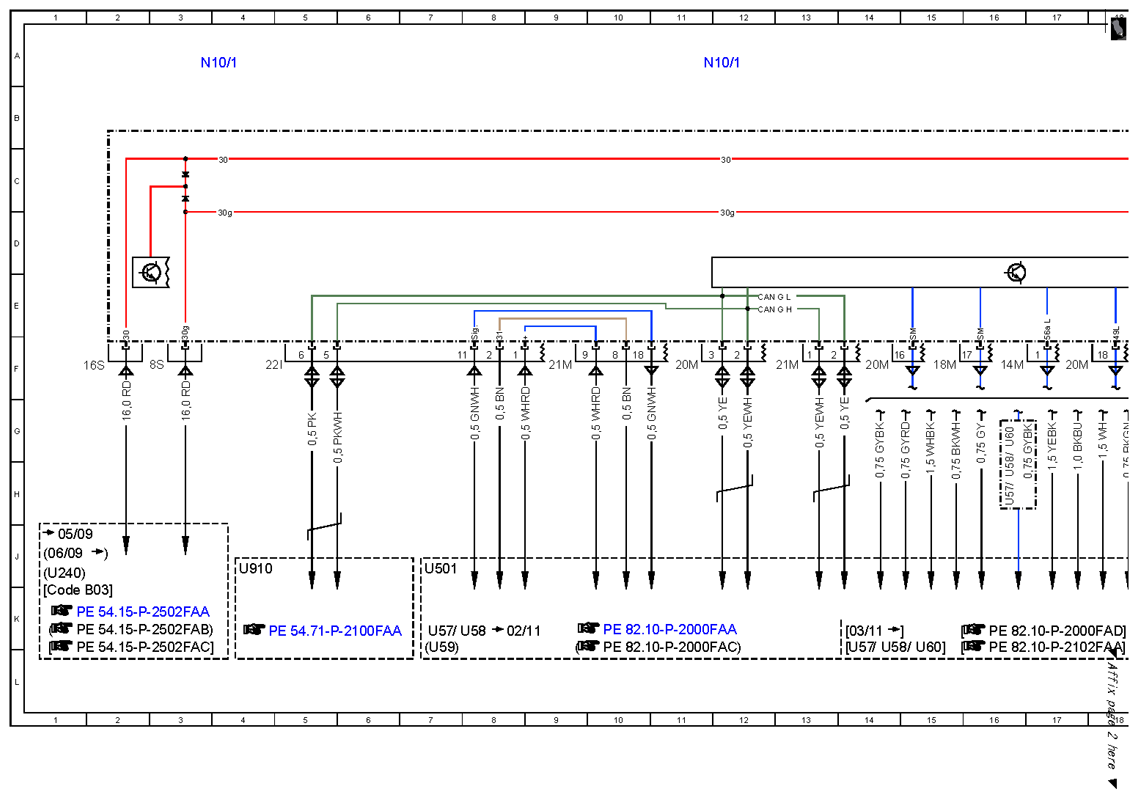

Fig 1: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (1 Of 5)
G10080471Courtesy of MERCEDES-BENZ USA

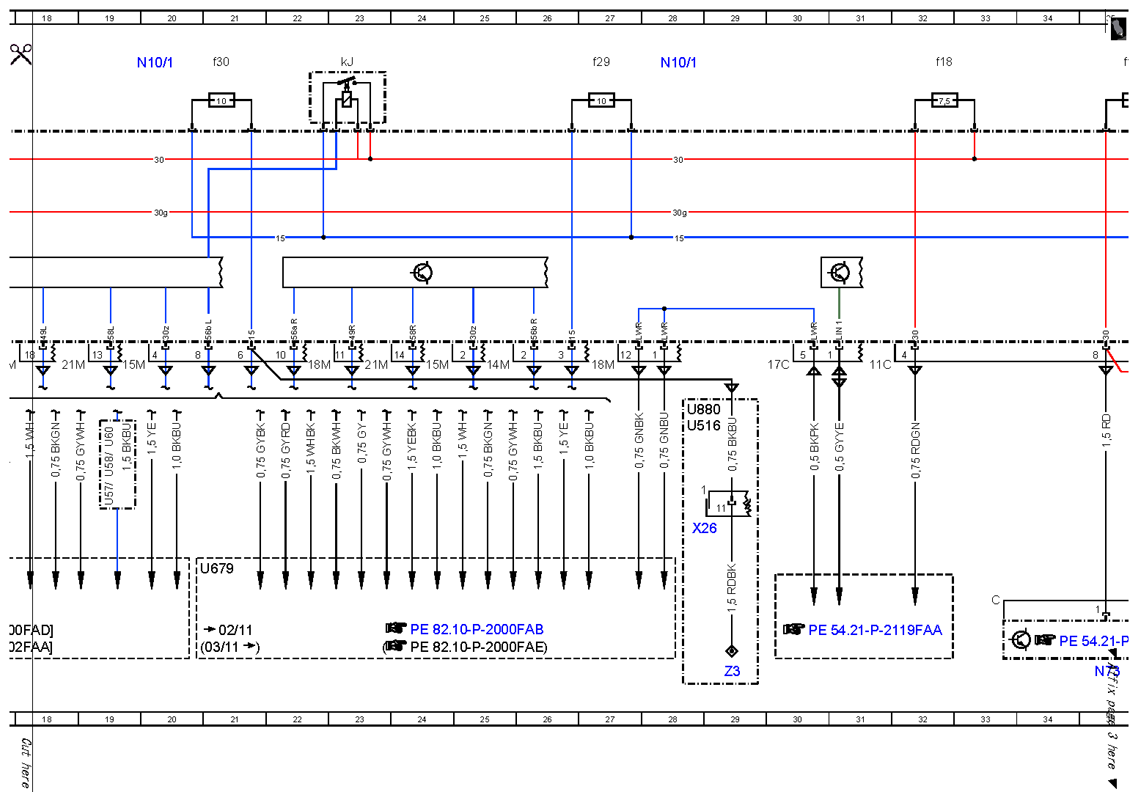

Fig 2: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (2 Of 5)
G10080472Courtesy of MERCEDES-BENZ USA

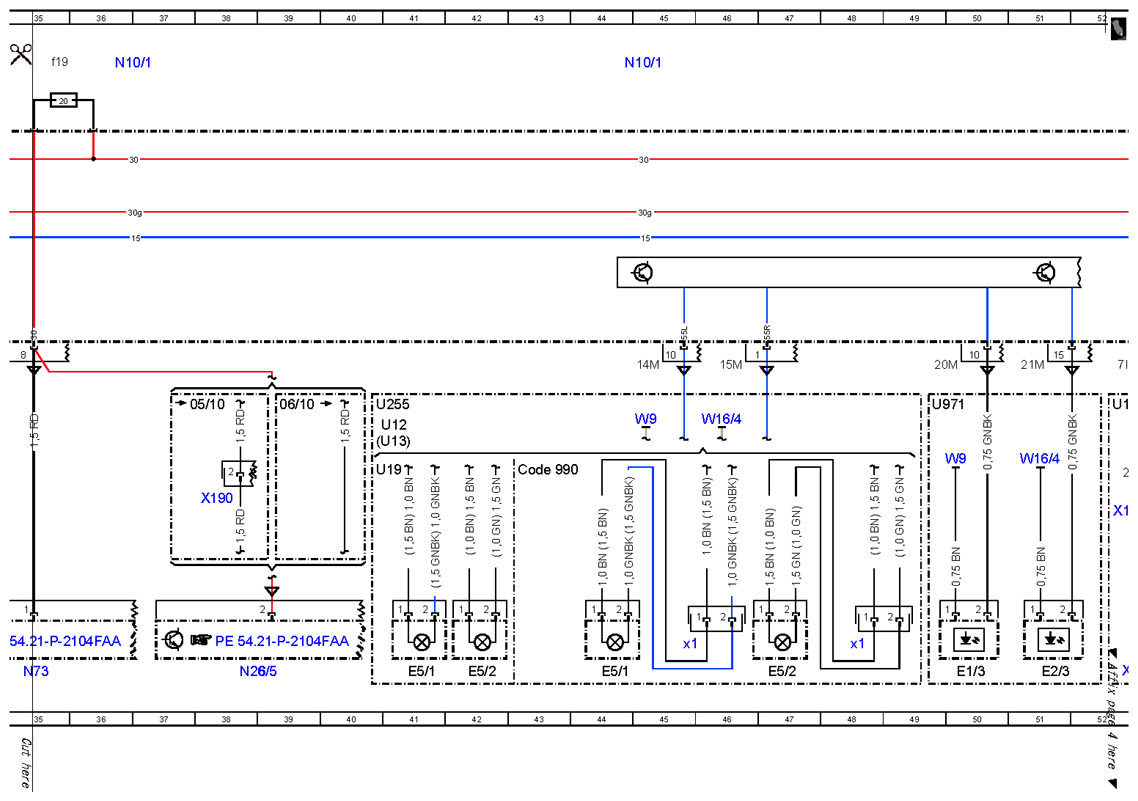

Fig 3: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (3 Of 5)
G10080473Courtesy of MERCEDES-BENZ USA

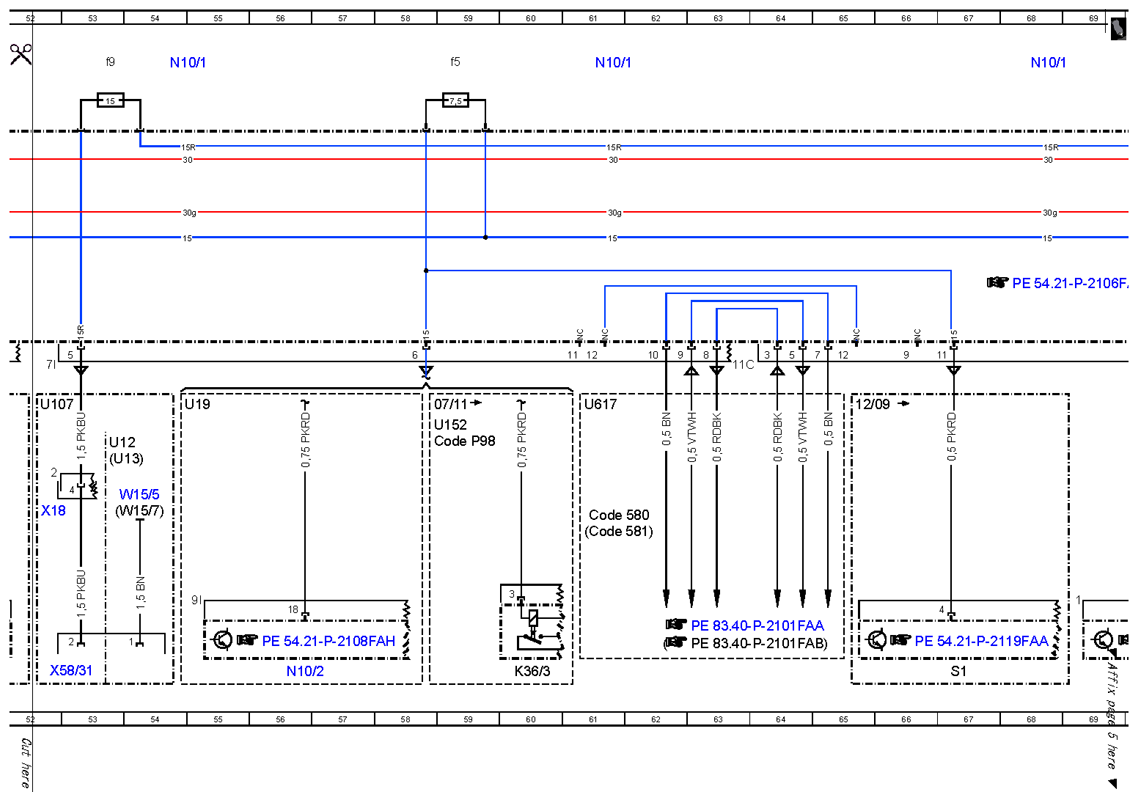

Fig 4: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (4 Of 5)
G10080474Courtesy of MERCEDES-BENZ USA

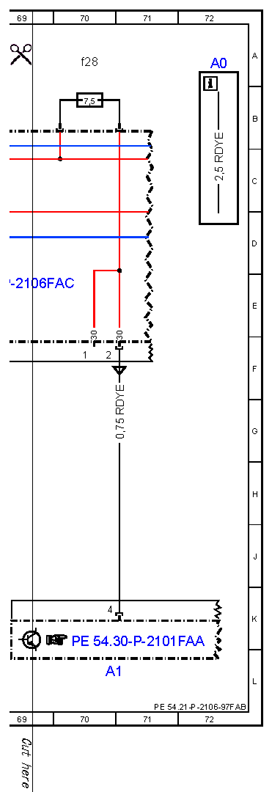

Fig 5: Front SAM Control Unit With Fuse And Relay Module (N10/1) - Wiring Diagram (5 Of 5)
G10080475Courtesy of MERCEDES-BENZ USA
