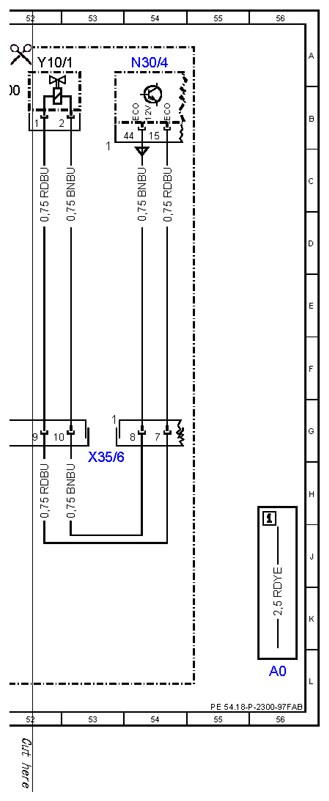

| A0 |
Color code key |
56L |
| A9 |
Refrigerant compressor |
7A |
| A9 |
Refrigerant compressor |
15A |
| A9 |
Refrigerant compressor |
26A |
| A9 |
Refrigerant compressor |
40A |
| A9 |
Refrigerant compressor |
50A |

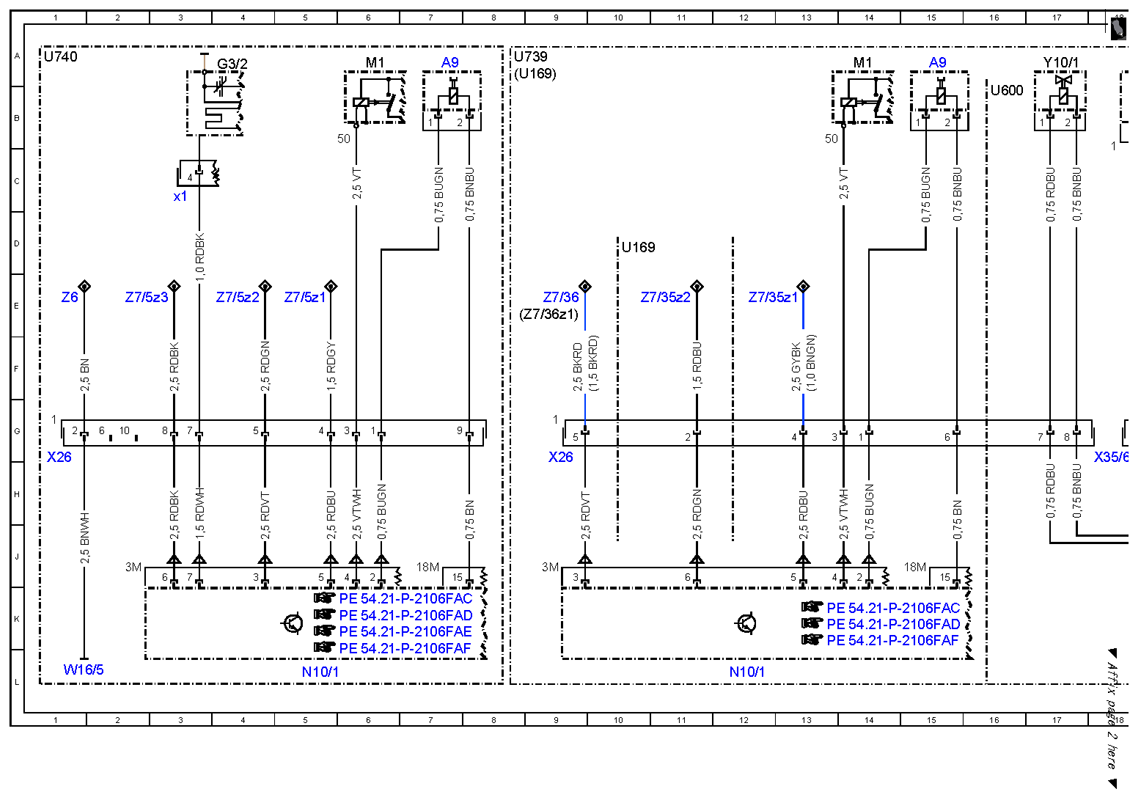

| G3/2 |
Oxygen sensor upstream of catalytic converter |
4A |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
3C |
| M1 |
Starter |
6A |
| M1 |
Starter |
14A |
| M1 |
Starter |
25A |
| M1 |
Starter |
38A |
| M1 |
Starter |
49A |
| N10/1 |
Front SAM control unit with fuse and relay module |
5L |
| N10/1 |
Front SAM control unit with fuse and relay module |
12L |
| N10/1 |
Front SAM control unit with fuse and relay module |
24L |
| N10/1 |
Front SAM control unit with fuse and relay module |
37L |
| N10/1 |
Front SAM control unit with fuse and relay module |
48L |
| N30/4 |
Electronic Stability Program control unit |
18A |
| N30/4 |
Electronic Stability Program control unit |
43A |
| N30/4 |
Electronic Stability Program control unit |
54A |
| U12 |
Valid for left-hand drive vehicles |
20H |
| U12 |
Valid for left-hand drive vehicles |
27J |
| U12 |
Valid for left-hand drive vehicles |
30J |
| U12 |
Valid for left-hand drive vehicles |
44H |
| U13 |
Valid for right-hand drive vehicles |
20J |
| U13 |
Valid for right-hand drive vehicles |
27J |
| U13 |
Valid for right-hand drive vehicles |
32J |
| U13 |
Valid for right-hand drive vehicles |
44J |

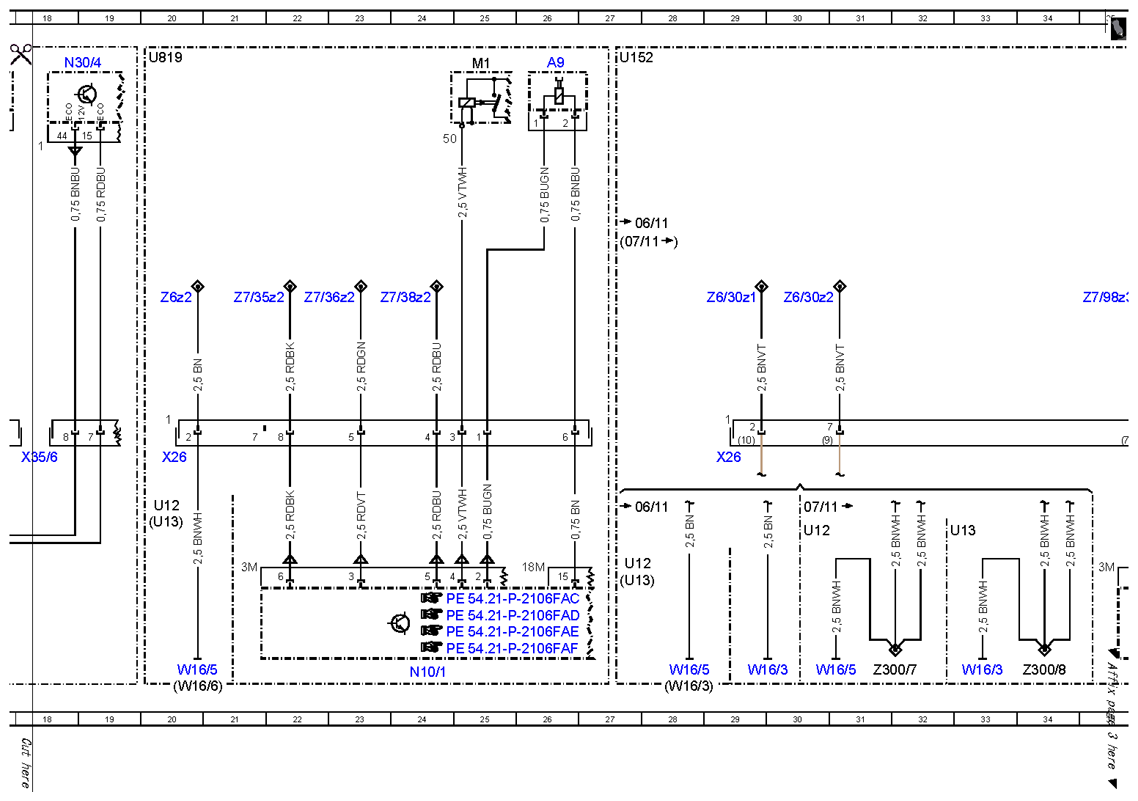

| U152 |
Valid for gasoline engine 156 |
27A |

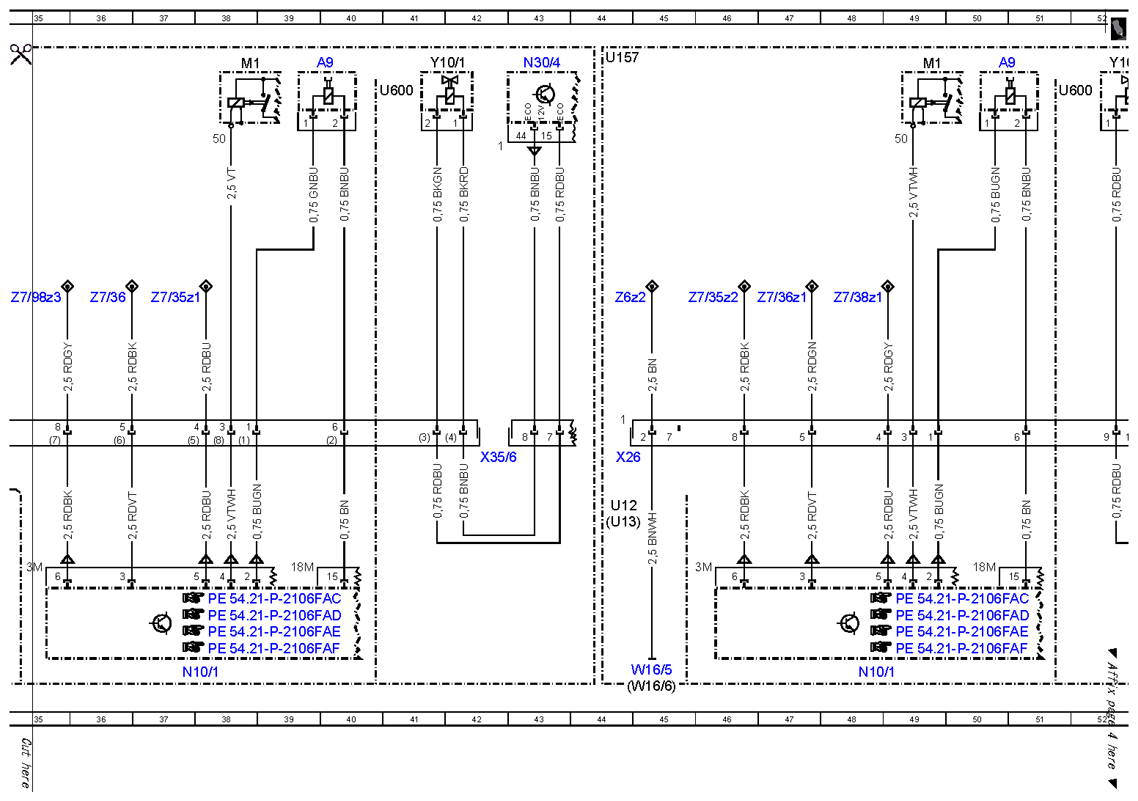

| U157 |
Valid for combustion engine 272 DE |
44A |
| U169 |
Valid for gasoline engine 271 DE |
10D |
| U169 |
Valid for gasoline engine 271 DE |
8A |
| U600 |
Valid for power steering pump |
16B |
| U600 |
Valid for power steering pump |
40B |
| U600 |
Valid for power steering pump |
51B |
| U739 |
Valid for gasoline engine 271 continuous fuel injection system (electronic) |
8A |
| U740 |
Valid for diesel engine 646 |
1A |
| U819 |
Valid for gasoline engine 272 |
20A |
| W16/3 |
Left major assembly compartment ground point |
28L |
| W16/3 |
Left major assembly compartment ground point |
33L |
| W16/3 |
Left major assembly compartment ground point |
29L |
| W16/5 |
Left major assembly compartment electronics ground point |
28L |
| W16/5 |
Left major assembly compartment electronics ground point |
1L |
| W16/5 |
Left major assembly compartment electronics ground point |
20L |
| W16/5 |
Left major assembly compartment electronics ground point |
30L |
| W16/5 |
Left major assembly compartment electronics ground point |
45L |
| W16/6 |
Right major assembly compartment ground point |
20L |
| W16/6 |
Right major assembly compartment ground point |
45L |
| X26 |
Interior and engine wiring harness electrical connector |
1H |
| X26 |
Interior and engine wiring harness electrical connector |
9H |
| X26 |
Interior and engine wiring harness electrical connector |
20H |
| X26 |
Interior and engine wiring harness electrical connector |
29H |
| X26 |
Interior and engine wiring harness electrical connector |
44H |
| X35/6 |
Instrument panel and module box electrical connector |
18H |
| X35/6 |
Instrument panel and module box electrical connector |
42H |
| X35/6 |
Instrument panel and module box electrical connector |
53H |
| Y10/1 |
Power steering pump quantity control valve |
17A |
| Y10/1 |
Power steering pump quantity control valve |
41A |
| Y10/1 |
Power steering pump quantity control valve |
52A |
| Z300/7 |
Left major assembly compartment ground line connector sleeve (electronic ground) |
31L |
| Z300/8 |
Left major assembly compartment ground line connector sleeve (power ground) |
34L |
| Z6 |
Circuit 31 connector sleeve |
1E |
| Z6/30z1 |
ME-SFI [ME] diagnosis connector sleeve |
29E |
| Z6/30z2 |
ME-SFI [ME] diagnosis connector sleeve |
30E |
| Z6z2 |
Circuit 31 connector sleeve |
20E |
| Z6z2 |
Circuit 31 connector sleeve |
44E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
12E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
37E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
11E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
21E |
| Z7/35z2 |
Circuit 87 M1e connector sleeve |
46E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
9E |
| Z7/36 |
Circuit 87 M2e connector sleeve |
36E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
9E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
47E |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
23E |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
48E |
| Z7/38z2 |
Circuit 87 M1i connector sleeve |
24E |
| Z7/5z1 |
Circuit 87 connector sleeve |
5E |
| Z7/5z2 |
Circuit 87 connector sleeve |
4E |
| Z7/5z3 |
Circuit 87 connector sleeve |
2E |
| Z7/98z3 |
Circuit 87 M3e connector sleeve |
35E |
