| A85/3 |
Left rear door lock |
32 L |
| A85/4 |
Right rear door lock |
34 L |

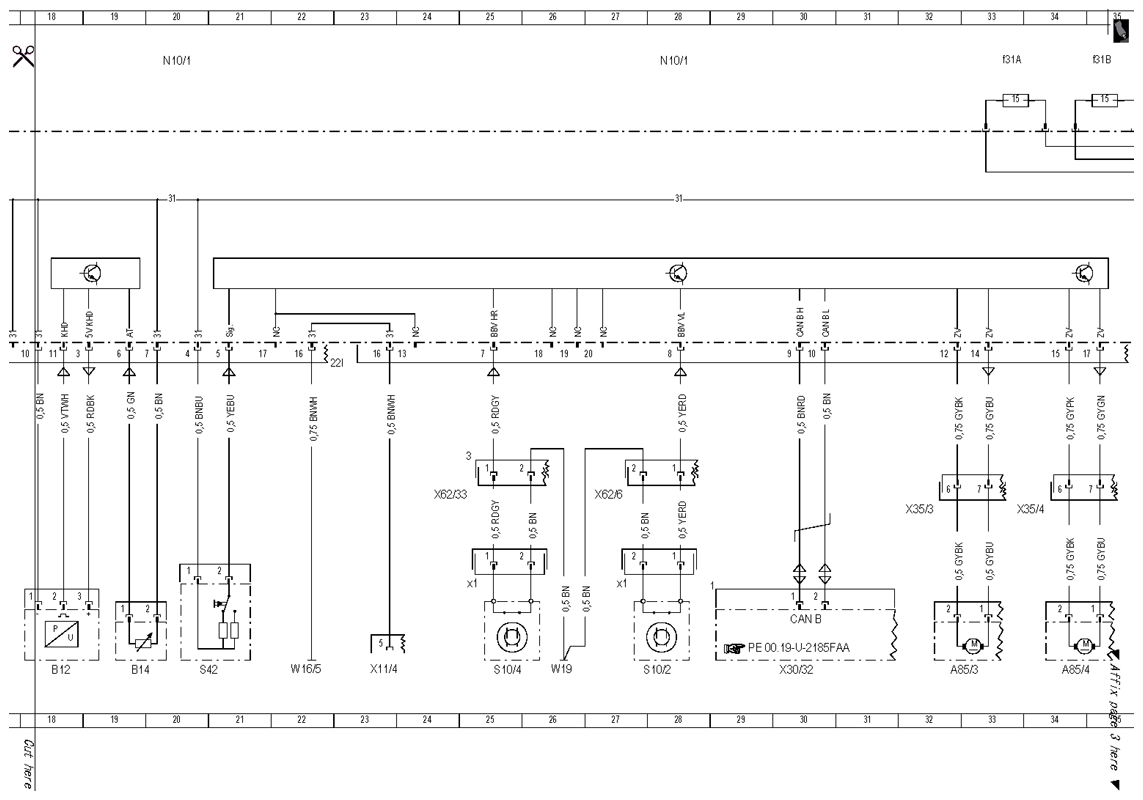

| B12 |
Refrigerant pressure sensor |
18 L |
| B14 |
Outside temperature sensor |
19 L |
| CAN B |
Interior CAN |
30 K |

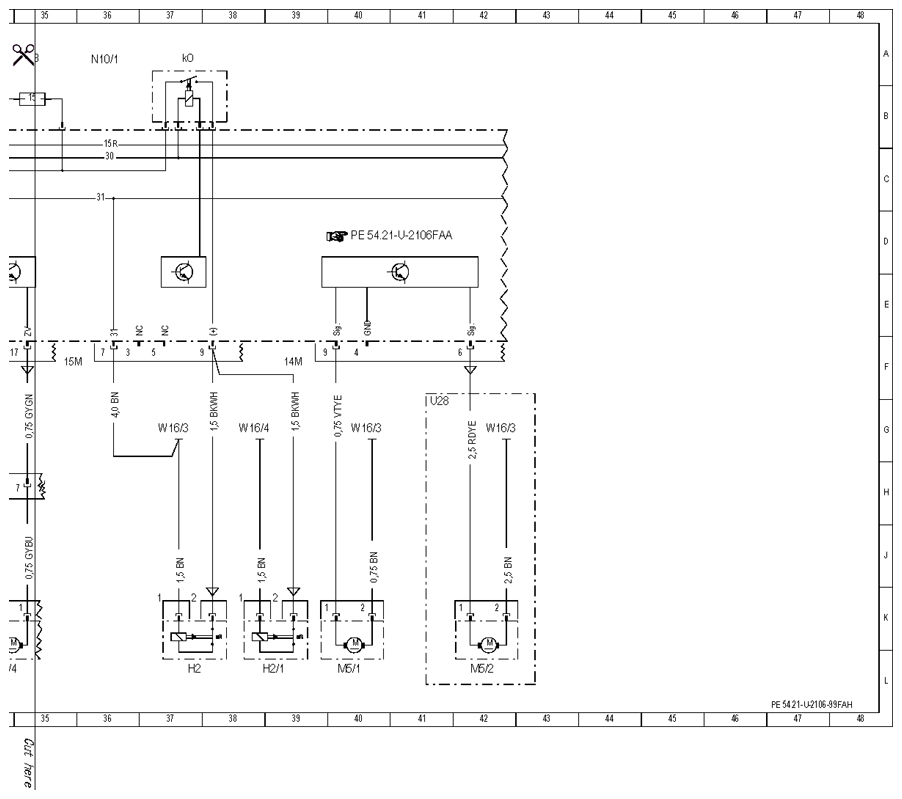

| H2 |
Left fanfare horn |
37 L |
| H2/1 |
Right fanfare horn |
39 L |
| M5/1 |
Windshield washer system pump |
40 L |
| M5/2 |
Headlamp cleaning system pump |
42 L |
| N10/1 |
Front SAM control module with fuse and relay module |
4 A |
| N10/1 |
Front SAM control module with fuse and relay module |
12 A |
| N10/1 |
Front SAM control module with fuse and relay module |
20 A |
| N10/1 |
Front SAM control module with fuse and relay module |
28 A |
| N10/1 |
Front SAM control module with fuse and relay module |
36 A |
| N10/1kO |
FAN relay module |
37 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
6 L |

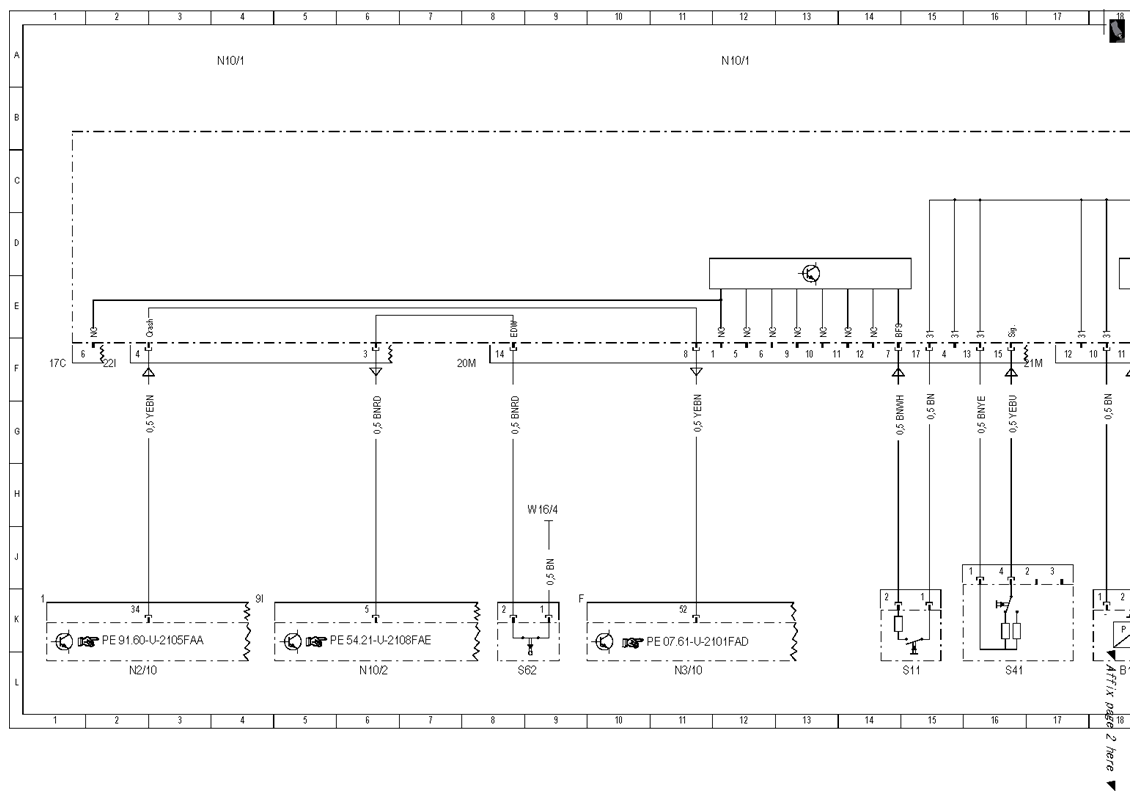

| N2/10 |
Supplemental restraint system control unit |
2 L |
| N3/10 |
ME-SFI [ME] control module |
11 L |
| S10/2 |
Right front brake wear sensor |
28 L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
27 J |
| S10/4 |
Right rear brake wear sensor |
25 L |
| S10/4x1 |
Right rear brake wear sensor electrical connector |
25 J |
| S11 |
Brake fluid level switch |
15 L |
| S41 |
Coolant level switch |
16 L |
| S42 |
Windshield washer system fluid level switch |
21 L |
| S62 |
Engine hood anti-theft alarm system switch |
9 L |
| U28 |
Valid for headlamp cleaning system |
41 F |
| W16/3 |
Left major assembly compartment ground point |
37 G |
| W16/3 |
Left major assembly compartment ground point |
40 G |
| W16/3 |
Left major assembly compartment ground point |
42 G |
| W16/4 |
Right wheelhouse ground point |
9 H |
| W16/4 |
Right wheelhouse ground point |
38 G |
| W16/5 |
Left major assembly compartment electronics ground point |
22 L |
| W19 |
Right front seat crossmember ground point |
26 L |
| X11/4 |
Diagnostic connector |
23 L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
30 L |
| X35/3 |
Left rear door electrical connector |
32 H |
| X35/4 |
Right rear door electrical connector |
34 H |
| X62/33 |
Rear axle electrical connector, right distributor |
24 H |
| X62/6 |
Front axle electrical connector, right distributor |
27 H |
