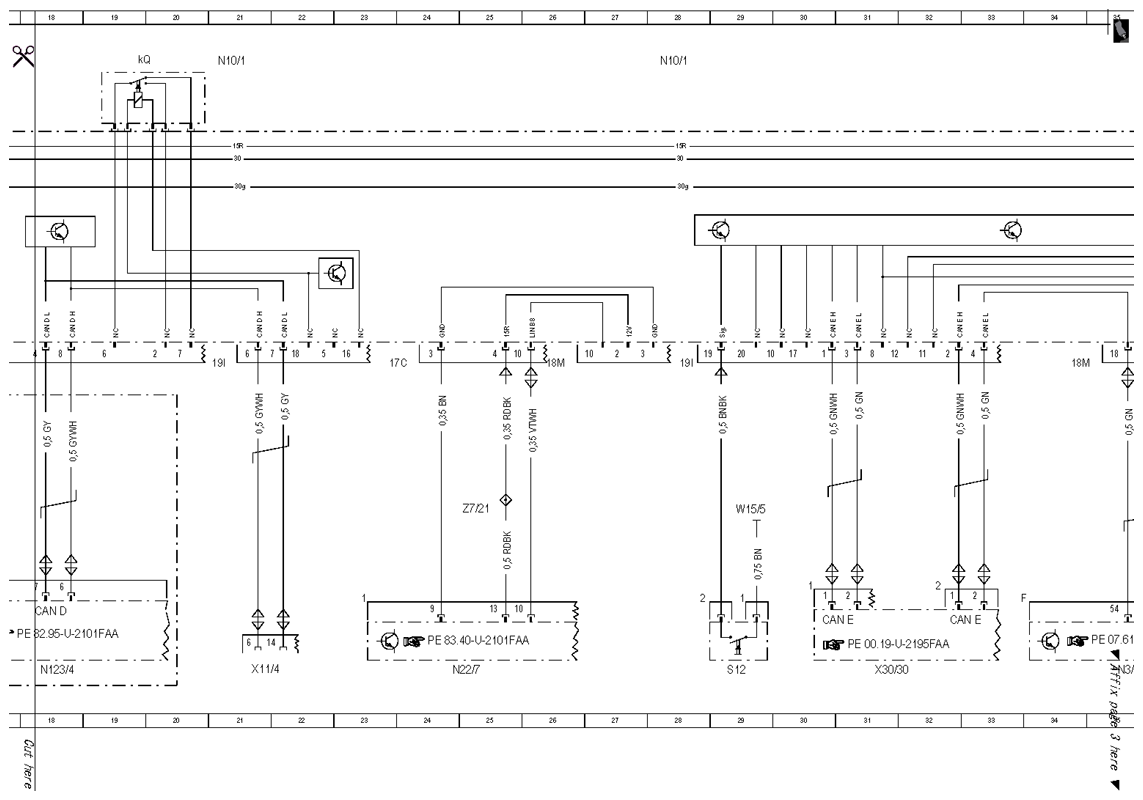

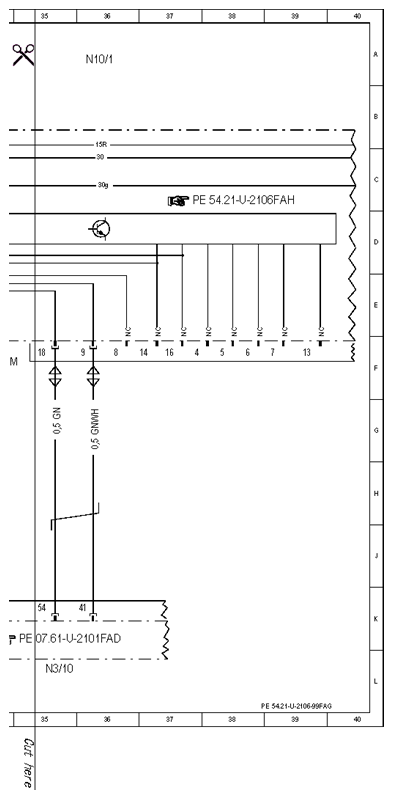

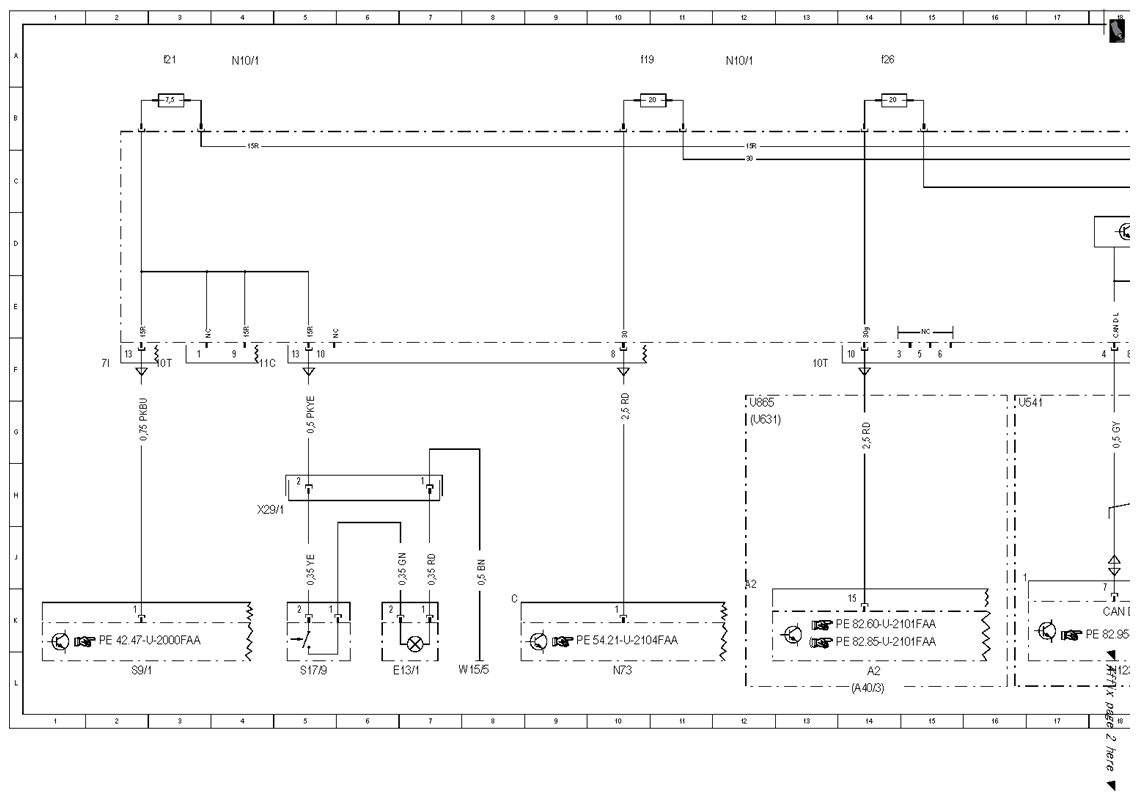

| A2 |
Radio |
14 L |
| A40/3 |
COMAND control unit |
14 L |
| CAN D |
Diagnostic CAN |
18 K |
| CAN E |
Chassis CAN |
30 K |
| CAN E |
Chassis CAN |
32 K |
| E13/1 |
Glove box lamp |
7 L |
| LIN B8 |
Climate control LIN |
26 E |
| N10/1 |
Front SAM control module with fuse and relay module |
4 A |
| N10/1 |
Front SAM control module with fuse and relay module |
12 A |
| N10/1 |
Front SAM control module with fuse and relay module |
21 A |
| N10/1 |
Front SAM control module with fuse and relay module |
28 A |
| N10/1 |
Front SAM control module with fuse and relay module |
36 A |
| N10/1f19 |
Fuse 19 |
10 A |
| N10/1f21 |
Fuse 21 |
3 A |
| N10/1f26 |
Fuse 26 |
14 A |
| N10/1kQ |
Reserve relay |
19 A |
| N123/4 |
Emergency call system control unit |
18 L |
| N22/7 |
Automatic air conditioning control and operating unit |
25 L |
| N3/10 |
ME-SFI [ME] control module |
35 L |
| N73 |
Electronic ignition switch control unit |
10 L |
| S12 |
Parking brake indicator switch |
29 L |
| S17/9 |
Glove box lamp switch |
5 L |
| S9/1 |
Stop lamp switch |
2 L |
| U541 |
Valid for TELEAID emergency call system |
17 F |
| U631 |
Valid for COMAND |
12 G |
| U865 |
Valid for Audio 20 radio |
12 F |
| W15/5 |
Left front footwell ground point |
8 L |
| W15/5 |
Left front footwell ground point |
29 H |
| X11/4 |
Diagnostic connector |
21 L |
| X29/1 |
Glove compartment electrical connector |
4 H |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
31 L |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
25 H |
