Electrical System, Equipment & Instructions -- 204 C Class - 2 Of 6
>>
Basic Knowledge
>>
Instrument cluster (IC), location of components - GF54.30-P-0002-04CW
Instrument cluster (IC), location of components - GF54.30-P-0002-04CW

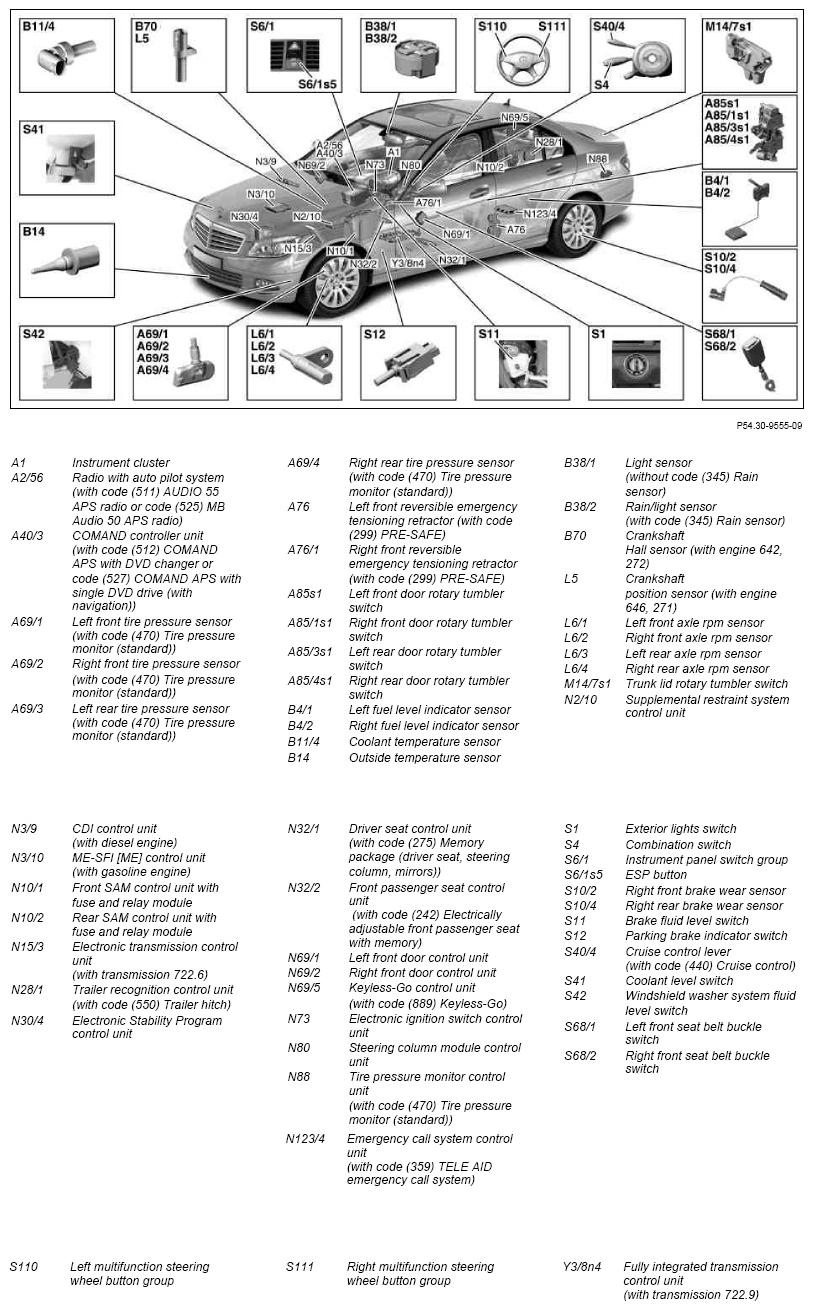

Fig 1: Overview Of Instrument Cluster (IC) Components
Courtesy of MERCEDES-BENZ USA
Illustrated on model 204.0
Courtesy of MERCEDES-BENZ USA
