Instrument cluster (IC), block diagram - GF54.30-P-0002-01CW

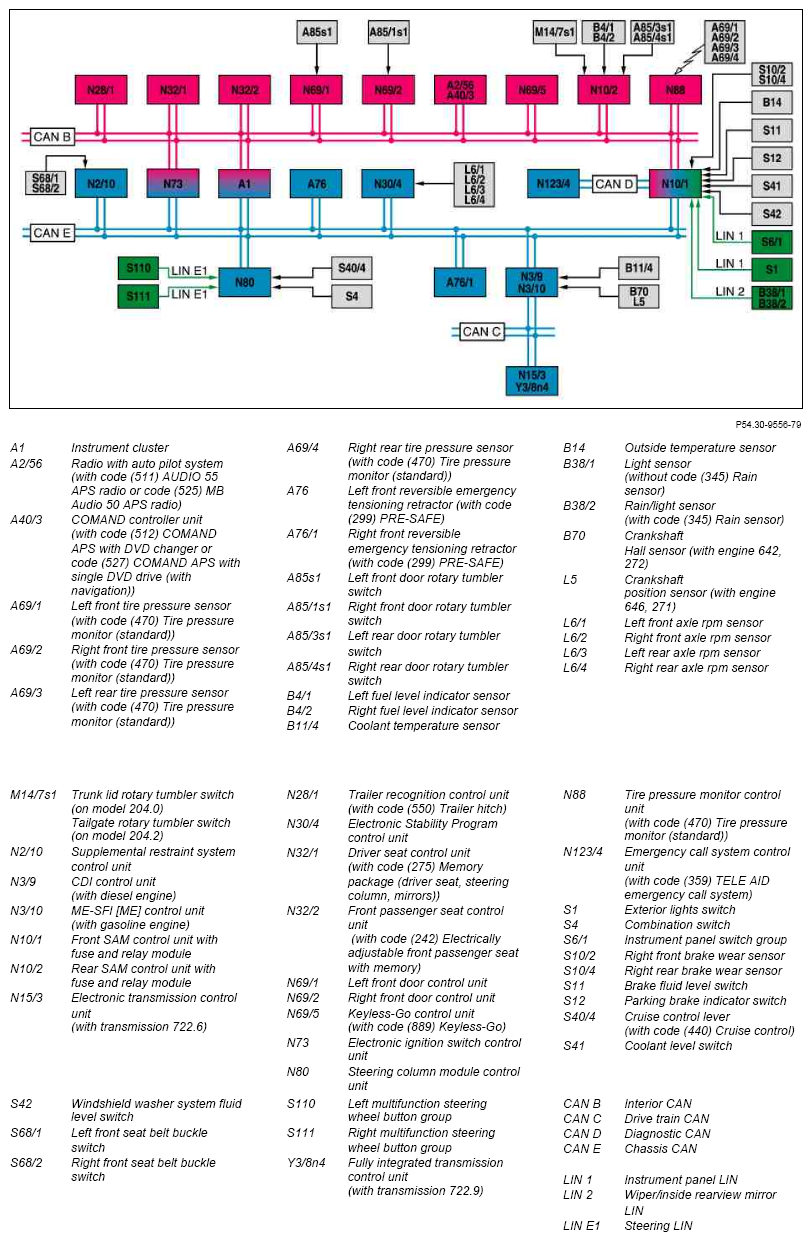

Fig 1: Instrument Cluster (IC) Block Diagram

G10107263

Courtesy of MERCEDES-BENZ USA
