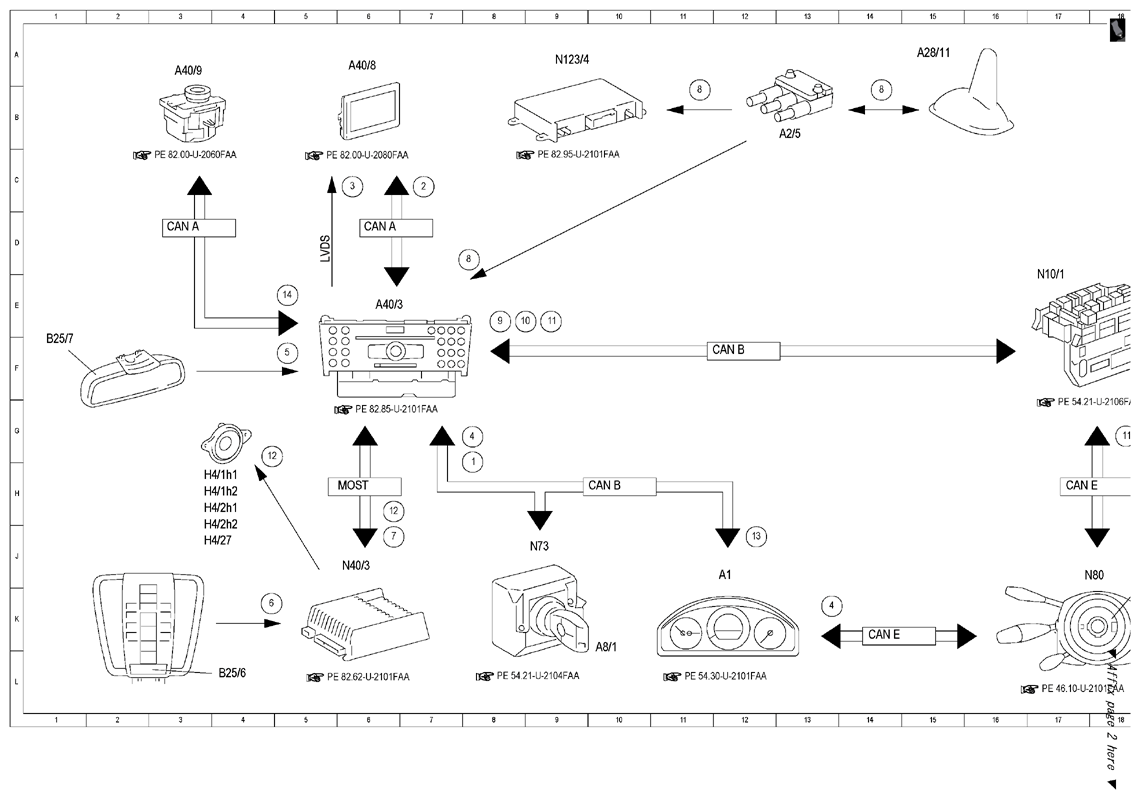

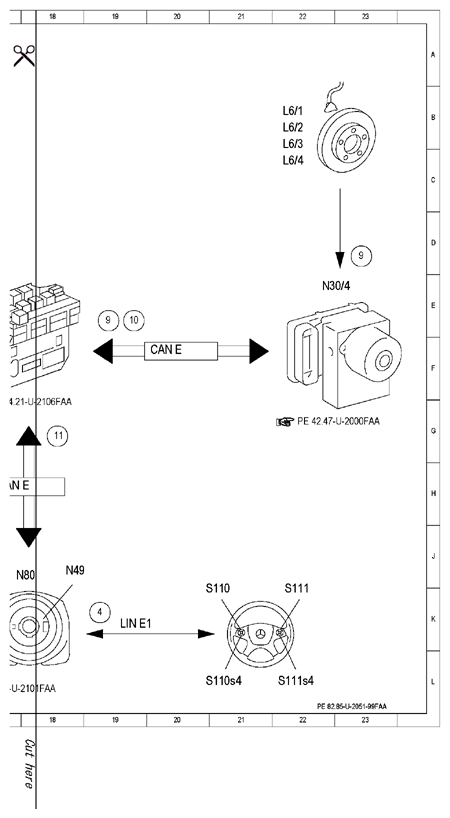

| 1 |
Circuit 15, status |
8 G |
| 10 |
Wheel rotation direction, signal |
9 E |
| 10 |
Wheel rotation direction, signal |
19 E |
| 11 |
Steering angle, signal |
9 E |
| 11 |
Steering angle, signal |
18 G |
| 12 |
Voice output, signal |
5 G |
| 12 |
Voice output, signal |
7 H |
| 13 |
Instrument cluster, message |
12 H |
| 14 |
Audio/COMMAND controller, request |
5 E |
| 2 |
Switch-on request, signal |
7 C |
| 3 |
Audio/COMMAND display, signal |
6 C |
| 4 |
Multifunction steering wheel button group, signal |
8 G |
| 4 |
Multifunction steering wheel button group, signal |
14 K |
| 4 |
Multifunction steering wheel button group, signal |
19 K |
| 5 |
Voice input, signal |
5 F |
| 6 |
Vehicle interior noise level, signal |
5 K |
| 7 |
Sound system amplifier, actuation |
7 H |
| 8 |
GPS, signal |
8 D |
| 8 |
GPS, signal |
11 A |
| 8 |
GPS, signal |
14 A |
| 9 |
Wheel speed, signal |
8 E |
| 9 |
Wheel speed, signal |
19 E |
| 9 |
Wheel speed, signal |
23 D |
| A1 |
Instrument cluster |
12 J |
| A2/5 |
Global positioning system antenna splitter |
13 B |
| A28/11 |
Multifunction antenna |
15 A |
| A40/3 |
COMMAND control unit |
6 E |
| A40/8 |
Audio/COMMAND display |
6 A |
| A40/9 |
Audio/COMMAND control panel |
3 A |
| A8/1 |
Transmitter key |
10 K |
| B25/6 |
Sound system microphone |
4 L |
| B25/7 |
Voice control system microphone |
1 E |
| CAN A |
Telematics CAN |
3 D |
| CAN A |
Telematics CAN |
6 D |
| CAN B |
Interior CAN |
10 H |
| CAN B |
Interior CAN |
12 F |
| CAN E |
Chassis CAN |
14 K |
| CAN E |
Chassis CAN |
17 H |
| CAN E |
Chassis CAN |
20 F |
| H4/1h1 |
Left front door tweeter |
4 H |
| H4/1h2 |
Left front door bass speaker |
4 H |
| H4/27 |
Center instrument panel speaker |
4 J |
| H4/2h1 |
Right front door tweeter |
4 H |
| H4/2h2 |
Right front door bass speaker |
4 H |
| L6/1 |
Left front axle rpm sensor |
22 B |
| L6/2 |
Right front axle rpm sensor |
22 B |
| L6/3 |
Left rear axle rpm sensor |
22 B |
| L6/4 |
Right rear axle rpm sensor |
22 C |
| LIN E1 |
Steering LIN |
19 K |
| MOST |
Media Oriented System Transport |
6 H |
| N10/1 |
Front SAM control module with fuse and relay module |
17 D |
| N123/4 |
Emergency call system control unit |
9 A |
| N30/4 |
Electronic Stability Program control unit |
22 E |
| N40/3 |
Sound system amplifier control unit |
6 J |
| N49 |
Steering angle sensor |
18 J |
| N73 |
Electronic ignition switch control unit |
9 J |
| N80 |
Steering column module control unit |
18 J |
| S110 |
Left multifunction steering wheel button group |
21 J |
| S110s4 |
"Back" and voice control system OFF button |
21 L |
| S111 |
Right multifunction steering wheel button group |
22 J |
| S111s4 |
Voice control system ON button |
22 L |
