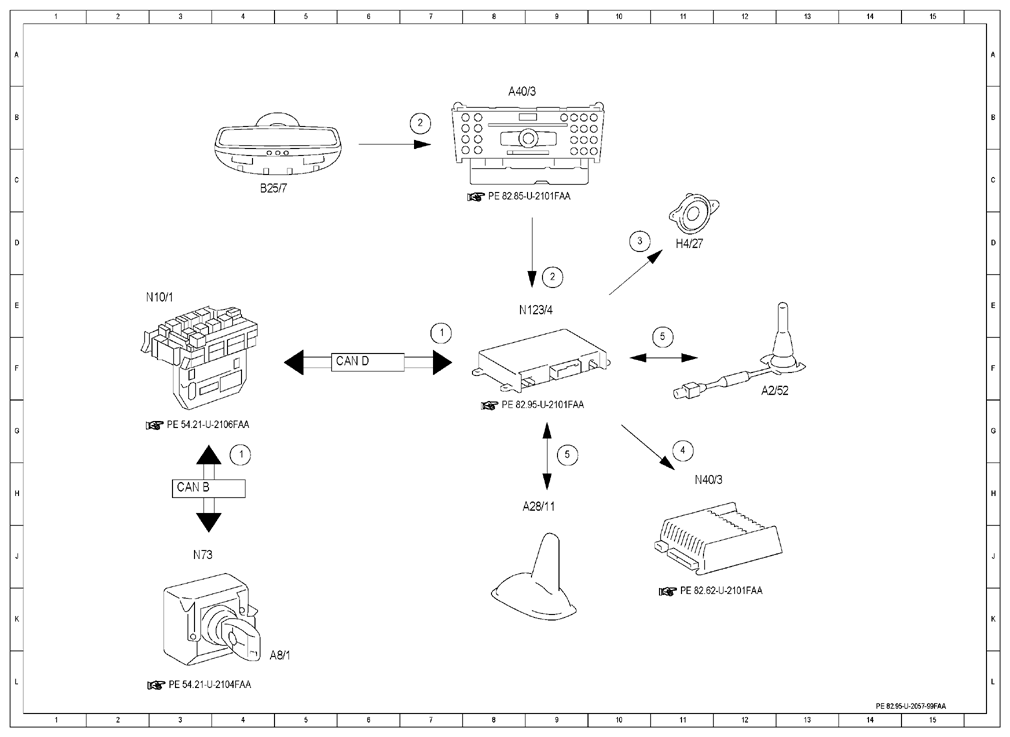

| 1 |
Circuit 15, status |
4 G |
| 1 |
Circuit 15, status |
7 E |
| 2 |
Voice input, signal |
7 B |
| 2 |
Voice input, signal |
9 D |
| 3 |
Voice output, signal |
10 D |
| 4 |
Mute, signal |
11 G |
| 5 |
Telephone, signal |
9 G |
| 5 |
Telephone, signal |
11 E |
| A2/52 |
Emergency call system antenna |
12 F |
| A28/11 |
Multifunction antenna |
9 H |
| A40/3 |
COMMAND control unit |
8 A |
| A8/1 |
Transmitter key |
5 K |
| B25/7 |
Voice control system microphone |
4 C |
| CAN B |
Interior CAN |
3 H |
| CAN D |
Diagnostic CAN |
6 F |
| H4/27 |
Center instrument panel speaker |
11 D |
| N10/1 |
Front SAM control module with fuse and relay module |
3 E |
| N123/4 |
Emergency call system control unit |
9 E |
| N40/3 |
Sound system amplifier control unit |
11 H |
| N73 |
Electronic ignition switch control unit |
3 J |
