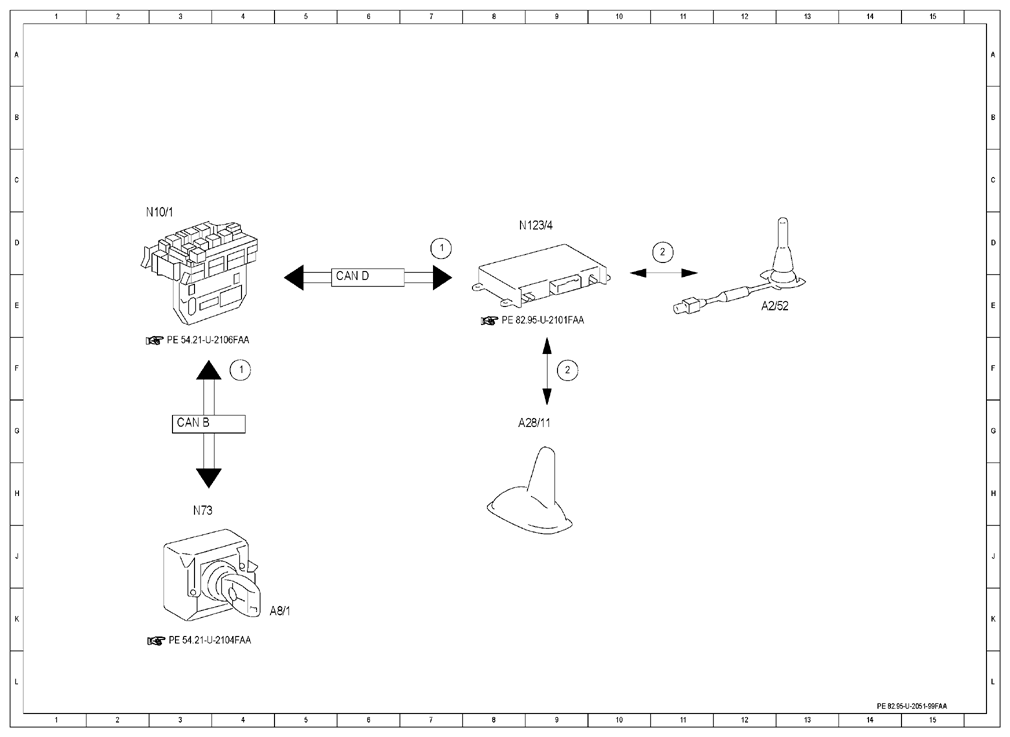

Electrical function diagram for TELEAID telephone antenna selection - PE82.95-U-2051-99FAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 4 F |
| 1 | Circuit 15, status | 7 D |
| 2 | Telephone, signal | 9 F |
| 2 | Telephone, signal | 11 D |
| A2/52 | Emergency call system antenna | 12 E |
| A28/11 | Multifunction antenna | 9 G |
| A8/1 | Transmitter key | 5 K |
| CAN B | Interior CAN | 3 G |
| CAN D | Diagnostic CAN | 6 D |
| N10/1 | Front SAM control module with fuse and relay module | 3 C |
| N123/4 | Emergency call system control unit | 9 D |
| N73 | Electronic ignition switch control unit | 3 H |
