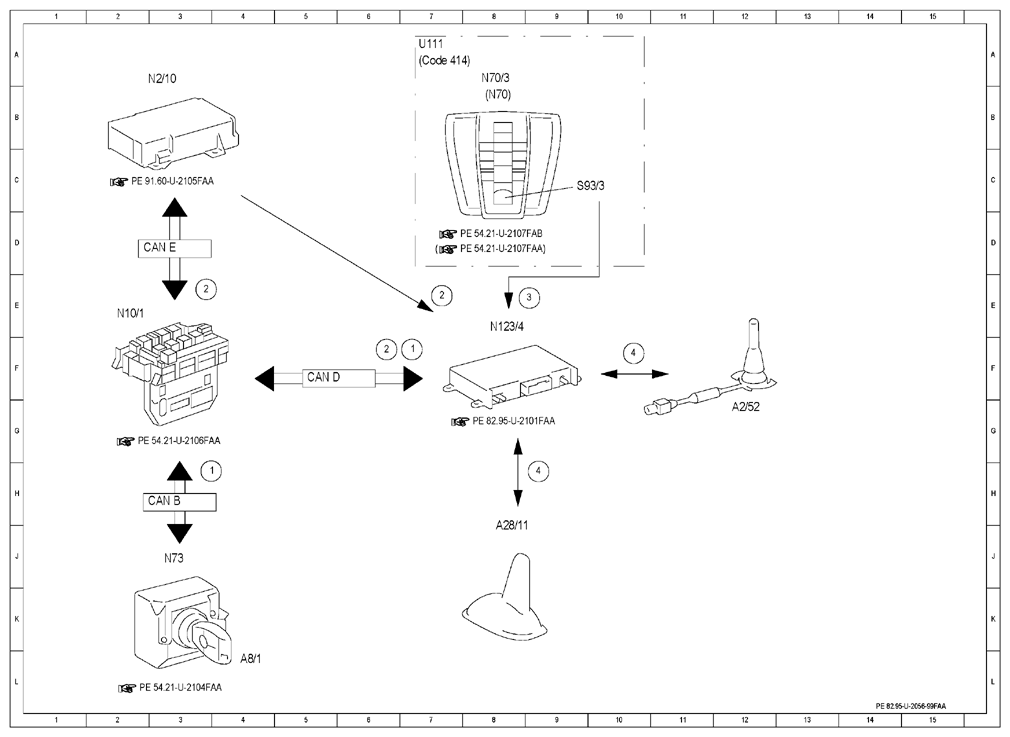

| 1 |
Circuit 15, status |
4 G |
| 1 |
Circuit 15, status |
7 E |
| 2 |
Crash, signal |
4 E |
| 2 |
Crash, signal |
6 E |
| 2 |
Crash, signal |
7 E |
| 3 |
Manual emergency call, signal |
9 E |
| 4 |
Telephone, signal |
9 G |
| 4 |
Telephone, signal |
10 F |
| A2/52 |
Emergency call system antenna |
12 F |
| A28/11 |
Multifunction antenna |
8 H |
| A8/1 |
Transmitter key |
4 K |
| CAN B |
Interior CAN |
3 H |
| CAN D |
Diagnostic CAN |
5 F |
| CAN E |
Chassis CAN |
3 D |
| Code 414 |
Power glass tilting/sliding sunroof |
7 A |
| N10/1 |
Front SAM control module with fuse and relay module |
2 E |
| N123/4 |
Emergency call system control unit |
8 E |
| N2/10 |
Supplemental restraint system control unit |
3 A |
| N70 |
Overhead control panel control module |
8 A |
| N70/3 |
Overhead control panel electronics |
8 A |
| N73 |
Electronic ignition switch control unit |
3 J |
| S93/3 |
Emergency call system button |
10 C |
| U111 |
Valid for overhead control panel without CAN |
7 A |
