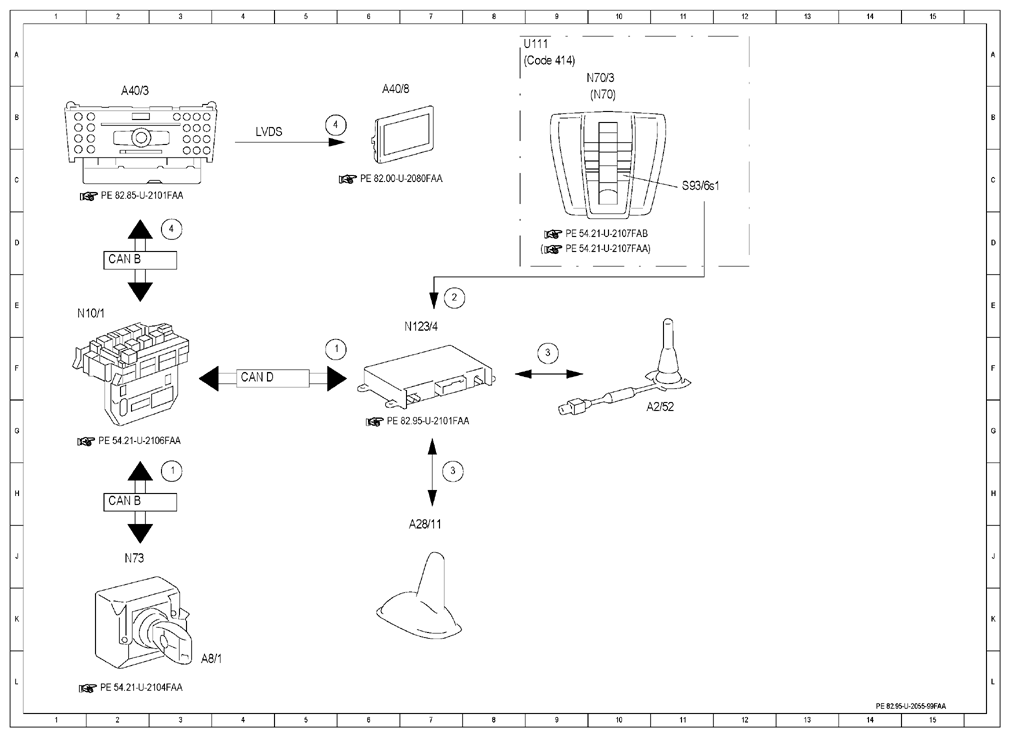

| 1 |
Circuit 15, status |
3 G |
| 1 |
Circuit 15, status |
6 E |
| 2 |
MB-Info, signal |
8 E |
| 3 |
Telephone, signal |
7 G |
| 3 |
Telephone, signal |
9 F |
| 4 |
Audio/COMMAND display, signal |
3 D |
| 4 |
Audio/COMMAND display, signal |
6 B |
| A2/52 |
Emergency call system antenna |
11 F |
| A28/11 |
Multifunction antenna |
7 H |
| A40/3 |
COMMAND control unit |
2 A |
| A40/8 |
Audio/COMMAND display |
6 A |
| A8/1 |
Transmitter key |
4 K |
| CAN B |
Interior CAN |
2 H |
| CAN B |
Interior CAN |
2 D |
| CAN D |
Diagnostic CAN |
4 F |
| Code 414 |
Power glass tilting/sliding sunroof |
9 A |
| N10/1 |
Front SAM control module with fuse and relay module |
2 E |
| N123/4 |
Emergency call system control unit |
7 E |
| N70 |
Overhead control panel control module |
10 A |
| N70/3 |
Overhead control panel electronics |
10 A |
| N73 |
Electronic ignition switch control unit |
2 J |
| S93/6s1 |
MB-Info button |
11 C |
| U111 |
Valid for overhead control panel without CAN |
9 A |
