| 1 |
Circuit 15, status |
9 E |
| 10 |
AM/FM antenna, signal |
8 D |
| 11 |
FM antenna, signal |
7 D |
| 12 |
Speaker, actuation |
5 G |
| 13 |
Instrument cluster, message |
15 E |
| 14 |
Audio/COMMAND controller, request |
5 D |
| 2 |
Switch-on request, signal |
7 C |
| 2 |
Switch-on request, signal |
7 J |
| 2 |
Switch-on request, signal |
8 K |
| 2 |
Switch-on request, signal |
12 J |
| 3 |
Audio/COMMAND display, signal |
6 C |
| 4 |
Multifunction steering wheel button group, signal |
8 E |
| 4 |
Multifunction steering wheel button group, signal |
17 F |
| 4 |
Multifunction steering wheel button group, signal |
18 K |
| 5 |
Voice input, signal |
5 E |
| 6 |
Vehicle interior noise level, signal |
5 K |
| 7 |
SDAR, communication |
7 H |
| 7 |
SDAR, communication |
8 K |
| 7 |
SDAR, communication |
12 H |
| 8 |
Sound system amplifier, actuation |
9 K |
| 8 |
Sound system amplifier, actuation |
12 H |
| 9 |
SDAR antenna, signal |
13 J |
| A1 |
Instrument cluster |
17 D |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
10 B |
| A2/19 |
Rear window antenna FM antenna amplifier |
9 A |
| A28/11 |
Multifunction antenna |
15 G |
| A40/3 |

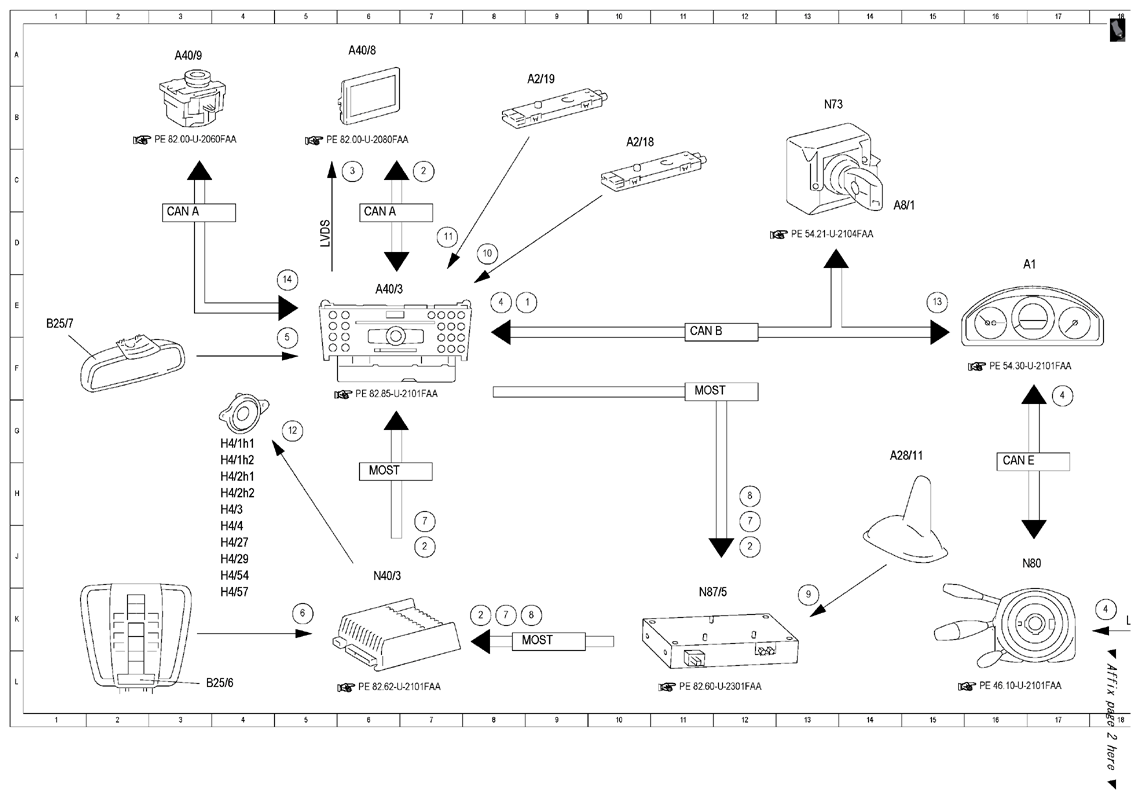

COMMAND control unit |
6 E |
| A40/8 |
Audio/COMMAND display |
6 A |
| A40/9 |
Audio/COMMAND control panel |
3 A |
| A8/1 |
Transmitter key |
15 C |
| B25/6 |
Sound system microphone |
4 L |
| B25/7 |
Voice control system microphone |
1 E |
| CAN A |
Telematics CAN |
3 C |
| CAN A |
Telematics CAN |
6 C |
| CAN B |
Interior CAN |
11 E |
| CAN E |
Chassis CAN |
16 G |
| H4/1h1 |
Left front door tweeter |
4 G |
| H4/1h2 |
Left front door bass speaker |
4 G |
| H4/27 |
Center instrument panel speaker |
4 J |
| H4/29 |
Bass speaker |
4 J |
| H4/2h1 |
Right front door tweeter |
4 H |
| H4/2h2 |
Right front door bass speaker |
4 H |
| H4/3 |
Left rear door speaker |
4 H |
| H4/4 |
Right rear door speaker |
4 H |
| H4/54 |
Left rear surround speaker |
4 J |
| H4/57 |
Right rear surround speaker |
4 J |

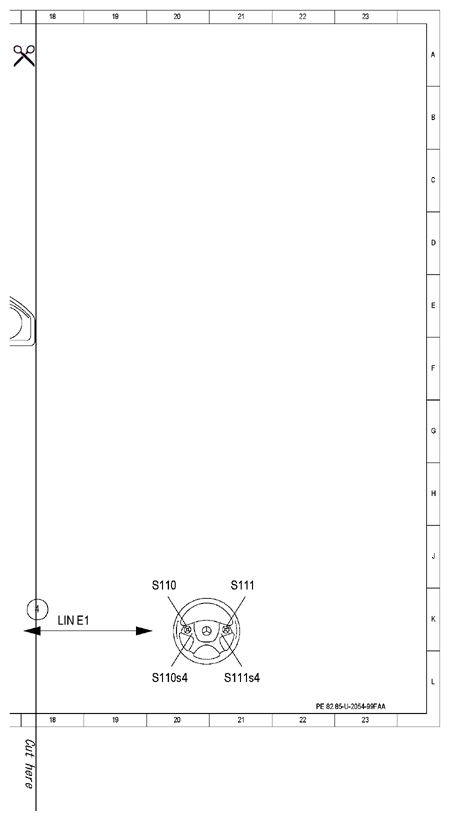

| LIN E1 |
Steering LIN |
18 K |
| MOST |
Media Oriented System Transport |
6 G |
| MOST |
Media Oriented System Transport |
9 K |
| MOST |
Media Oriented System Transport |
11 F |
| N40/3 |
Sound system amplifier control unit |
6 J |
| N73 |
Electronic ignition switch control unit |
13 B |
| N80 |
Steering column module control unit |
17 J |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
11 J |
| S110 |
Left multifunction steering wheel button group |
20 J |
| S110s4 |
"Back" and voice control system OFF button |
20 L |
| S111 |
Right multifunction steering wheel button group |
21 J |
| S111s4 |
Voice control system ON button |
21 L |
