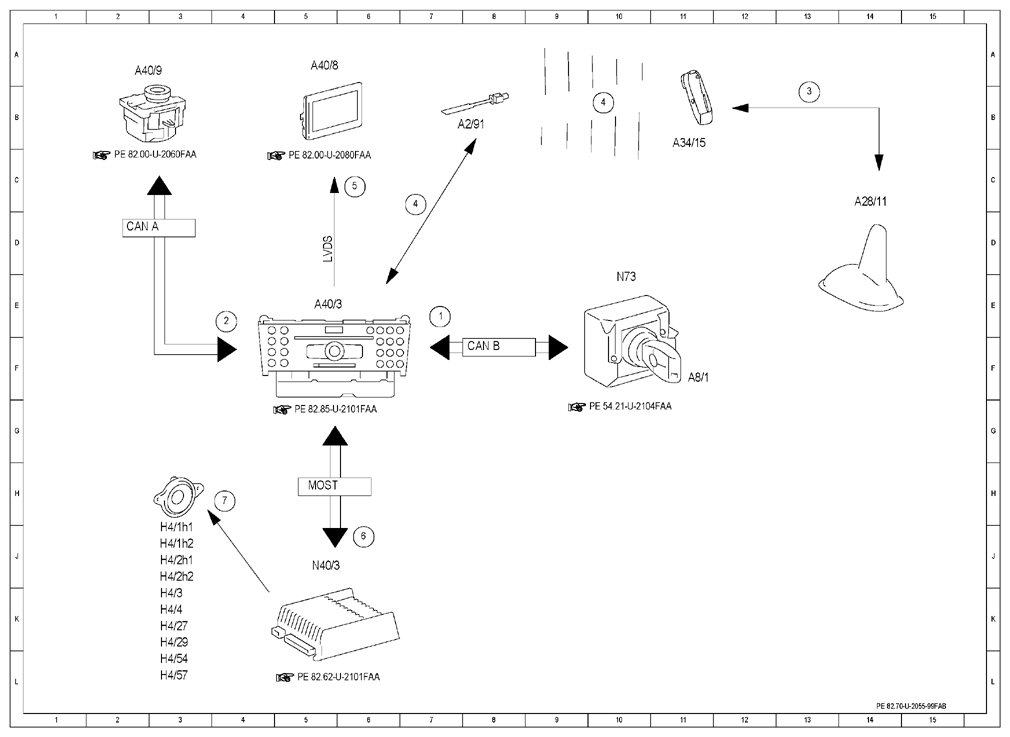

| 1 |
Circuit 15, status |
7 E |
| 2 |
Audio/COMAND controller, request |
4 E |
| 3 |
Telephone, signal |
13 A |
| 4 |
Bluetooth, signal |
7 C |
| 4 |
Bluetooth, signal |
10 B |
| 5 |
Audio/COMAND display, message |
6 C |
| 6 |
Sound system amplifier, actuation |
6 H |
| 7 |
Voice output, signal |
4 H |
| A2/91 |
Bluetooth antenna |
8 B |
| A28/11 |
Multifunction antenna |
14 C |
| A34/15 |
Mobile phone holder |
11 B |
| A40/3 |
COMAND control unit |
5 E |
| A40/8 |
Audio/COMAND display |
5 A |
| A40/9 |
Audio/COMAND control panel |
2 A |
| A8/1 |
Transmitter key |
11 F |
| CAN A |
Telematics CAN |
2 D |
| CAN B |
Interior CAN |
8 E |
| H4/1h1 |
Left front door tweeter |
3 H |
| H4/1h2 |
Left front door bass speaker |
3 J |
| H4/27 |
Center instrument panel speaker |
3 K |
| H4/29 |
Bass speaker |
3 K |
| H4/2h1 |
Right front door tweeter |
3 J |
| H4/2h2 |
Right front door bass speaker |
3 J |
| H4/3 |
Left rear door speaker |
3 J |
| H4/4 |
Right rear door speaker |
3 K |
| H4/54 |
Left rear surround speaker |
3 K |
| H4/57 |
Right rear surround speaker |
3 L |
| MOST |
Media Oriented System Transport |
5 H |
| N40/3 |
Sound system amplifier control unit |
5 J |
| N73 |
Electronic ignition switch control unit |
10 D |
