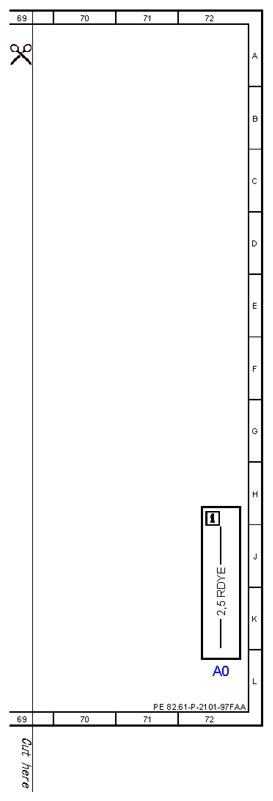

| A0 |
Color code key |
72L |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
57L |
| A2/19 |
Rear window antenna FM antenna amplifier |
59L |
| A2/19 |
Rear window antenna FM antenna amplifier |
56L |
| A2/51 |
Rear spoiler antenna |
64L |
| A2/53 |
Mobile phone and stationary heater radio remote control antenna splitter |
14L |

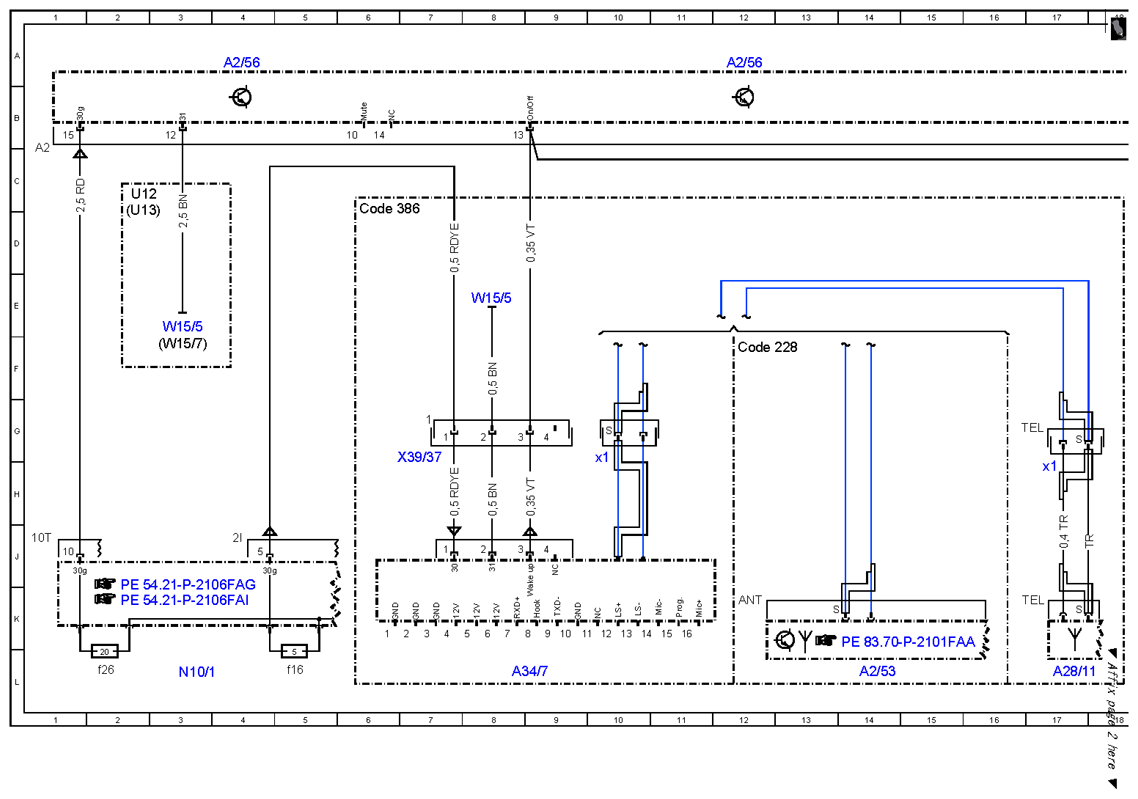

| A2/56 |
Radio with auto pilot system |
4A |
| A2/56 |
Radio with auto pilot system |
12A |
| A2/56 |
Radio with auto pilot system |
20A |
| A2/56 |
Radio with auto pilot system |
28A |
| A2/56 |
Radio with auto pilot system |
36A |
| A2/56 |
Radio with auto pilot system |
44A |
| A2/56 |
Radio with auto pilot system |
52A |
| A2/56 |
Radio with auto pilot system |
60A |
| A2/56 |
Radio with auto pilot system |
67A |
| A2/71 |
Rear window antenna amplifier 1 |
61L |
| A2/91 |
Bluetooth antenna |
67L |
| A2/91x1 |
Bluetooth antenna electrical connector |
67J |
| A28/11 |
Multifunction antenna |
17L |
| A28/11 |
Multifunction antenna |
66L |
| A28/11x1 |
Multifunction antenna electrical connector |
17H |
| A28/11x1 |
Multifunction antenna electrical connector |
65H |
| A28/13 |
Compensator/cellular telephone system UMTS |
20L |
| A34/7 |
Bluetooth module |
8L |
| A34/7x1 |
Bluetooth® module electrical connector 1 |
10H |
| A40/8 |
Audio/COMAND display |
52L |
| A67 |
Inside rearview mirror |
41L |
| A67b1 |
Hands-free system microphone |
41K |
| A67x1 |
Inside rearview mirror unit electrical connector |
39G |
| CAN A |
Telematics CAN |
47K |
| CAN B |
Interior CAN |
24K |
| Code 228 |
Stationary heater |
12F |
| Code 228 |
Stationary heater |
18D |
| Code 386 |
Mobile phone |
6D |
| H4/1 |
Left front door speaker |
32L |
| H4/1h1 |
Left front door tweeter |
32L |
| H4/1h2 |
Left front door bass speaker |
31L |
| H4/2 |
Right front door speaker |
34L |
| H4/2h1 |
Right front door tweeter |
35L |
| H4/2h2 |
Right front door bass speaker |
34L |
| H4/3 |
Left rear door speaker |
38L |
| H4/4 |
Right rear door speaker |
36L |
| MOST |
Media Oriented System Transport |
28K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f16 |
Fuse 16 |
5L |
| N10/1f26 |
Fuse 26 |
2L |
| U110 |
Valid for overhead control panel with CAN |
39D |
| U111 |
Valid for overhead control panel without CAN |
39D |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
2D |
| U500 |
Not valid for sound system |
30A |
| U57 |
Valid for model 204.2 |
58E |
| U58 |
Valid for model 204.0 |
55E |
| U59 |
Valid for model 204.9 |
58F |
| U59 |
Valid for model 204.9 |
61F |
| W15/5 |
Left front footwell ground point |
8E |
| W15/5 |
Left front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
3F |
| X1/19 |
AM/FM antenna amplifier electrical connector |
59H |
| X1/19 |
AM/FM antenna amplifier electrical connector |
60H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
24L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
47L |
| X35/1 |
Left front door electrical connector |
30H |
| X35/2 |
Right front door electrical connector |
33H |
| X35/3 |
Left rear door electrical connector |
37H |
| X35/4 |
Right rear door electrical connector |
36H |
| X39/37 |
Mobile phone electrical connector |
7H |
| X39/45 |
AUX jack electrical connector |
45H |
| Z20/73 |
Tracer wire connector sleeve |
44G |
| Z35/10 |
MOST wake-up signal connector sleeve |
26E |
