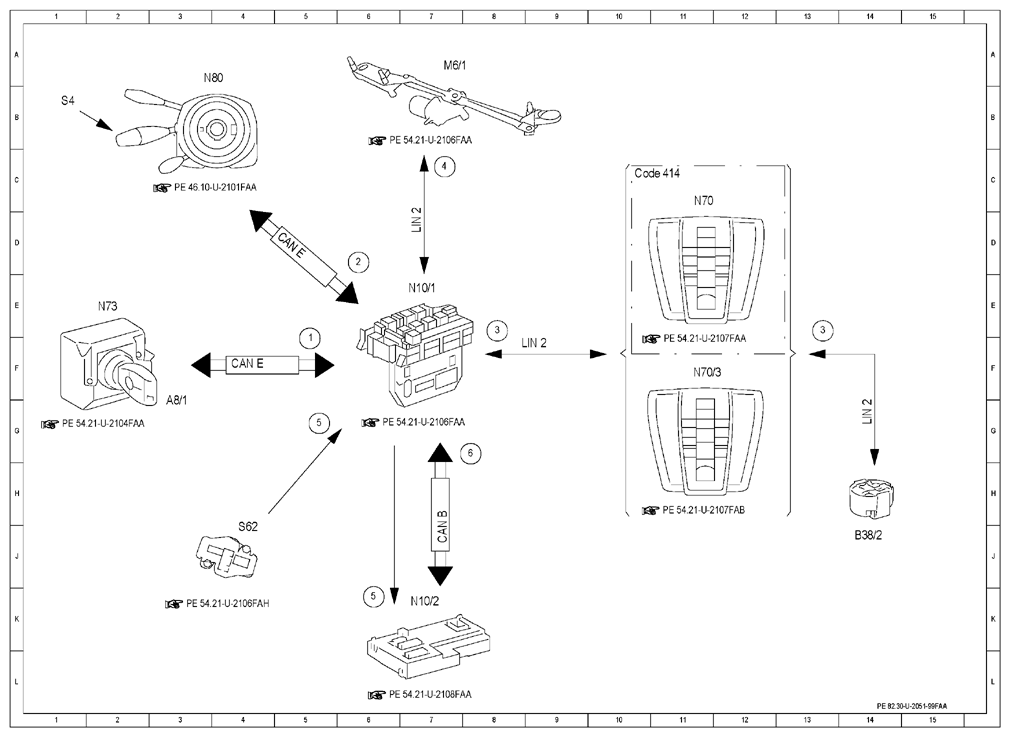

| 1 |
Circuit 15, status |
5 E |
| 2 |
Combination switch, switch position |
6 D |
| 3 |
Rain/light sensor, status |
8 E |
| 3 |
Rain/light sensor, status |
13 E |
| 4 |
Wiper motor, actuation |
7 C |
| 5 |
Engine hood anti-theft alarm system switch, signal |
5 G |
| 5 |
Engine hood anti-theft alarm system switch, signal |
6 J |
| 6 |
Engine hood anti-theft alarm system switch, status |
8 G |
| A8/1 |
Transmitter key |
3 F |
| B38/2 |
Rain/light sensor |
14 H |
| CAN B |
Interior CAN |
7 J |
| CAN E |
Chassis CAN |
4 F |
| CAN E |
Chassis CAN |
5 D |
| Code 414 |
Power glass tilting/sliding sunroof |
10 C |
| LIN 2 |
Wiper/inside rearview mirror LIN |
7 D |
| LIN 2 |
Wiper/inside rearview mirror LIN |
9 E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
14 G |
| M6/1 |
Wiper motor |
7 A |
| N10/1 |
Front SAM control module with fuse and relay module |
7 E |
| N10/2 |
Rear SAM control module with fuse and relay module |
7 K |
| N70 |
Overhead control panel control module |
11 C |
| N70/3 |
Overhead control panel electronics |
11 F |
| N73 |
Electronic ignition switch control unit |
2 E |
| N80 |
Steering column module control unit |
4 A |
| S4 |
Combination switch |
1 B |
| S62 |
Engine hood anti-theft alarm system switch |
4 H |
