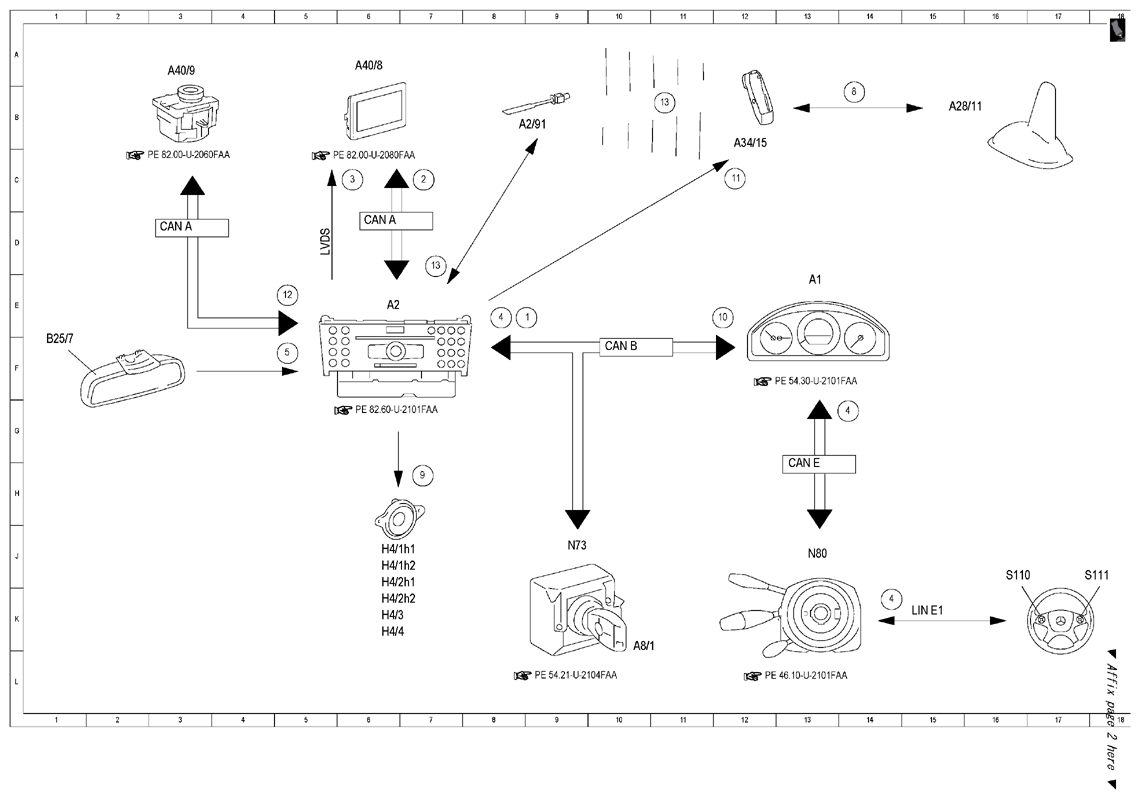

| 1 |
Circuit 15, status |
9 E |
| 10 |
Instrument cluster, message |
12 E |
| 11 |
Mobile phone switch-on request, signal |
12 C |
| 12 |
Audio/COMAND controller, request |
5 E |
| 13 |
Bluetooth, signal |
7 D |
| 13 |
Bluetooth, signal |
11 B |
| 2 |
Switch-on request, signal |
7 C |
| 3 |
Audio/COMAND display, signal |
6 C |
| 4 |
Multifunction steering wheel button group, signal |
8 E |
| 4 |
Multifunction steering wheel button group, signal |
14 G |
| 4 |
Multifunction steering wheel button group, signal |
14 J |
| 5 |
Voice input, signal |
5 F |
| 8 |
Telephone, signal |
14 A |
| 9 |
Voice output, signal |
7 H |
| A1 |
Instrument cluster |
13 D |
| A2 |
Radio |
6 E |
| A2/91 |
Bluetooth antenna |
9 B |
| A28/11 |
Multifunction antenna |
15 B |
| A34/15 |
Mobile phone holder |
12 B |
| A40/8 |
Audio/COMAND display |
6 A |
| A40/9 |
Audio/COMAND control panel |
3 A |
| A8/1 |
Transmitter key |
10 K |
| B25/7 |
Voice control system microphone |
1 E |
| CAN A |
Telematics CAN |
3 D |
| CAN A |
Telematics CAN |
6 C |
| CAN B |
Interior CAN |
10 E |
| CAN E |
Chassis CAN |
13 G |
| H4/1h1 |
Left front door tweeter |
6 J |
| H4/1h2 |
Left front door bass speaker |
6 J |
| H4/2h1 |
Right front door tweeter |
6 J |
| H4/2h2 |
Right front door bass speaker |
6 J |
| H4/3 |
Left rear door speaker |
6 K |
| H4/4 |
Right rear door speaker |
6 K |
| LIN E1 |
Steering LIN |
15 K |
| N73 |
Electronic ignition switch control unit |
9 J |
| N80 |
Steering column module control unit |
13 J |
| S110 |
Left multifunction steering wheel button group |
16 J |

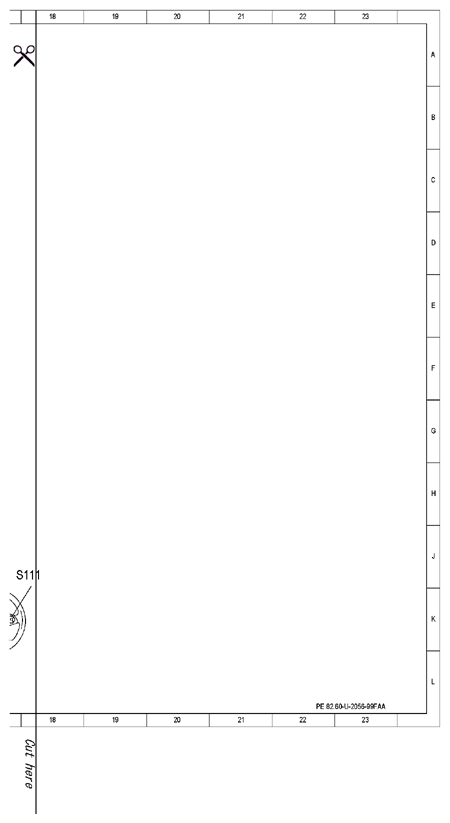

| S111 |
Right multifunction steering wheel button group |
18 J |
