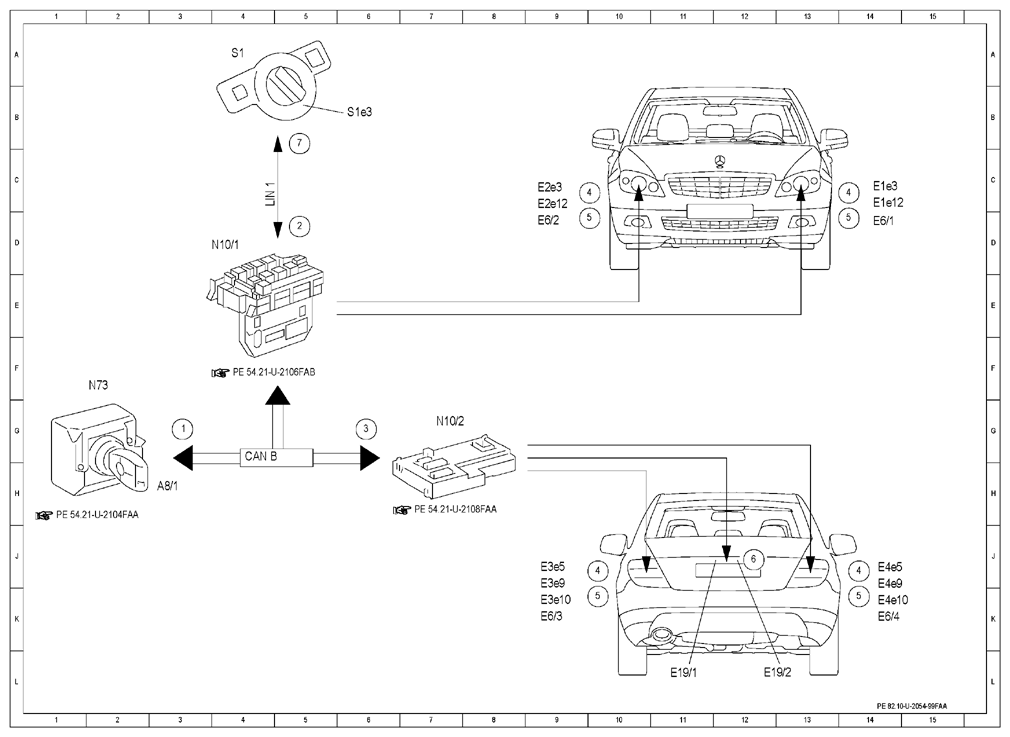

| 1 |
Circuit 15, status |
3 G |
| 2 |
Exterior lights switch, status |
5 D |
| 3 |
Standing and parking lights, request |
6 G |
| 4 |
Standing and parking lights, actuation |
10 C |
| 4 |
Standing and parking lights, actuation |
10 J |
| 4 |
Standing and parking lights, actuation |
14 C |
| 4 |
Standing and parking lights, actuation |
14 J |
| 5 |
Side-marker lamp, actuation |
10 C |
| 5 |
Side-marker lamp, actuation |
10 J |
| 5 |
Side-marker lamp, actuation |
14 C |
| 5 |
Side-marker lamp, actuation |
14 J |
| 6 |
License plate lamp, actuation |
12 J |
| 7 |
Standing lights indicator lamp, actuation |
5 B |
| A8/1 |
Transmitter key |
3 H |
| CAN B |
Interior CAN |
4 G |
| E19/1 |
Left license plate lamp |
11 L |
| E19/2 |
Right license plate lamp |
13 L |
| E1e12 |
Left front standing light 2 |
14 C |
| E1e3 |
Left front standing and parking lamp |
14 C |
| E2e12 |
Right front standing light 2 |
9 C |
| E2e3 |
Right front standing and parking lamp |
9 C |
| E3e10 |
Left inner stop lamp and taillamp |
9 K |
| E3e5 |
Left rear fog lamp |
9 J |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
9 J |
| E4e10 |
Right inner stop lamp and taillamp |
14 K |
| E4e5 |
Right rear fog lamp |
14 J |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
14 J |
| E6/1 |
Left front side-marker lamp |
14 C |
| E6/2 |
Right front side-marker lamp |
9 C |
| E6/3 |
Left rear side-marker lamp |
9 K |
| E6/4 |
Right rear side-marker lamp |
14 K |
| LIN 1 |
Instrument panel LIN |
5 C |
| N10/1 |
Front SAM control module with fuse and relay module |
4 D |
| N10/2 |
Rear SAM control module with fuse and relay module |
7 G |
| N73 |
Electronic ignition switch control unit |
2 F |
| S1 |
Exterior lights switch |
4 A |
| S1e3 |
Standing lamps indicator lamp |
6 B |
