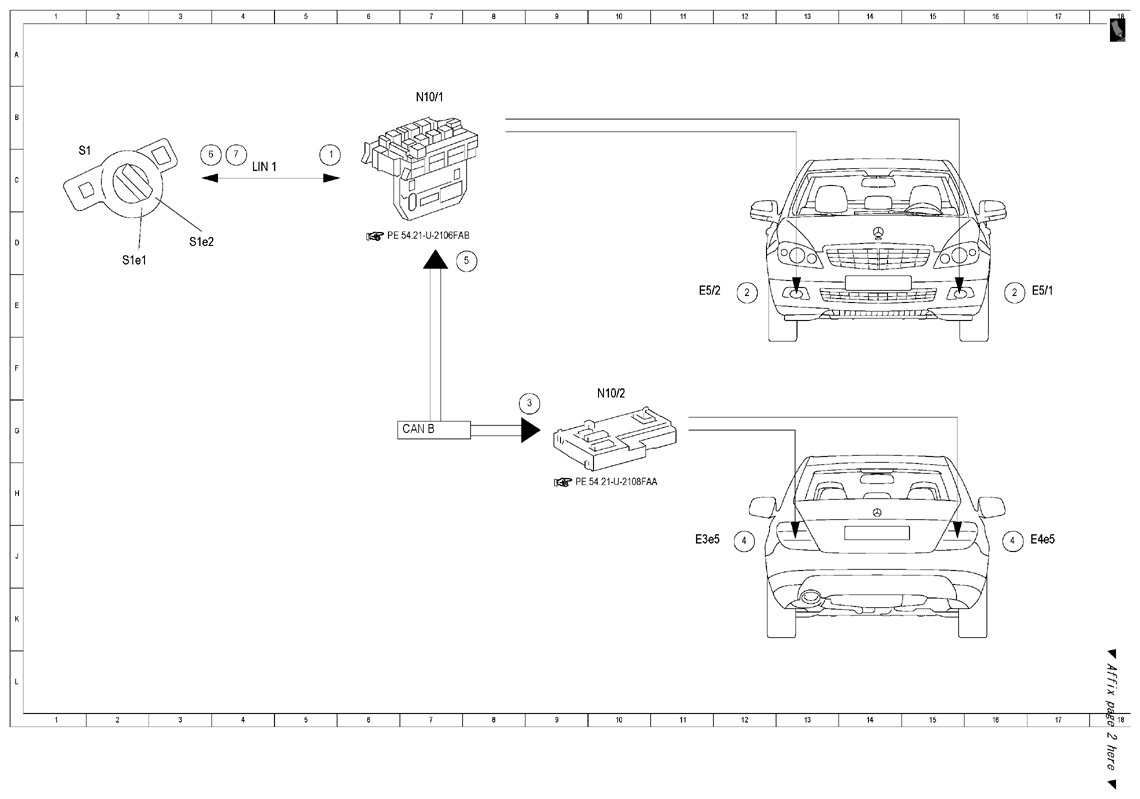

| 1 |
Exterior lights switch, status |
6 B |
| 2 |
Front fog lamps, actuation |
12 E |
| 2 |
Front fog lamps, actuation |
16 E |
| 3 |
Rear fog light, request |
9 F |
| 4 |
Rear fog light, actuation |
12 J |
| 4 |
Rear fog light, actuation |
16 J |
| 5 |
Trailer, status |
8 D |
| 6 |
Front fog lamps indicator lamp, actuation |
4 B |
| 7 |
Rear fog light indicator light, actuation |
4 B |
| CAN B |
Interior CAN |
7 G |
| E3e5 |
Left rear fog lamp |
11 J |
| E4e5 |
Right rear fog lamp |
17 J |
| E5/1 |
Left fog light |
17 E |
| E5/2 |
Right fog light |
11 E |
| LIN 1 |
Instrument panel LIN |
4 C |
| N10/1 |
Front SAM control module with fuse and relay module |
7 B |
| N10/2 |
Rear SAM control module with fuse and relay module |
10 F |
| S1 |
Exterior lights switch |
2 B |
| S1e1 |
Fog lamp indicator lamp |
2 D |
| S1e2 |
Rear fog lamp indicator lamp |
3 D |
