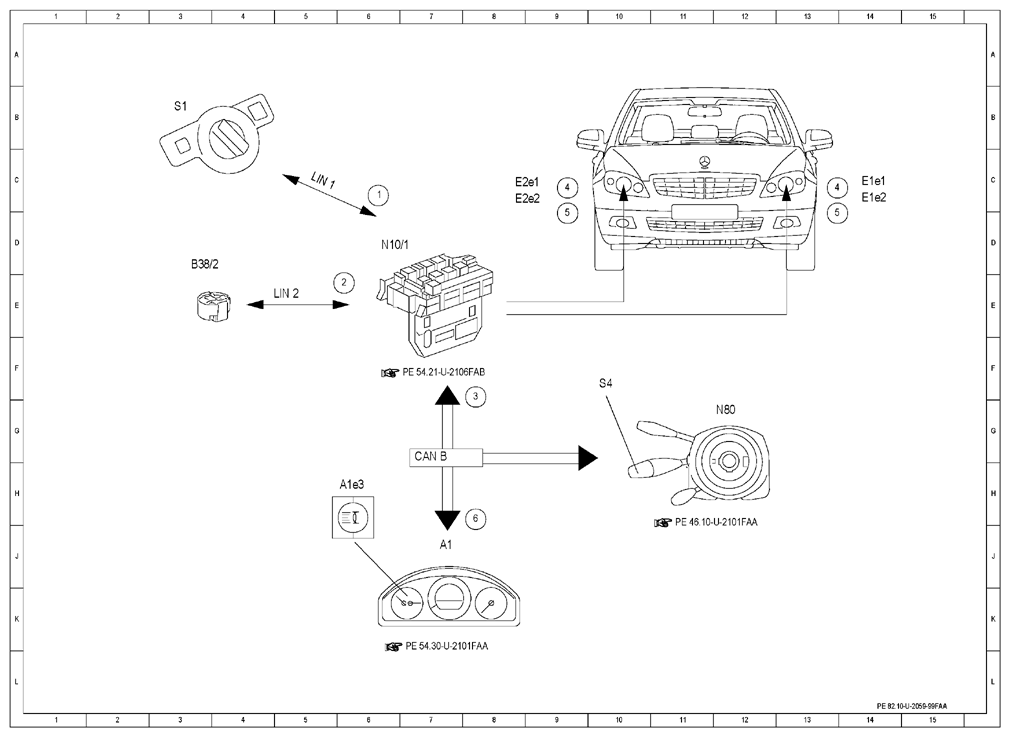

| 1 |
Exterior lights switch, status |
6 C |
| 2 |
Ambient brightness, signal |
6 D |
| 3 |
Combination switch, switch position |
8 F |
| 4 |
High beams, actuation |
9 C |
| 4 |
High beams, actuation |
14 C |
| 5 |
Low beams, actuation |
9 C |
| 5 |
Low beams, actuation |
14 C |
| 6 |
High beam indicator lamp, actuation |
8 H |
| A1 |
Instrument cluster |
7 J |
| A1e3 |
High beam indicator lamp |
6 H |
| B38/2 |
Rain/light sensor |
3 D |
| CAN B |
Interior CAN |
7 G |
| E1e1 |
Left high beam |
14 C |
| E1e2 |
Left low beam |
14 C |
| E2e1 |
Right high beam |
9 C |
| E2e2 |
Right low beam |
9 C |
| LIN 1 |
Instrument panel LIN |
5 C |
| LIN 2 |
Wiper/inside rearview mirror LIN |
5 E |
| N10/1 |
Front SAM control module with fuse and relay module |
6 D |
| N80 |
Steering column module control unit |
12 G |
| S1 |
Exterior lights switch |
3 B |
| S4 |
Combination switch |
10 F |
