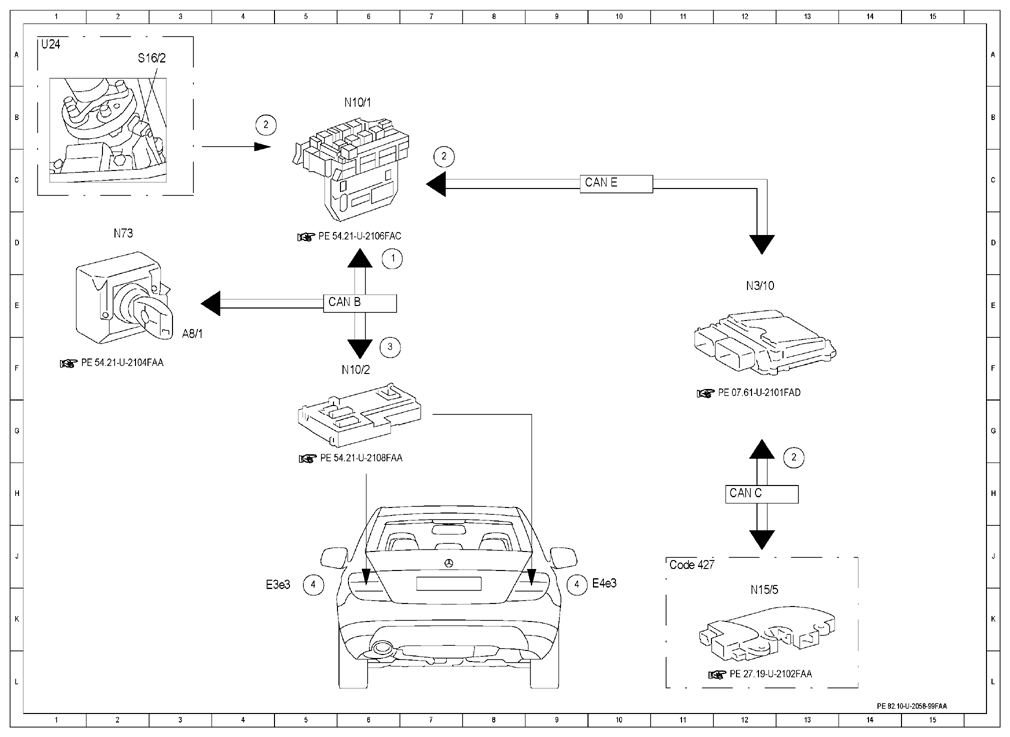

| 1 |
Circuit 15, status |
7 D |
| 2 |
Reverse gear, status |
5 B |
| 2 |
Reverse gear, status |
7 B |
| 2 |
Reverse gear, status |
13 G |
| 3 |
Backup lamp, request |
6 E |
| 4 |
Backup lamp, actuation |
5 J |
| 4 |
Backup lamp, actuation |
9 J |
| A8/1 |
Transmitter key |
3 E |
| CAN B |
Interior CAN |
6 E |
| CAN C |
Drive train CAN |
12 H |
| CAN E |
Chassis CAN |
10 C |
| Code 427 |
7-speed automatic transmission |
11 J |
| E3e3 |
Left backup lamp |
5 J |
| E4e3 |
Right backup lamp |
10 J |
| N10/1 |
Front SAM control module with fuse and relay module |
6 B |
| N10/2 |
Rear SAM control module with fuse and relay module |
6 F |
| N15/5 |
Electronic selector lever module control module |
12 J |
| N3/10 |
ME-SFI [ME] control module |
12 E |
| N73 |
Electronic ignition switch control unit |
2 D |
| S16/2 |
Backup lamp switch |
3 A |
| U24 |
Valid for manual transmission |
1 A |
