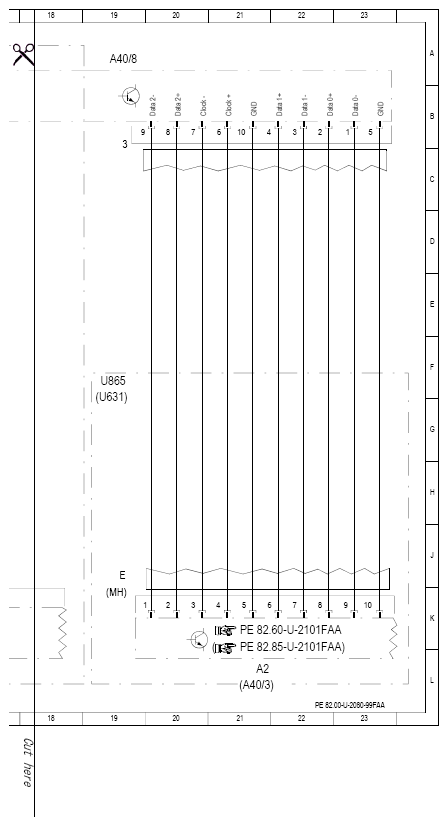

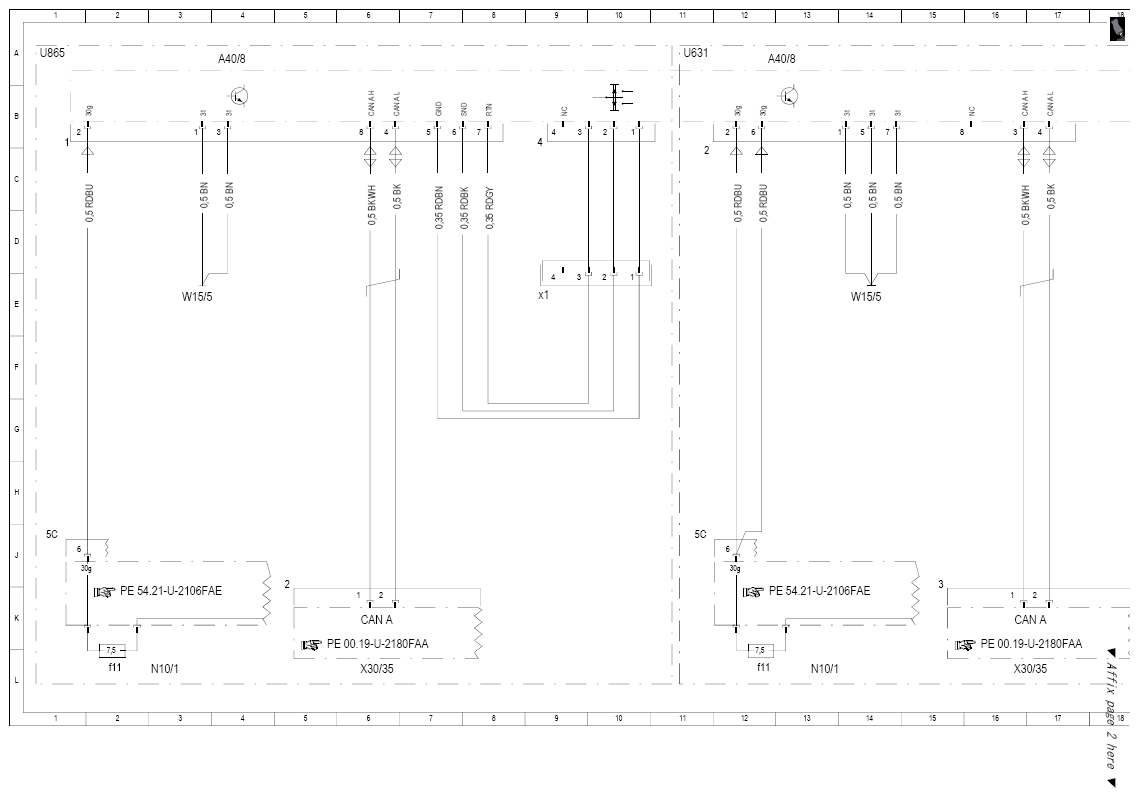

| A2 |
Radio |
21 L |
| A40/3 |
COMAND control unit |
21 L |
| A40/8 |
Audio/COMAND display |
4 A |
| A40/8 |
Audio/COMAND display |
13 A |
| A40/8 |
Audio/COMAND display |
19 A |
| A40/8x1 |
Audio/COMAND display connector |
9 E |
| CAN A |
Telematics CAN |
6 K |
| CAN A |
Telematics CAN |
17 K |
| N10/1 |
Front SAM control module with fuse and relay module |
3 L |
| N10/1 |
Front SAM control module with fuse and relay module |
13 L |
| N10/1f11 |
Fuse 11 |
2 L |
| N10/1f11 |
Fuse 11 |
12 L |
| U631 |
Valid for COMAND |
11 A |
| U631 |
Valid for COMAND |
19 F |
| U865 |
Valid for Audio 20 radio |
1 A |
| U865 |
Valid for Audio 20 radio |
19 F |
| W15/5 |
Left front footwell ground point |
3 E |
| W15/5 |
Left front footwell ground point |
14 E |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
6 L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
16 L |
