Component description for the radio - GF82.60-P-3122CEB

MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio)

MODEL 204.0/2 as of model year 2009 up to model year 2012 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)

MODEL 204.9 up to model year 2013 with CODE 510 (Audio 20 with CD changer) without CODE 523 (MB Audio 20 radio)

MODEL 204.9 up to model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 510 (Audio 20 with CD changer)

Location

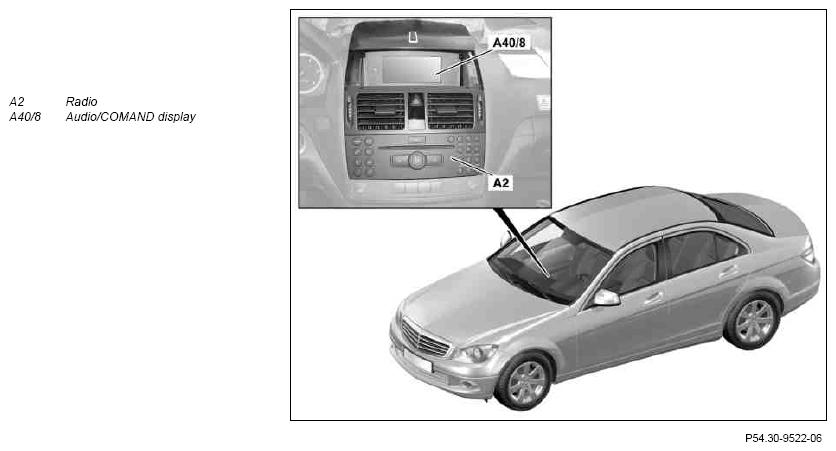

The radio is located in the center console.

Shown on model 204.0

Task

• Central control and display device for entertainment and communications systems integrated into vehicle
• Reading in the controls and input signals
• Evaluation of input factors
• Actuates output media

Central control and display device for entertainment and communications systems integrated into vehicle

The radio provides the user with a structured and uniform interface.

• RADIO (FM, MW, SW, LW, AM, Weatherband (WB), Digital Audio Broadcasting (Digital Radio) (DAB) (with code (537) Digital radio and code (833) Great Britain version), Satellite Digital Audio Radio (Satellite Radio) (SDAR) (with code (536) SIRIUS satellite radio))
• DISC (CD/MP3/Media Interface (with code (518) Media Interface)/AUX)
• Base function for 6-disk CD changer (with code (510) Audio 20 with CD changer)
• TEL (telephone with phone book function, SMS (with code (386) Mobile phone or with code (389) Mobile phone pre-installation with universal interface, USA/Canada), call lists)

The radio generates a structured and standard interface, which is then shown on the Audio/COMAND display.

Reading in the controls and input signals

The input factors are read in via the following connections:

• CAN
• Media Oriented System Transport (MOST)
• Direct line

CAN

The radio is a subscriber of the interior CAN (CAN B) and the telematics CAN (CAN A).

Media Oriented System Transport (MOST)

The radio receives control and audio signals from the following control units:

• Sound system amplifier control unit (N40/3), with code (810) Sound system
• Satellite Digital Audio Radio (SDAR) control unit (N87/5), with code (536) SIRIUS satellite radio
• Digital Audio Broadcasting control unit (N87/3), with code (537) Digital radio and with code (833) Great Britain version
• Media interface control unit (N125/1), with code (518) Media Interface

Direct line

The radio is equipped with the following direct connections:

• Circuit 30g
• Circuit 31
• Wake-up for MOST (bi-directional)
• Telephone MUTE (with code (359) TELEAID emergency call system)
• FM, AM and CL [ZV] antenna amplifier (A2/18), on model 204.0
• Rear window FM antenna amplifier (A2/19)
• Rear window antenna amplifier 1 (A2/71), on model 204.2/9
• Bluetooth antenna (A2/91)
• Hands-free system microphone (A67b1)
• AUX electrical connector (X39/45) (access in glove compartment, on model 204.9 as of 1.6.2011 in stowage compartment (telephone compartment) below center armrest), except code (518) Media Interface
• External fan (diagnosis)

Evaluation of input factors

The input values are processed in the radio.

Actuates output media

The signals are transmitted via the following connections:

• CAN
• MOST
• Direct line

CAN

The radio is a subscriber of the interior CAN and the telematics CAN.

MOST

Control and audio signals to following control units:

• Sound system amplifier control unit, with code (810) Sound system
• Satellite Digital Audio Radio (SDAR) control unit, model 204.0/9 with code (536) SIRIUS satellite radio
• Digital Audio Broadcasting control unit, model 204.0/2, with code (537) Digital radio and with code (833) Great Britain version
• Media interface control unit, with code (518) Media Interface

Direct line

• Audio OUT (speakers), except code (810) Sound system
• External fan (power supply and speed control)
• Switching voltage for the mobile phone cradle (A34/15) via the contact plate and the Bluetooth module (A34/7), with code (386) Mobile phone or with code (389) Mobile phone pre-installation with universal interface, USA/Canada
• Video OUT: Low voltage differential signaling (LVDS) line, transmits picture signals from the radio to the Audio/COMAND display via a copper line

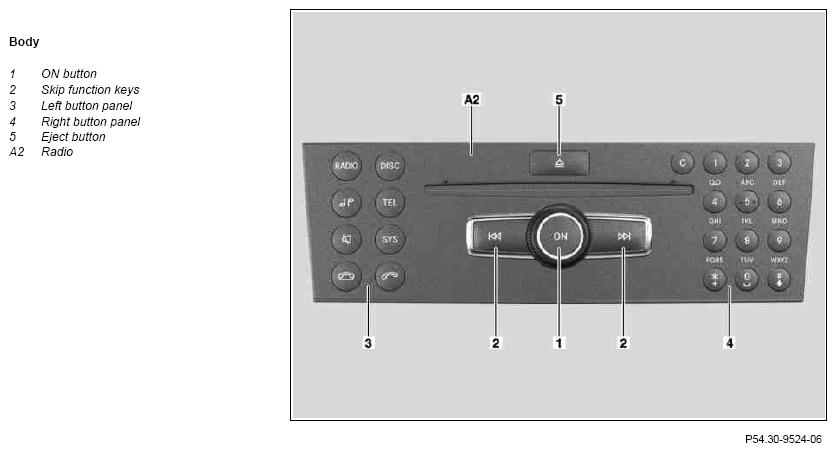

Body

Function

The button signals for the operating panels on the radio are read in and made available to the integrated central computer. Button actuation is processed further in the central computer. If the "ON" button on the radio is pressed, the radio switches on. The volume is regulated for each audio source set by turning the ON button.

CD drive or CD changer with integrated CD drive

The integrated CD drive can be used to play audio CDs (including in MP3 format).

Pressing the function keys in the left button panel enables the user to switch to the desired system components.

Technical data Designation	Unit	Values	Tolerance range	Remarks
Radio
Voltage supply	V	12		Battery voltage UB
Voltage limits	V	9		Minimum UBmin
		16		Maximum UBmax
Power consumption	A	15		Rated power consumption IBmax
		5		Rated power consumption IModel
		approx. 4.5		Action speaker IAction
		approx. 0.1		Action cradle ON/OFF IAction
	μA	180		No-load current I0
Reverse polarity protection				Yes
Additional specific parameters				None
Special features				The radio is protected with a 10 A fuse in the MQS-40 connector at the rear panel.
Flash capability/coding capability				YES / k. A.

Wiring diagram for radio (RD) control unit

A2

PE82.60-P-2101-97FAA
