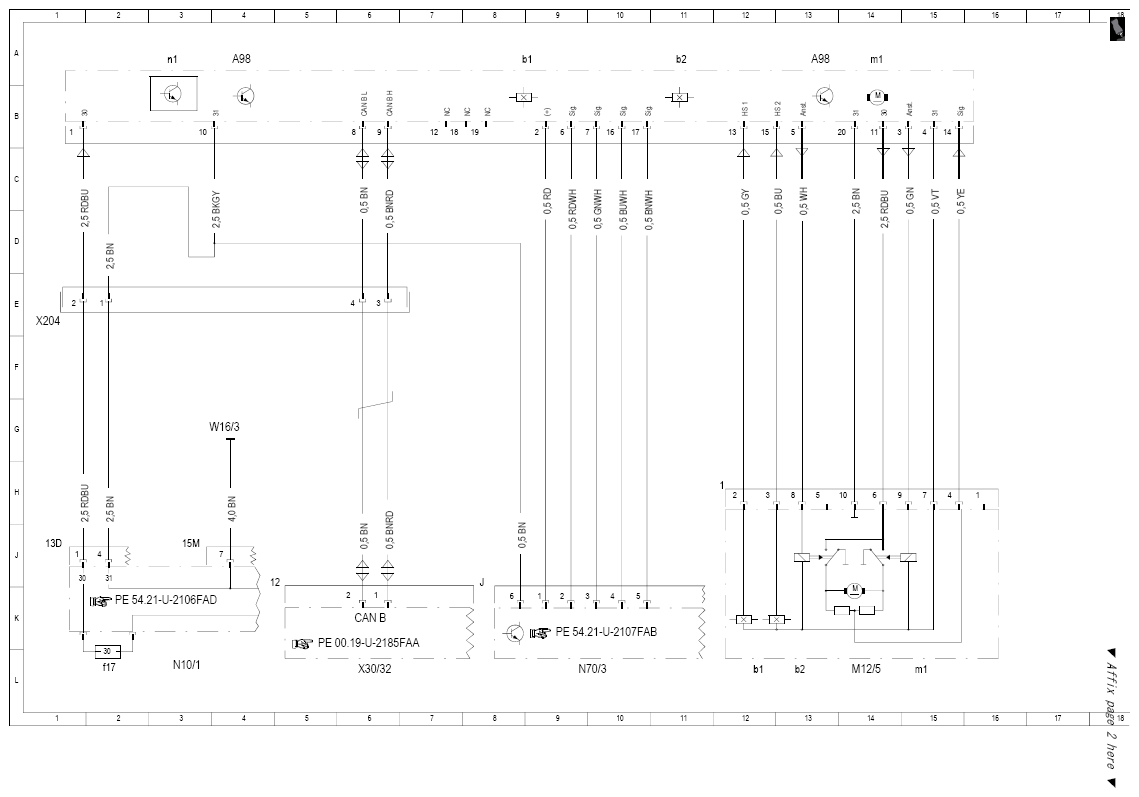

| A98 |
Panoramic sliding roof control module |
4A |
| A98 |
Panoramic sliding roof control module |
13A |
| A98b1 |
Hall sensor 1, panoramic sliding roof |
8A |
| A98b2 |
Hall sensor 2, panoramic sliding roof |
11A |
| A98m1 |
Panoramic sliding roof motor |
14A |
| A98n1 |
Panoramic sliding roof control unit |
3A |
| CAN B |
Interior CAN |
6K |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
14L |
| M12/5b1 |
Hall sensor 1, panoramic sliding roof roller sun blind |
12L |
| M12/5b2 |
Hall sensor 2, panoramic sliding roof roller sun blind |
13L |
| M12/5m1 |
Panoramic sliding roof roller sun blind motor |
15L |
| N10/1 |
Front SAM control module with fuse and relay module |
3L |
| N10/1f17 |
Fuse 17 |
2L |
| N70/3 |
Overhead control panel electronics |
10L |
| W16/3 |
Left major assembly compartment ground point |
4G |
| X204 |
Panoramic sliding roof electrical connector |
1E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
6L |
