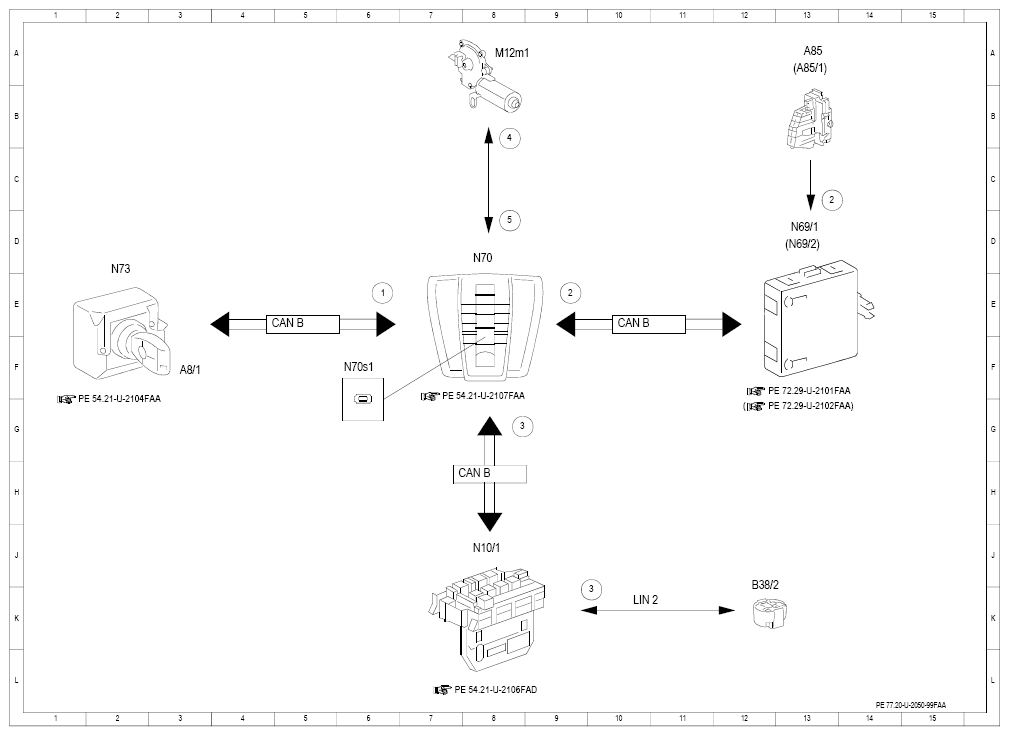

| 1 |
Circuit 15, status |
6E |
| 2 |
Door rotary tumbler switch, status |
9E |
| 2 |
Door rotary tumbler switch, status |
14C |
| 3 |
Rain/light sensor, status |
9G |
| 3 |
Rain/light sensor, status |
10J |
| 4 |
Tilting/sliding roof motor, actuation |
8B |
| 5 |
Tilting/sliding roof motor, signal |
8C |
| A8/1 |
Transmitter key |
3F |
| A85 |
Left front door lock |
13A |
| A85/1 |
Right front door lock |
13A |
| B38/2 |
Rain/light sensor |
12J |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
8H |
| CAN B |
Interior CAN |
10E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
10K |
| M12m1 |
Tilting/sliding roof motor |
8A |
| N10/1 |
Front SAM control module with fuse and relay module |
8J |
| N69/1 |
Left front door control unit |
13D |
| N69/2 |
Right front door control unit |
13D |
| N70 |
Overhead control panel control module |
8D |
| N70s1 |
Tilting/sliding roof switch |
6F |
| N73 |
Electronic ignition switch control unit |
2D |
