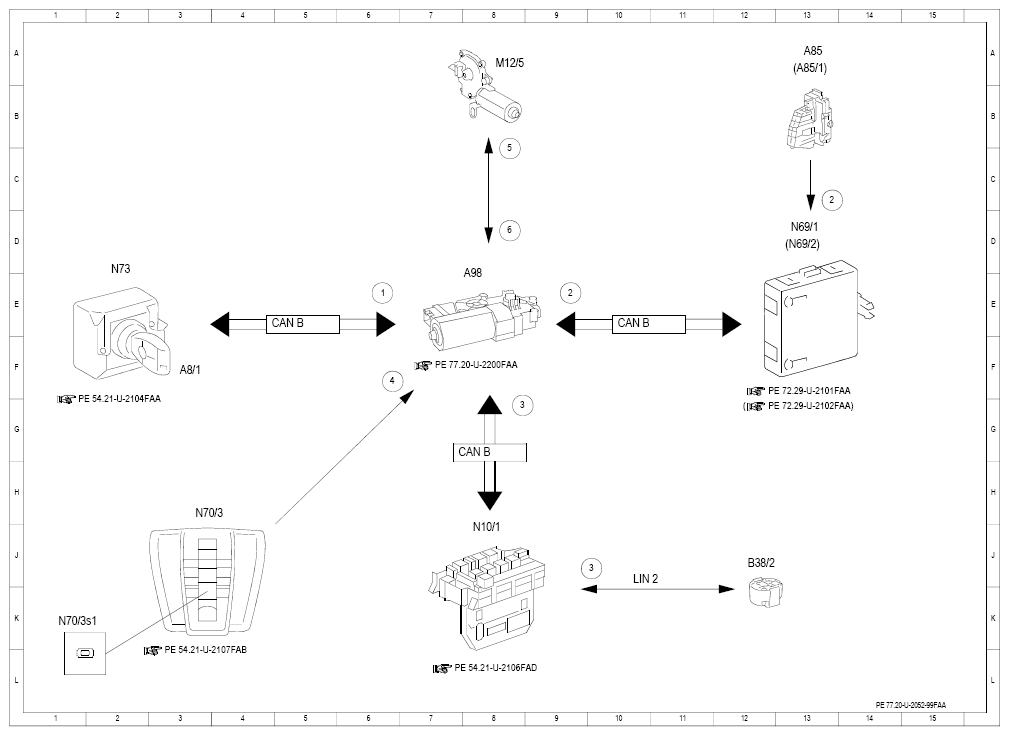

| 1 |
Circuit 15, status |
6E |
| 2 |
Door rotary tumbler switch, status |
9E |
| 2 |
Door rotary tumbler switch, status |
14C |
| 3 |
Rain/light sensor, status |
9F |
| 3 |
Rain/light sensor, status |
10J |
| 4 |
Panoramic sliding roof switch, status |
7F |
| 5 |
Panoramic sliding roof roller sun blind drive unit, actuation |
8B |
| 6 |
Panoramic sliding roof roller sun blind drive unit, signal |
8D |
| A8/1 |
Transmitter key |
3F |
| A85 |
Left front door lock |
13A |
| A85/1 |
Right front door lock |
13A |
| A98 |
Panoramic sliding roof control module |
8D |
| B38/2 |
Rain/light sensor |
12J |
| CAN B |
Interior CAN |
5E |
| CAN B |
Interior CAN |
8G |
| CAN B |
Interior CAN |
10E |
| LIN 2 |
Wiper/inside rearview mirror LIN |
10J |
| M12/5 |
Panoramic sliding roof roller sun blind drive unit |
8A |
| N10/1 |
Front SAM control module with fuse and relay module |
8H |
| N69/1 |
Left front door control unit |
13D |
| N69/2 |
Right front door control unit |
13D |
| N70/3 |
Overhead control panel electronics |
3H |
| N70/3s1 |
Panoramic sliding roof switch |
1K |
| N73 |
Electronic ignition switch control unit |
2D |
