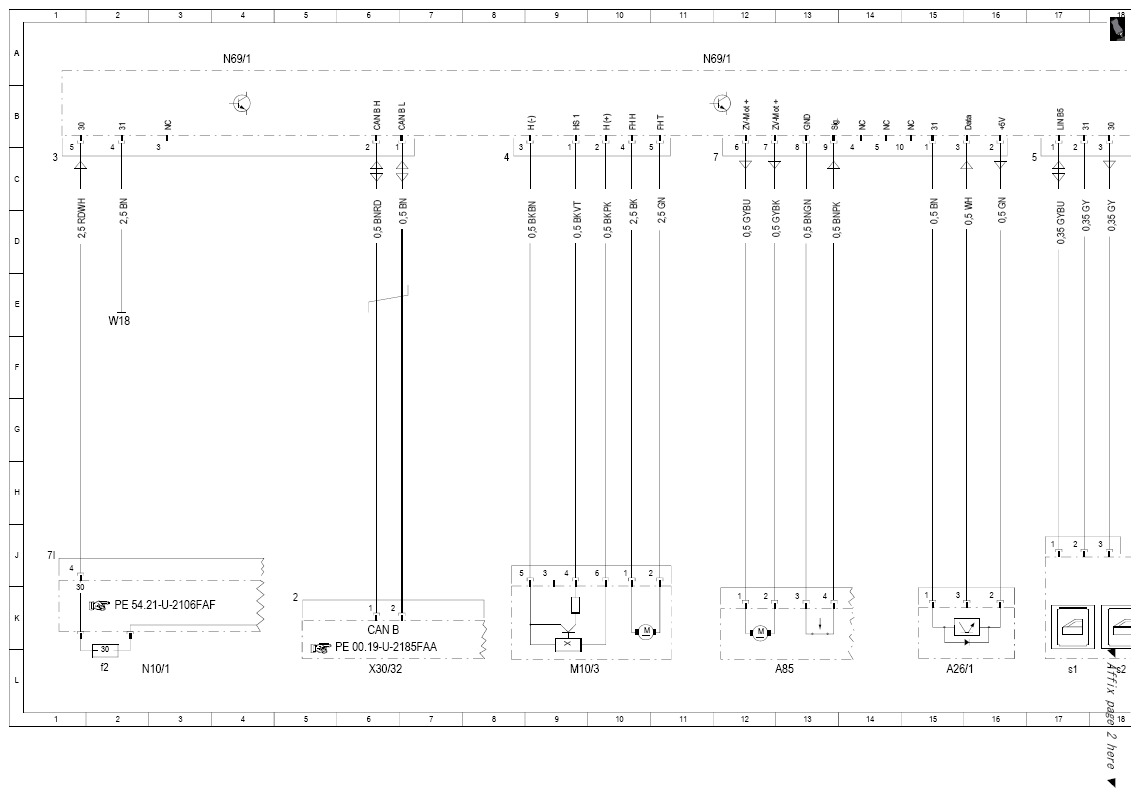

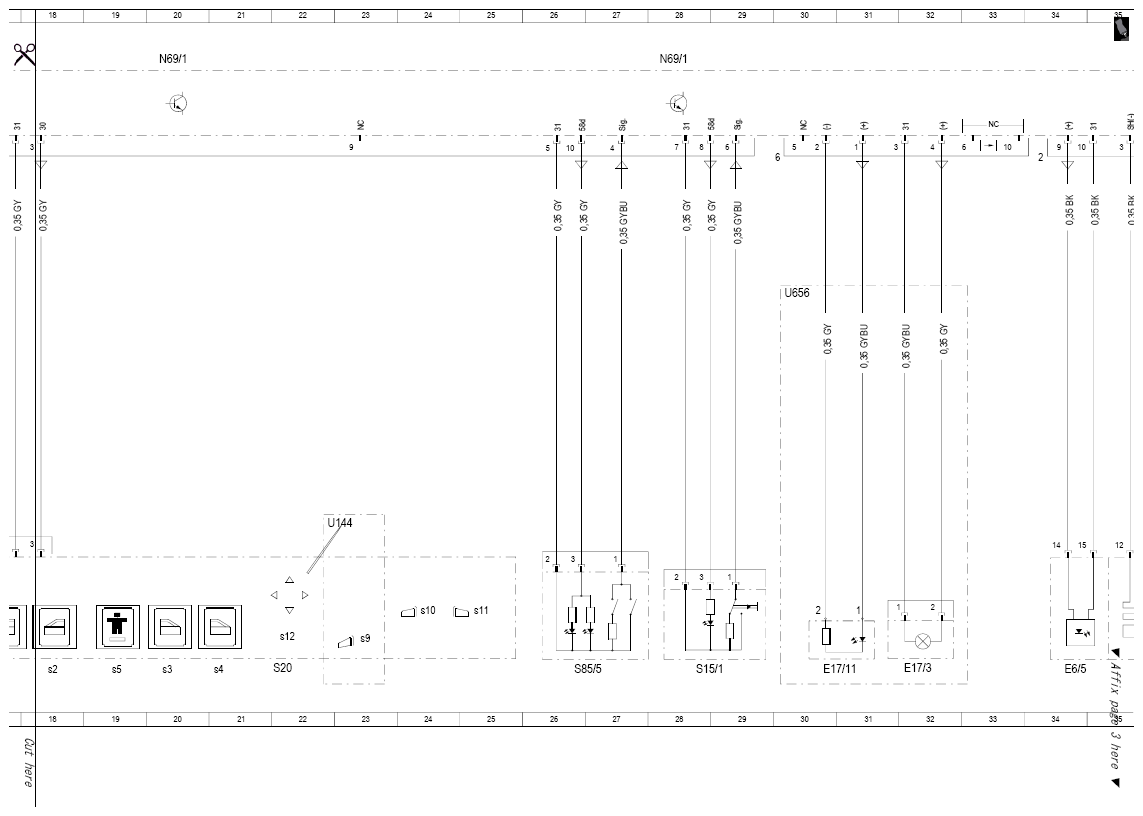

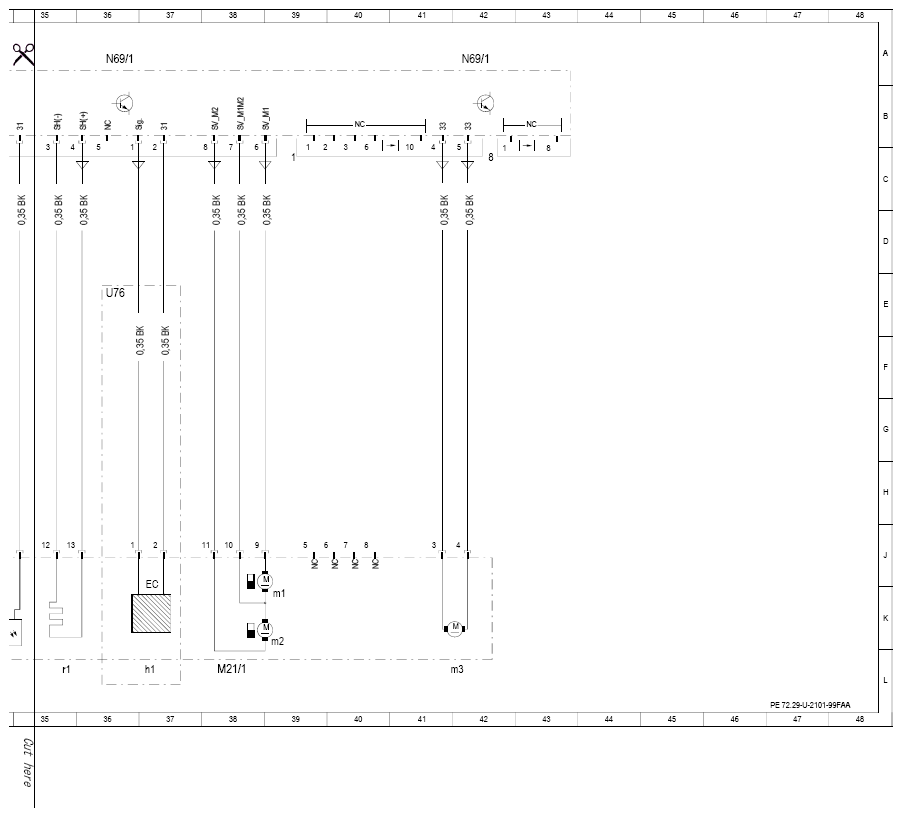

| A26/1 |
Driver-side front door infrared remote control receiver |
15 L |
| A85 |
Left front door lock |
13 L |
| CAN B |
Interior CAN |
6 K |
| E17/11 |
Left front door handle illumination |
30 L |
| E17/3 |
Left front door exit and warning lamp |
32 L |
| E6/5 |
Left exterior mirror turn signal lamp |
34 L |
| LIN B5 |
Left door LIN |
17 B |
| M10/3 |
Left front door power window motor |
9 L |
| M21/1 |
Left outside mirror |
38 L |
| M21/1h1 |
Automatic dimming mirror |
36 L |
| M21/1m1 |
Vertical inclination adjustment actuator motor |
39 J |
| M21/1m2 |
Horizontal inclination adjustment actuator motor |
38 K |
| M21/1m3 |
Outside mirror fold-in/fold-out electric motor |
41 L |
| M21/1r1 |
Mirror heater |
35 L |
| N10/1 |
Front SAM control module with fuse and relay module |
3 L |
| N10/1f2 |
Fuse 2 |
2 L |
| N69/1 |
Left front door control unit |
4 A |
| N69/1 |
Left front door control unit |
12 A |
| N69/1 |
Left front door control unit |
20 A |
| N69/1 |
Left front door control unit |
28 A |
| N69/1 |
Left front door control unit |
36 A |
| N69/1 |
Left front door control unit |
42 A |
| S15/1 |
Trunk lid release button |
28 L |
| S20 |
Driver-side power window and outside mirror adjustment switch group |
22 L |
| S20s1 |
Left front power window switch |
17 L |
| S20s10 |
Left outside mirror adjustment switch |
24 K |
| S20s11 |
Right outside mirror adjustment switch |
25 K |
| S20s12 |
Outside mirror adjustment switch |
22 K |
| S20s2 |
Right front power window switch |
18 L |
| S20s3 |
Left rear power window switch |
20 L |
| S20s4 |
Right rear power window switch |
21 L |
| S20s5 |
Rear side window child safety lock switch |
19 L |
| S20s9 |
Outside mirror fold-in/fold-out switch |
23 K |
| S85/5 |
Left front door central locking interior switch |
27 L |
| U144 |
Valid for outside mirror fold-in/out function. |
23 H |
| U656 |
Valid for interior lights package |
30 E |
| U76 |
Valid for entrance/exit lamps |
36 E |
| W18 |
Left front seat crossmember ground point |
2 E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
6 L |
