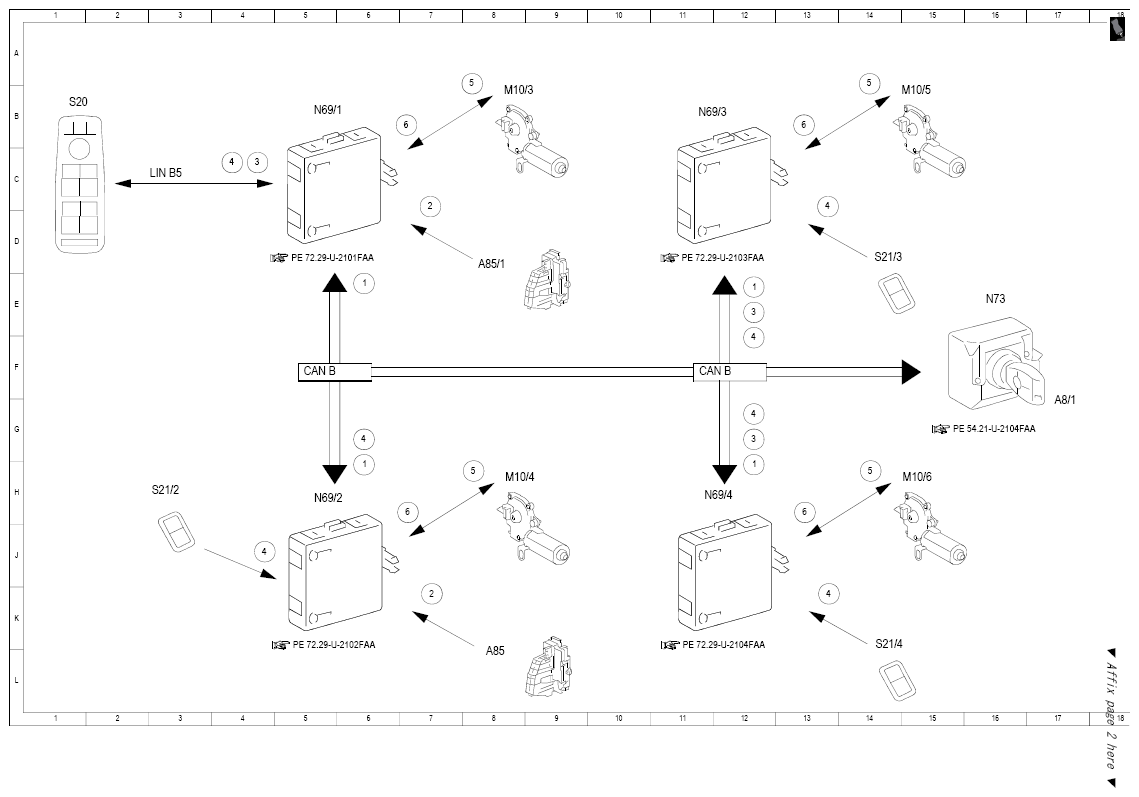

| 1 |
Circuit 15, status |
6 G |
| 1 |
Circuit 15, status |
6 D |
| 1 |
Circuit 15, status |
12 G |
| 1 |
Circuit 15, status |
12 E |
| 2 |
Door rotary tumbler switch, status |
7 C |
| 2 |
Door rotary tumbler switch, status |
7 J |
| 3 |
Child safety lock switch, status |
4 C |
| 3 |
Child safety lock switch, status |
12 G |
| 3 |
Child safety lock switch, status |
12 E |
| 4 |
Power window switch, status |
4 C |
| 4 |
Power window switch, status |
5 J |
| 4 |
Power window switch, status |
6 G |
| 4 |
Power window switch, status |
12 G |
| 4 |
Power window switch, status |
12 E |
| 4 |
Power window switch, status |
13 C |
| 4 |
Power window switch, status |
13 J |
| 5 |
Power window motor, actuation |
8 A |
| 5 |
Power window motor, actuation |
8 G |
| 5 |
Power window motor, actuation |
14 A |
| 5 |
Power window motor, actuation |
14 G |
| 6 |
Power window motor, signal |
7 B |
| 6 |
Power window motor, signal |
7 H |
| 6 |
Power window motor, signal |
13 B |
| 6 |
Power window motor, signal |
13 H |
| A8/1 |
Transmitter key |
17 F |
| A85 |
Left front door lock |
8 K |
| A85/1 |
Right front door lock |
8 D |
| CAN B |
Interior CAN |
5 F |
| CAN B |
Interior CAN |
11 F |
| LIN B5 |
Left door LIN |
3 C |
| M10/3 |
Left front door power window motor |
8 A |
| M10/4 |
Right front door power window motor |
8 H |
| M10/5 |
Left rear door power window motor |
15 A |
| M10/6 |
Right rear door power window motor |
15 H |
| N69/1 |
Left front door control unit |
5 B |
| N69/2 |
Right front door control unit |
5 H |
| N69/3 |
Left rear door control unit |
11 B |
| N69/4 |
Right rear door control unit |
12 H |
| N73 |
Electronic ignition switch control unit |
16 E |
| S20 |
Driver-side power window and outside mirror adjustment switch group |
1 B |
| S21/2 |
Passenger-side power window switch |
3 H |
| S21/3 |
Left rear power window switch |
14 D |
| S21/4 |
Right rear power window switch |
14 K |
