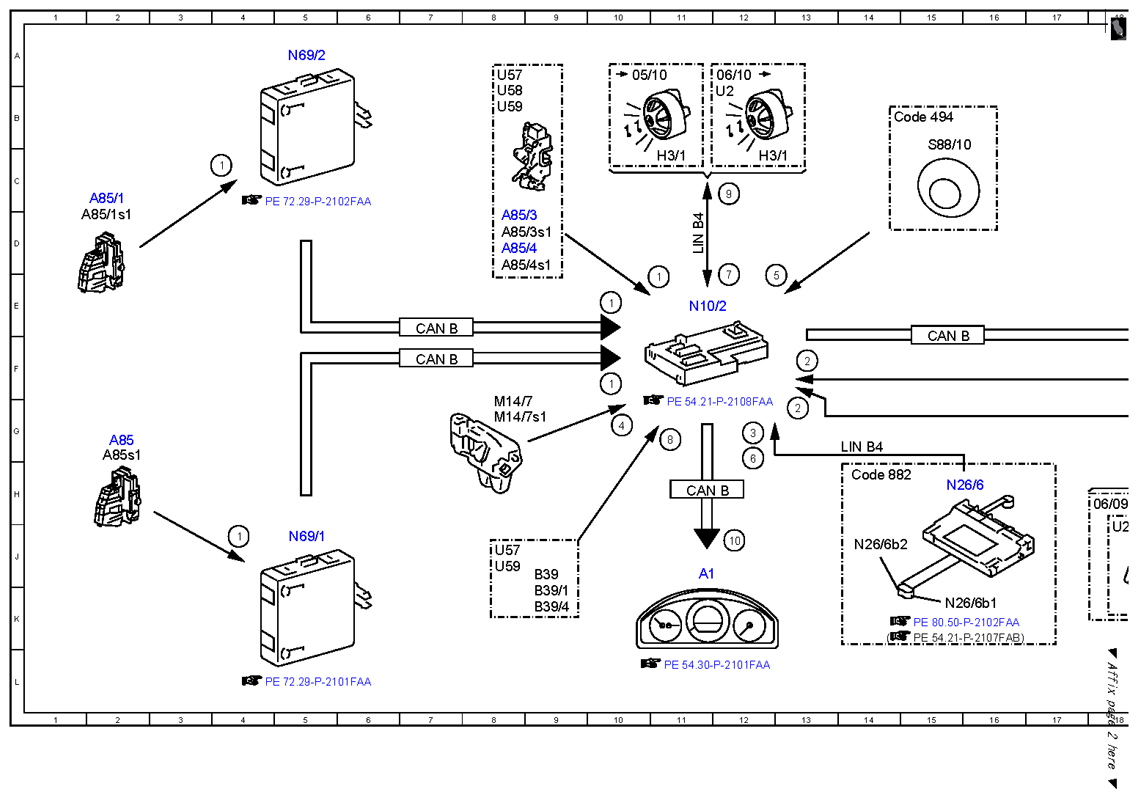

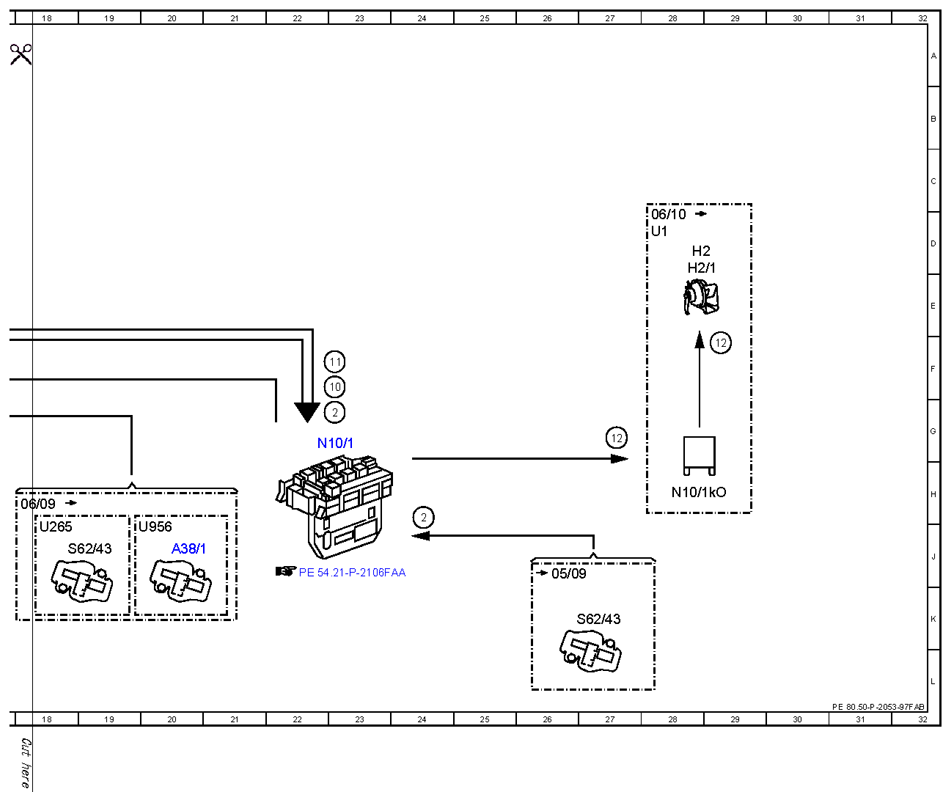

| 1 |
Door rotary tumbler switch, status |
4J |
| 1 |
Door rotary tumbler switch, status |
4C |
| 1 |
Door rotary tumbler switch, status |
10E |
| 1 |
Door rotary tumbler switch, status |
11E |
| 1 |
Door rotary tumbler switch, status |
10F |
| 10 |
ATA [EDW] alarm, signal |
12J |
| 10 |
ATA [EDW] alarm, signal |
23F |
| 11 |
Interior lamp, request |
23F |
| 12 |
Fanfare horns, actuation |
29F |
| 12 |
Fanfare horns, actuation |
27G |
| 2 |
Engine hood contact switch, status |
13G |
| 2 |
Engine hood contact switch, status |
24H |
| 2 |
Engine hood contact switch, status |
13F |
| 2 |
Engine hood contact switch, status |
23G |
| 3 |
Interior protection sensor, status |
12G |
| 4 |
Rotary tumbler switch, status |
10G |
| 5 |
Trunk lid emergency opening switch, status |
12E |
| 6 |
Inclination sensor, status |
12H |
| 7 |
Communication line, status |
12E |
| 8 |
Glass breakage sensor, status |
11G |
| 9 |
Alarm siren, actuation |
12C |
| A1 |
Instrument cluster |
11J |
| A38/1 |
Pedestrian protection Hall sensor + engine hood ATA [EDW] switch |
20J |
| A85 |
Left front door lock |
2G |
| A85/1 |
Right front door lock |
2C |
| A85/1s1 |
Right front door rotary tumbler switch |
2D |
| A85/3 |
Left rear door lock |
8D |
| A85/3s1 |
Left rear door rotary tumbler switch |
8D |
| A85/4 |
Right rear door lock |
8D |
| A85/4s1 |
Right rear door rotary tumbler switch |
8D |
| A85s1 |
Left front door rotary tumbler switch |
2G |
| B39 |
Left rear window glass breakage sensor |
9J |
| B39/1 |
Right rear window glass breakage sensor |
9K |
| B39/4 |
Rear window glass breakage sensor |
9K |
| CAN B |
Interior CAN |
11H |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
15F |
| CAN B |
Interior CAN |
7F |
| Code 494 |
USA version |
14B |
| Code 882 |
Interior protection (only with ATA [EDW]) |
14H |
| H2 |
Left fanfare horn |
28D |
| H2/1 |
Right fanfare horn |
28D |
| H3/1 |
Alarm siren |
11C |
| H3/1 |
Alarm siren |
12C |
| LIN B4 |
Rear SAM LIN |
14G |
| LIN B4 |
Rear SAM LIN |
11D |
| M14/7 |
Central locking motor trunk lid |
8G |
| M14/7s1 |
Switches Rotary case trunk lid |
8G |
| N10/1 |
Front SAM control unit with fuse and relay module |
22G |
| N10/1kO |
Fanfare horn relay |
28H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
11E |
| N26/6 |
Interior protection and tow-away protection control unit |
15H |
| N26/6b1 |
Left interior protection transmitter |
15K |
| N26/6b2 |
Right interior protection transmitter |
14J |
| N69/1 |
Left front door control unit |
5J |
| N69/2 |
Right front door control unit |
5A |
| S62/43 |
Left engine hood contact switch |
27K |
| S62/43 |
Left engine hood contact switch |
19J |
| S88/10 |
Trunk lid emergency opening switch |
15C |
| U1 |
Valid for USA |
28D |
| U2 |
Valid for all except USA |
12B |
| U265 |
Not valid for pedestrian protection |
18J |
| U57 |
Valid for model 204.2 |
8J |
| U57 |
Valid for model 204.2 |
8A |
| U58 |
Valid for model 204.0 |
8B |
| U59 |
Valid for model 204.9 |
8J |
| U59 |
Valid for model 204.9 |
8B |
| U956 |
Valid for pedestrian protection |
19J |
