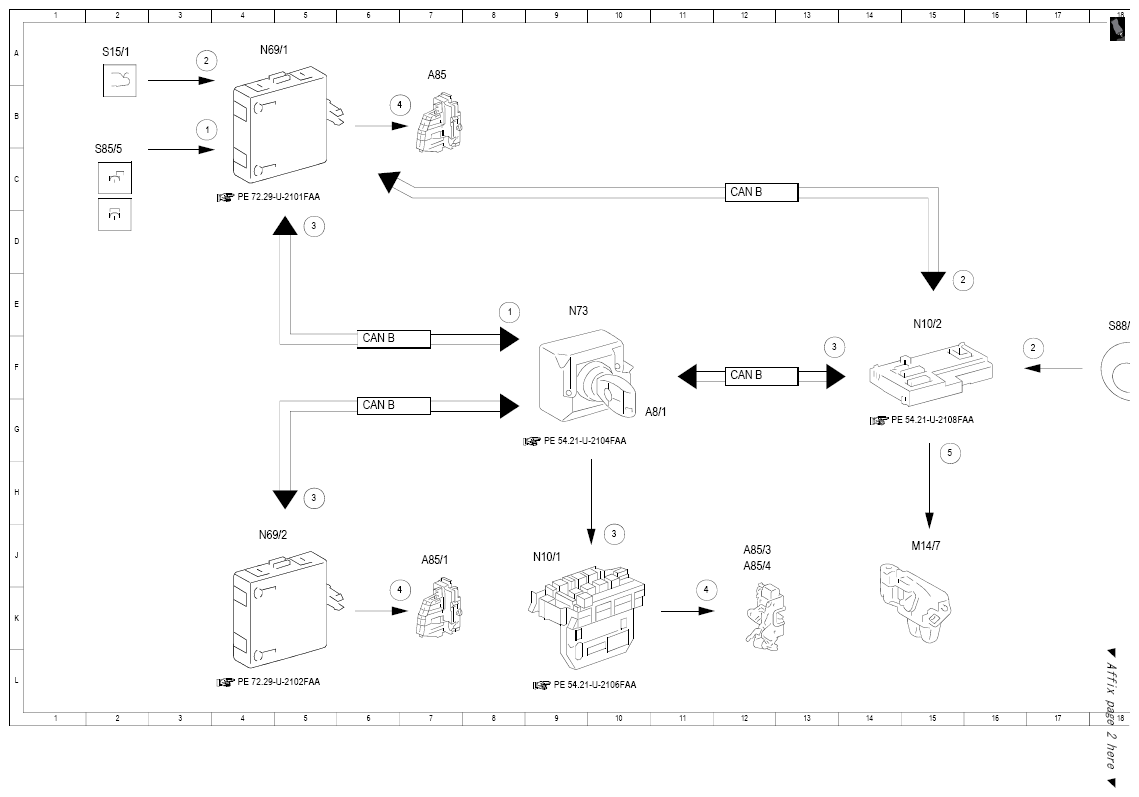

| 1 |
Lock/unlock central locking, request |
4 B |
| 1 |
Lock/unlock central locking, request |
8 E |
| 2 |
Open trunk lid, request |
4 A |
| 2 |
Open trunk lid, request |
16 D |
| 2 |
Open trunk lid, request |
17 E |
| 3 |
Open/close central locking, request |
5 H |
| 3 |
Open/close central locking, request |
5 D |
| 3 |
Open/close central locking, request |
10 H |
| 3 |
Open/close central locking, request |
14 E |
| 4 |
Central locking motor, actuation |
7 J |
| 4 |
Central locking motor, actuation |
7 B |
| 4 |
Central locking motor, actuation |
12 J |
| 5 |
Trunk lid central locking motor, actuation |
15 G |
| A8/1 |
Transmitter key |
11 G |
| A85 |
Left front door lock |
7 A |
| A85/1 |
Right front door lock |
7 J |
| A85/3 |
Left rear door lock |
12 J |
| A85/4 |
Right rear door lock |
12 J |
| CAN B |
Interior CAN |
6 F |
| CAN B |
Interior CAN |
6 E |
| CAN B |
Interior CAN |
12 F |
| CAN B |
Interior CAN |
12 C |
| M14/7 |
Trunk lid central locking motor |
15 J |
| N10/1 |
Front SAM control module with fuse and relay module |
9 J |
| N10/2 |
Rear SAM control module with fuse and relay module |
15 E |
| N69/1 |
Left front door control unit |
4 A |
| N69/2 |
Right front door control unit |
4 J |
| N73 |
Electronic ignition switch control unit |
9 E |
| S15/1 |
Trunk lid release button |
2 A |
| S85/5 |
Left front door central locking interior switch |
2 B |

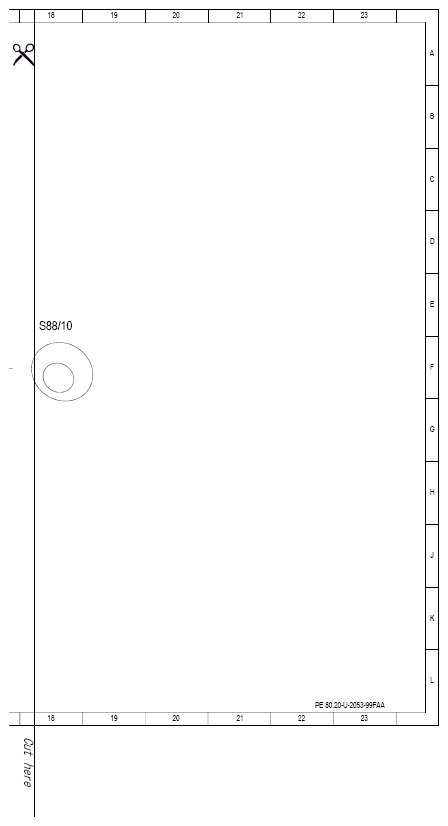

| S88/10 |
Trunk lid emergency opening switch |
18 E |
