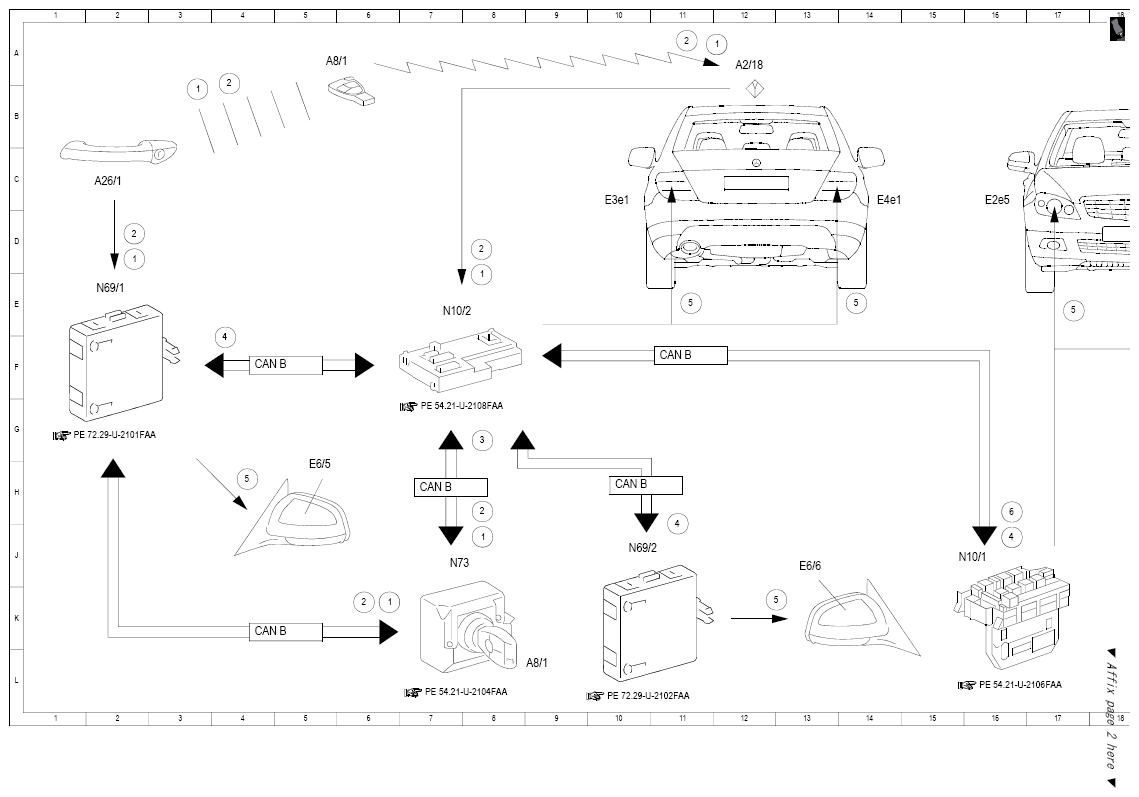

| 1 |
Access authorization code, signal |
2 D |
| 1 |
Access authorization code, signal |
3 A |
| 1 |
Access authorization code, signal |
6 K |
| 1 |
Access authorization code, signal |
8 D |
| 1 |
Access authorization code, signal |
8 J |
| 1 |
Access authorization code, signal |
12 A |
| 2 |
Panic alarm, signal |
2 D |
| 2 |
Panic alarm, signal |
4 A |
| 2 |
Panic alarm, signal |
6 K |
| 2 |
Panic alarm, signal |
8 D |
| 2 |
Panic alarm, signal |
8 H |
| 2 |
Panic alarm, signal |
11 A |
| 3 |
Panic alarm, status |
8 G |
| 4 |
Flasher frequency, signal |
4 E |
| 4 |
Flasher frequency, signal |
11 H |
| 4 |
Flasher frequency, signal |
16 J |
| 5 |
Turn signal lamp, actuation |
4 H |
| 5 |
Turn signal lamp, actuation |
11 E |
| 5 |
Turn signal lamp, actuation |
13 J |
| 5 |
Turn signal lamp, actuation |
14 E |
| 5 |
Turn signal lamp, actuation |
17 E |
| 5 |
Turn signal lamp, actuation |
20 E |
| 6 |
Interior lamp, request |
16 H |
| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
12 A |
| A26/1 |
Driver-side front door infrared remote control receiver |
2 C |
| A8/1 |
Transmitter key |
6 A |
| A8/1 |
Transmitter key |
9 L |
| CAN B |
Interior CAN |
4 K |
| CAN B |
Interior CAN |
4 F |
| CAN B |
Interior CAN |
7 H |
| CAN B |
Interior CAN |
10 H |
| CAN B |
Interior CAN |
11 F |

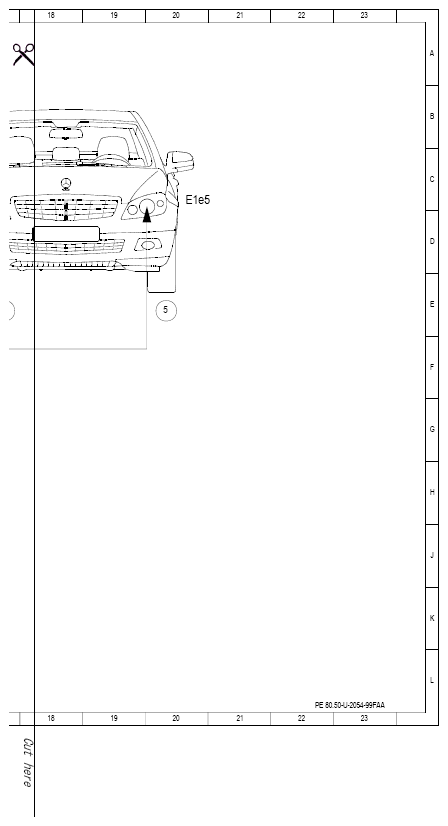

| E1e5 |
Left front turn signal lamp |
20 C |
| E2e5 |
Right front turn signal lamp |
16 C |
| E3e1 |
Left rear turn signal lamp |
10 C |
| E4e1 |
Right rear turn signal lamp |
14 C |
| E6/5 |
Left exterior mirror turn signal lamp |
5 G |
| E6/6 |
Right exterior mirror turn signal lamp |
13 J |
| N10/1 |
Front SAM control module with fuse and relay module |
16 J |
| N10/2 |
Rear SAM control module with fuse and relay module |
7 E |
| N69/1 |
Left front door control unit |
2 E |
| N69/2 |
Right front door control unit |
10 J |
| N73 |
Electronic ignition switch control unit |
7 J |
