| 1 |
Access authorization code, signal |
2 D |
| 1 |
Access authorization code, signal |
3 A |
| 1 |
Access authorization code, signal |
8 A |
| 1 |
Access authorization code, signal |
12 J |
| 1 |
Access authorization code, signal |
13 D |
| 1 |
Access authorization code, signal |
13 H |
| 10 |
Alarm siren, status |
14 D |
| 2 |
Lock central locking, signal |
2 D |
| 2 |
Lock central locking, signal |
4 A |
| 2 |
Lock central locking, signal |
7 A |
| 2 |
Lock central locking, signal |
11 J |
| 2 |
Lock central locking, signal |
13 D |
| 2 |
Lock central locking, signal |
13 H |
| 3 |
Central locking, status |
13 G |
| 4 |
Anti-theft alarm system, status |
14 C |
| 4 |
Anti-theft alarm system, status |
18 E |
| 5 |
Anti-theft alarm system indicator lamp, actuation |
22 E |
| 6 |
Engine hood anti-theft alarm system switch, status |
15 E |
| 6 |
Engine hood anti-theft alarm system switch, status |
20 D |
| 7 |
Door rotary tumbler switch, status |
4 G |
| 7 |
Door rotary tumbler switch, status |
11 E |
| 7 |
Door rotary tumbler switch, status |
14 D |
| 7 |
Door rotary tumbler switch, status |
14 G |
| 7 |
Door rotary tumbler switch, status |
18 J |
| 8 |
Trunk lid rotary tumbler switch, status |
11 F |

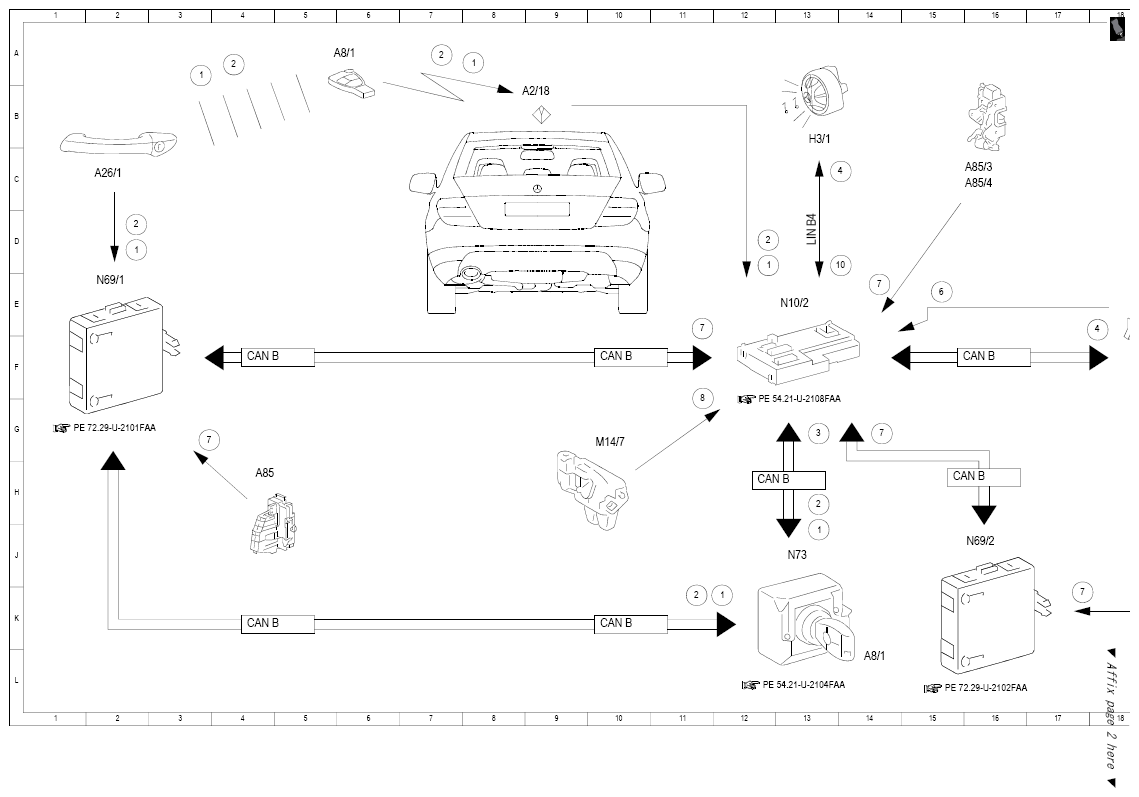

| A2/18 |
FM, AM and CL [ZV] antenna amplifier |
9 A |
| A26/1 |
Driver-side front door infrared remote control receiver |
2 C |
| A8/1 |
Transmitter key |
6 A |
| A8/1 |
Transmitter key |
14 K |
| A85 |
Left front door lock |
4 H |
| A85/1 |
Right front door lock |
19 J |
| A85/3 |
Left rear door lock |
16 C |
| A85/4 |
Right rear door lock |
16 C |
| CAN B |
Interior CAN |
4 K |
| CAN B |
Interior CAN |
4 F |
| CAN B |
Interior CAN |
10 K |
| CAN B |
Interior CAN |
10 F |
| CAN B |
Interior CAN |
12 H |
| CAN B |
Interior CAN |
15 H |
| CAN B |
Interior CAN |
16 F |
| H3/1 |
Alarm siren |
13 B |
| LIN 1 |
Instrument panel LIN |
21 E |
| LIN B4 |
Rear SAM LIN |
13 D |
| M14/7 |
Trunk lid central locking motor |
10 G |

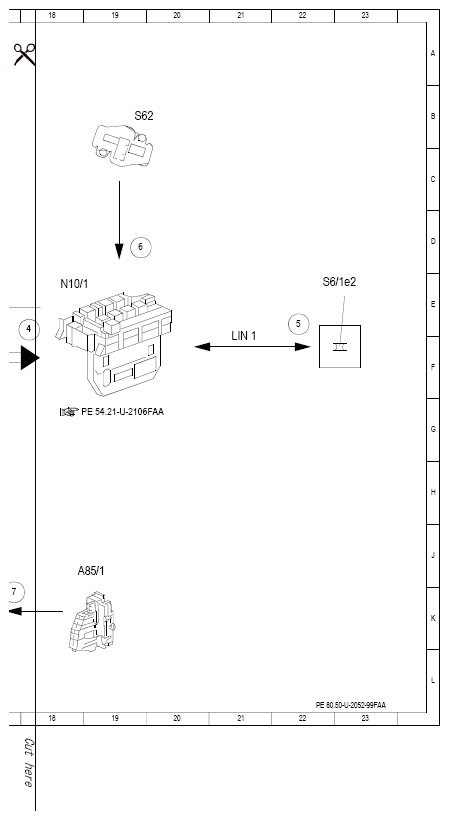

| N10/1 |
Front SAM control module with fuse and relay module |
18 E |
| N10/2 |
Rear SAM control module with fuse and relay module |
13 E |
| N69/1 |
Left front door control unit |
2 D |
| N69/2 |
Right front door control unit |
16 J |
| N73 |
Electronic ignition switch control unit |
13 J |
| S6/1e2 |
Anti-theft alarm system indicator lamp |
22 D |
| S62 |
Engine hood anti-theft alarm system switch |
19 B |
