Prepare Door Hinge Bracket For Installation - Ar64.30-D-0850-02H
The following operation steps are shown on the left door hinge bracket (1) for model 906.733 and they must be performed in a similar manner for any damage to the right side.

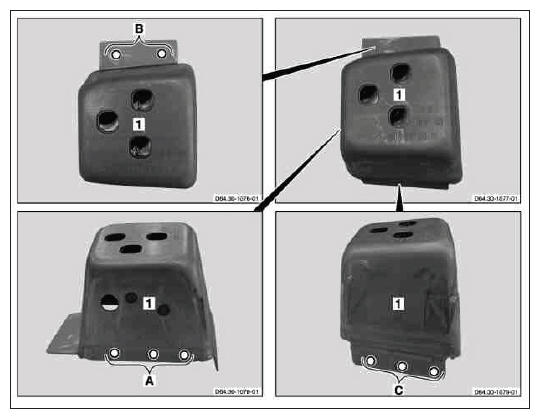

- Punch holes on door hinge bracket (1) with Ø 6 mm (areas A, B and C).

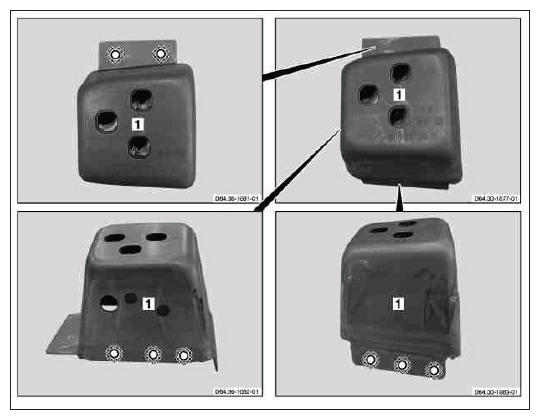

- Grind crosshatched areas on door hinge bracket (1) down to bare metal around the holes.
