Preparing Reinforcement Plates For Installation - Ar62.20-D-1240-08H

Model 906 with code CV1 (Pre-installation for winter service vehicle)

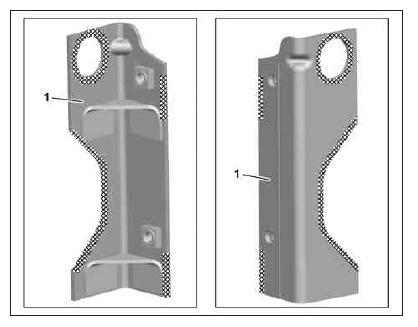

The following operation steps are shown on the left reinforcement (1) and must be performed analogously on the right reinforcement (1).

1. Grind mating surfaces on reinforcement (1) down to bare metal in the crosshatched areas.
2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA
