Prepare WAISTRAIL Panel For Installation - Ar62.40-D-6025-03H

The following operation steps are shown on component for model 906.633.

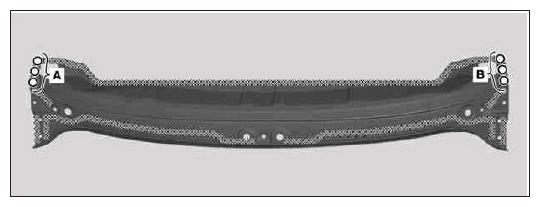

1. Punch 6 mm dia. holes in dash support paneling (areas A and B).
2. Grind crosshatched areas down flat on waistrail panel.

   Courtesy of MERCEDES-BENZ USA

3. Grind crosshatched areas on waistrail panel (A and B) down to bare metal around holes.
4. Coat insides of spot weld flanges with zinc dust paint.
