Remove/install center trunk paneling - AR68.30-P-4810V

MODEL 171.4

Bottom center trunk paneling

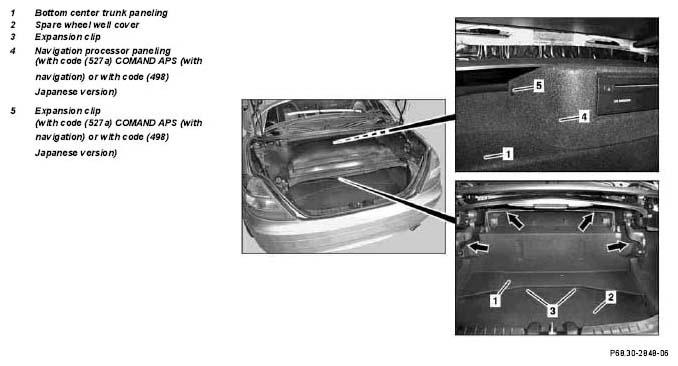

Fig 1: Identifying Center Trunk Paneling Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open retractable trunk partition	See Operating Instructions
2	Remove spare wheel well (2) from trunk
3.1	Remove left and right expansion clip (5) from navigation processor paneling (4) and remove navigation processor paneling (4)	On vehicles with code (527a) COMAND APS (with navigation) or code (498) Japanese version Installation:  Replace damaged expansion clips (5).
4	Remove expansion clips (3)	Installation:  Replace damaged expansion clips (3).
5	Loosen bottom center trunk paneling (1) from guides (arrows) and pull toward rear	Installation:  Ensure that bottom trunk center paneling (1) is seated properly in guides (arrows).
6	Remove bottom center trunk paneling (1) from trunk
7	Install in the reverse sequence
