Remove/install central clutch operator - AR26.40-P-0345V

TRANSMISSION 716.631 /638 /654 /664 /669

Transmission removed

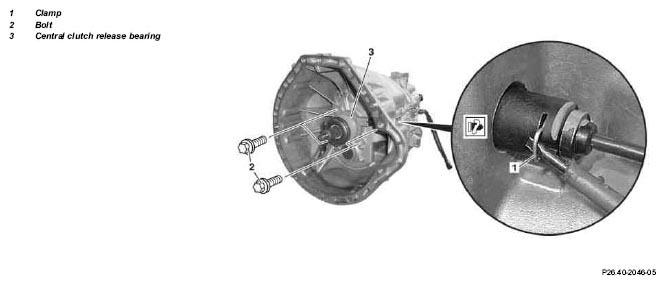

Fig 1: Identifying Central Clutch Operator Remove/Install Components - Transmission Removed

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	-
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
Remove transmission			AR26.10-P-0020V
	Clean
1	Clean area around line connection of central clutch release bearing (3).	LU cleaner	*BR00.45-Z-1028-04A
2	Lever clamp (1) out of line connection.
3	Unscrew bolt (2)		*BA26.40-P-1001-01C
4	Remove central clutch release bearing (3).	Installation: Install new O-ring of line connection.
5	Inspect central clutch release bearing (3)	Check central clutch release bearing (3) for noises, rough operation, leakage and wear, replace if necessary.
6	Install in the reverse order

BOLT OF CENTRAL RELEASE BEARING ON CLUTCH HOUSING TIGHTENING TORQUE

Number	Designation		Transmission 716.6
BA26.40-P-1001-01C	Bolt of central release bearing on clutch housing	Nm	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	LU cleaner	Adolf Wurth GmbH & Co. KG
