Prop front axle carrier with inspection pit lift or assembly lift - AR33.10-P-0100-03V

WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A Transmission platform
WE58.40-Z-1030-11A Transmission jack
  1. Mount passenger car transmission platform (01) on telescopic/transmission jack.
  2. Position the passenger car transmission platform (01) with telescoping lifter and transmission lifter under the front axle carrier.
  3. Secure front axle with tensioning strap to prevent it from falling down.

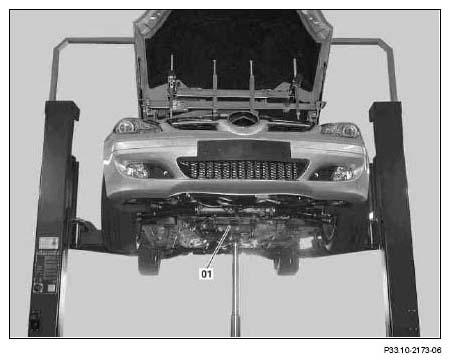

    Fig 1: Identifying Passenger Car Transmission Platform On Telescopic/Transmission Jack
    G05027355Courtesy of MERCEDES-BENZ USA
