Replace window rubber spacers - AR67.10-P-1000-02V

  1. Press spacer bracket "A" into gap on upper body flange.
  2. Glue rubber window spacers "B" onto elevations on bottom body flange.

    IMPORTANT Do not remove protective foil

    IMPORTANT Location of spacer bracket and rubber window spacers (see figure at top right).

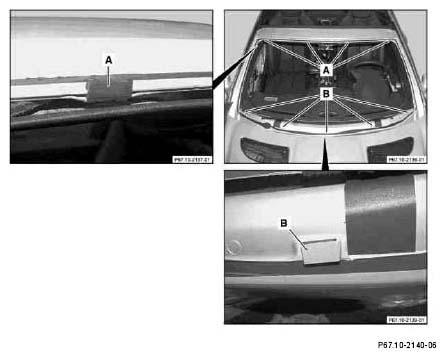

    Fig 1: Identifying Spacer Bracket And Rubber Window Spacers
    G05028322Courtesy of MERCEDES-BENZ USA
