Remove/install mirror glass - AR88.70-P-9020V

MODEL 171.4

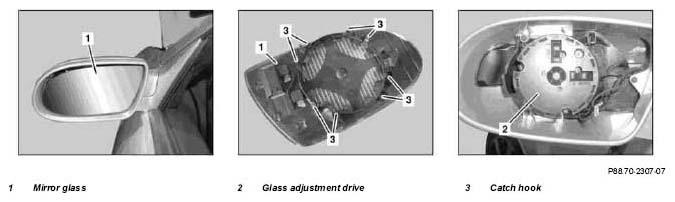

Fig 1: Identifying Mirror Glass Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unclip mirror glass (1) from mirror adjustment drive (2).	Unclip carefully, danger of breaking mirror glass (1). Installation:  Ensure that all catch hooks (3) are arrested on mirror adjustment drive (2).
2	Disconnect electrical connectors from rear of mirror glass (1) and remove mirror glass (1)
3	Install in the reverse order
