Removing and installing fog lamps - AR82.10-P-1835V
MODELS 171.4

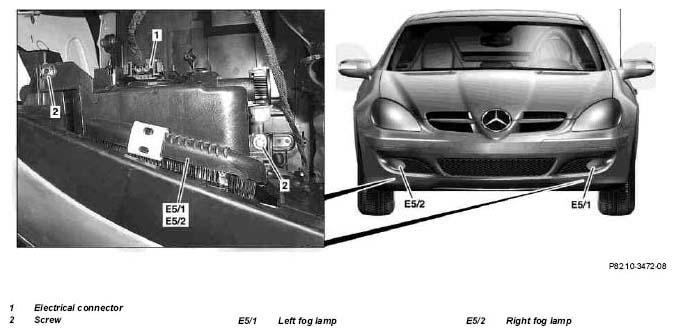

Shown on the left fog lamp (E5/1)
| Remove/Install | |||
|---|---|---|---|
| 1 | Remove bottom engine compartment paneling at front | AR61.20-P-1105V | |
| 2 | Disconnect electrical connector (1). | ||
| 3 | Remove the screws (2) from the left fog lamp (E5/1) or the right fog lamp (E5/2) | ||
| 4 | Install in the reverse order | ||
| 5 | Check the adjustment of the left fog lamp (E5/1) and the right fog lamp (E5/2) and correct, if necessary | ||
| Check and correct headlamp adjustment | AP82.10-P-8260V |
