Remove/install headlamp unit holder - AR82.10-P-4740V
MODEL 171.4

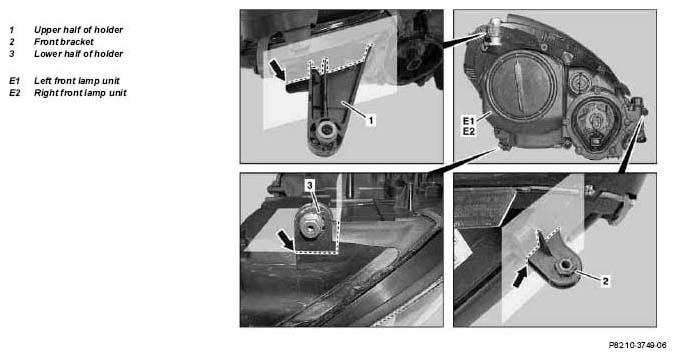

Shown for the left front lamp unit

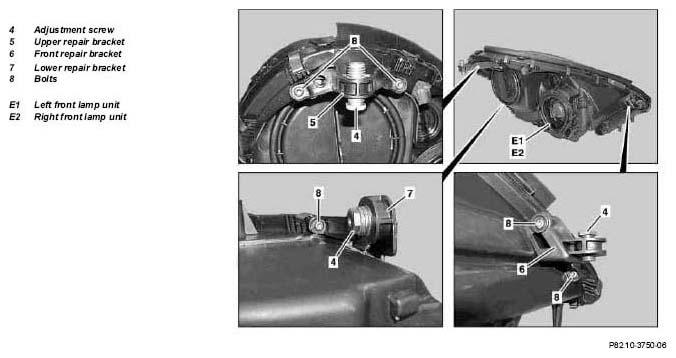

Shown for the left front lamp unit
| Remove | |||
|---|---|---|---|
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and undeburred vehicle parts. Deburr replacement panels. |
- | |
| 1 | Remove left front lamp unit (E1) or right front lamp unit (E2) | When removing left front lamp unit (E1) and right front lamp unit (E2). | AR82.10-P-4730V |
| When removing left front lamp unit (E1) or right front lamp unit (E2). | AR82.10-P-4730VA | ||
| 2 | Detach housing vent hose next to the upper bracket (1) | ||
| 3 | Mark separation points (arrows) on the upper bracket (1), on the front bracket (2) and on the lower bracket (3) | ||
| 4 | Detach upper bracket (1), front bracket (2) and lower bracket (3) as close as possible to the housing wall of the left front lamp unit (E1) or the right front lamp unit (E2) | ||
| Body saw (electric/pneumatic) | *WE58.40-Z-1004-03A | ||
| 5 | Clean separation points and deburr | ||
| Installing | |||
| 6 | Adjust adjusting bolts (4) on the upper repair bracket (5), on the front repair bracket (6) and on the lower repair bracket (7) based on the reach of the adjusting bolts (4) of the detached upper bracket (1), front bracket (2) and lower bracket (3) | ||
| 7 | Position upper repair bracket (5), front repair bracket (6) and lower repair bracket (7) on the left front lamp unit (E1) or on the right front lamp unit (E2) and screw in bolts (8) | ||
| 8 | Install left front lamp unit (E1) or right front lamp unit (E2) | When installing left front lamp unit (E1) and right front lamp unit (E2). | AR82.10-P-4730V |
| When installing left front lamp unit (E1) or right front lamp unit (E2). | AR82.10-P-4730VA |
WORKSHOP EQUIPMENT
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |
