Remove/install glove compartment lamp - AR82.20-P-0114V
MODELS 171.4
| Remove/Install | |||
|---|---|---|---|

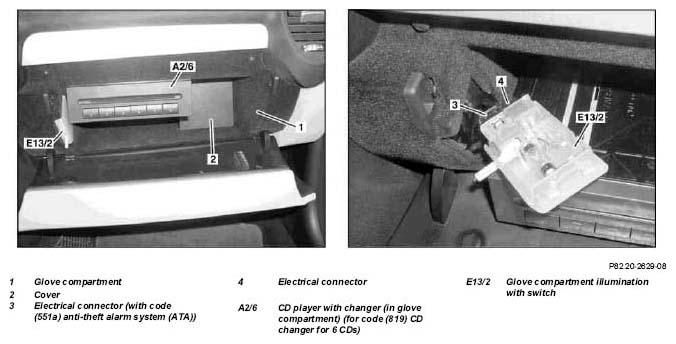

| 1 | Open glove compartment (1) | ||
| 2 | Unclip cover (2) by hand and remove from compartment (1) | ||
| 3.1 | Pull CD player with changer (in glove compartment) (A2/6) towards rear and put aside in glove compartment (1) such that glove compartment illumination with switch (E13/2) can be removed | In vehicles with code (819) CD changer for 6 CDs | |
| 4 | Unclip and remove glove compartment illumination with switch (E13/2) from glove compartment (1) with mounting wedge | Fig 2 | |
| 5.1 | Separate electrical plug connection (3) | In vehicles with code (551a) anti-theft alarm system (ATA) | |
| 6 | Disconnect electrical connector (4) and remove glove compartment illumination with switch (E13/2) | ||
| 7 | Install in the reverse order |
