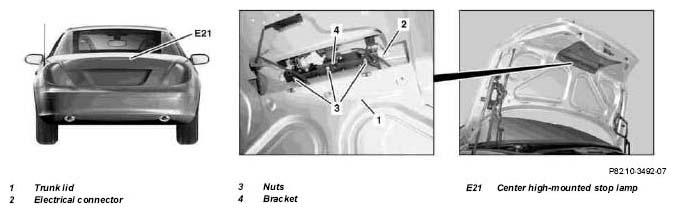

Remove/install center high-mounted stop lamp - AR82.10-P-5375V
MODELS 171.4
| Remove/Install | ||
|---|---|---|
| 1 | Remove paneling from trunk lid (1) | AR68.30-P-8150V |
| 2 | Disconnect electric connector (2) | |
| 3 | Unscrew nuts (3) | |
| 4 | Remove the bracket (4) from the trunk lid (1) | |
| 5 | Remove the center high-mounted stop lamp (E21) outward from the trunk lid (1) | |
| 6 | Install in the reverse order |
