Retrofit illuminated door sill molding - AZ82.20-P-0001V: Notes
MODELS 171
| Remove | |||
|---|---|---|---|
| Risk of death. Death may result if contact is made with parts carrying high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not perform any work on such components. | ||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by explosive gas. Risk of poisoning and caustic burns caused by swallowing battery electrolyte. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. |
||
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003V | |||
| Notes on battery | All models | ||
| 3 | Remove left and right door sill moldings | ||
| 4 | Pull off rubber door seal near the B-pillar on both sides at the front | ||
| 5 | Remove center console | ||
| 6 | Remove the left and right seats | ||
| 7 | Remove the trim cover from the rear interior wall | ||
| 8 | Open up the trim cover in the trunk | ||
| 9 | Open the fuse box at the rear SAM control unit with fuse and relay module (N10/2) | ||
| 10 | Remove the left and right seat belt carriers | ||
| Install | |||

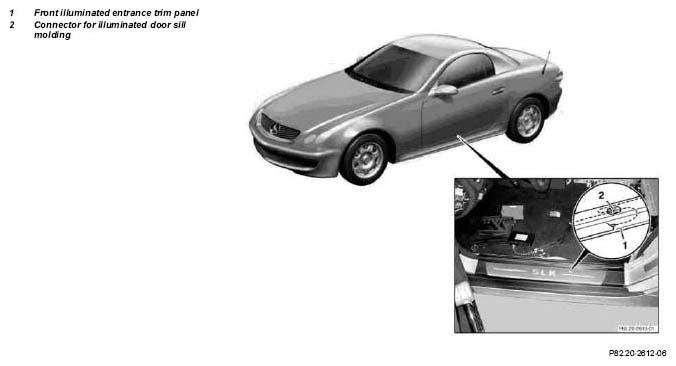

| 11 | Route cable harness for illuminated entrance trim panel | AZ82.20-P-0001-02V | |
| 12 | Perform function check | ||
| 13 | Fit remaining parts to vehicle |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 689 00 84 | Illuminated entrance trim panels with cable harness | 1 |
| Also available with AMG lettering | ||
| B6 602 10 27 | Illuminated door sill moldings with wiring harness and lettering "AMG" | 1 |
