Exterior lights, location of components - GF82.10-P-0003-02RC

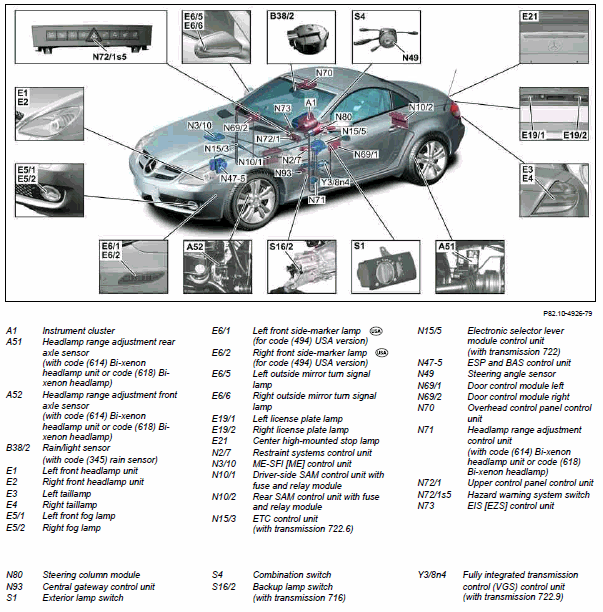

Fig 1: Exterior Lights Component Locations
G00541399Courtesy of MERCEDES-BENZ USA
