Fuel pump relay, location - GF54.15-P-4105-01RA

Model 230

The fuel pump relay is located behind the front passenger's seat under the right-hand luggage box. It is located on the rear fuse and relay module.

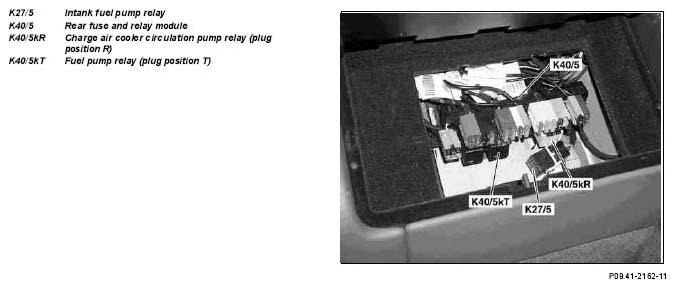

Fig 1: Identifying Fuel Pump Relay Location
G05075911Courtesy of MERCEDES-BENZ USA
