PTS switch, location/task - GF54.65-P-4101R: Notes

MODEL 230 with CODE (220a) Parktronic system (PTS)

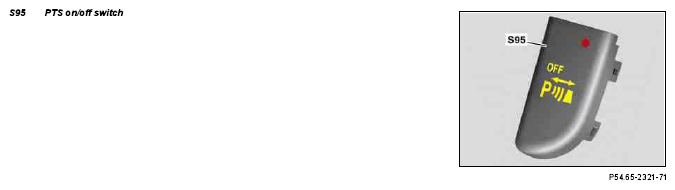

Fig 1: Identifying PTS Switch Location
G05075974Courtesy of MERCEDES-BENZ USA
  PTS switch, location   GF54.65-P-4101-01R
  PTS switch, task Switching the PTS off/on manually. The light emitting diodes in the switch light up when the PTS is switched off  .
