Fuse assignment of rear fuse and relay box - GF54.15-P-1256-01RIT

Fig 1: Identifying K40/5 Rear Fuse And Relay Module

Courtesy of MERCEDES-BENZ USA

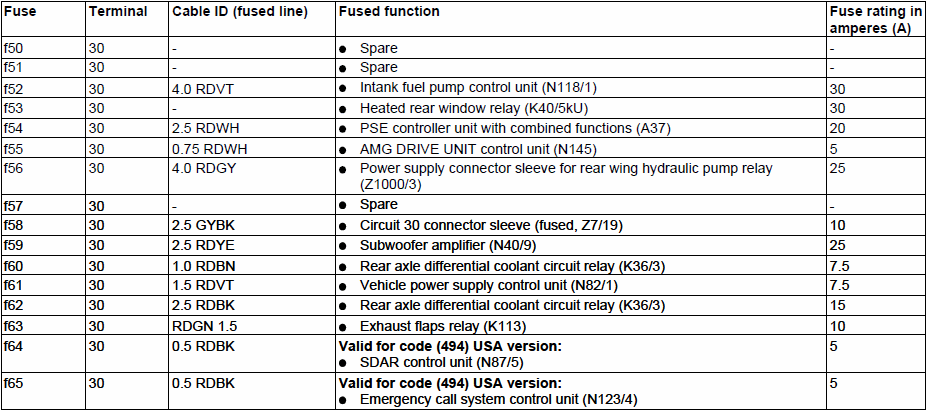

Fuse rating in amperes (A) for fuses F50 through F65:

Fig 2: Fuses F50 Through F65

Courtesy of MERCEDES-BENZ USA

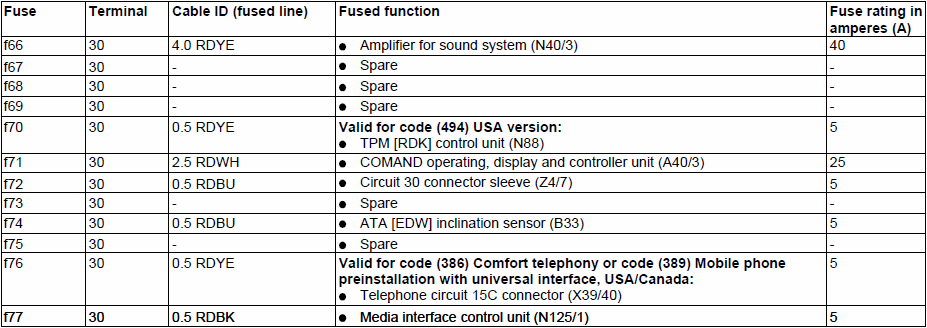

Fuse rating in amperes (A) for fuses F66 through F77:

Fig 3: Fuses F66 Through F77

Courtesy of MERCEDES-BENZ USA
